3NH TS8296 Colorimeter φ 25.4/15/8/4mm
Measurement report, equipped with 25.4mm, 15mm, 8mm, 4mm four measurement diameters, can be used for fluorescence sample measurement, Delta E * ab < 0.01, Delta E * ab < 0.12; compatible with SCI/SCE.
Model：
TS8296
3NH TS8296 Desktop ColorimeterSPEC
3NH TS8296 Desktop ColorimeterDetails
3NH TS8296 Desktop ColorimeterPacking list
- SKU
- NB039087
- Lighting method
- Reflection: D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; includes UV/exclude UV measurement; Transmission: D/0 (diffuse illumination, 0 ° direction reception) SCI/SCE measurement; includes UV/exclude UV measurement;
- Lighting method 2
- Haze (ASTM D1003); meets CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- Φ154mm
- lighting source
- 360~780Nm combined LED light source, 400nm cut-off light source, 420nm cut-off light source
- spectroscopy
- Concave grating spectroscopy
- Sensor
- 256 pixel dual array CMOS image sensor
- Measurement Wavelength range
- 360~780nm
- wavelength interval
- 10nm
- Half bandwidth
- 5nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- Reflection: φ 30mm/φ 25.4mm, φ 18mm/φ 15mm, φ 10mm/φ 8mm, φ 6mm/φ 4mm; Transmission: φ 25.4mm/φ 4mm
- Light-containing method
- Reflection SCI/SCE, Transmission SCI/SCE
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
- color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chroma metrics
- WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), homochromatic index Mt, colour fastness, color fastness, force, coverage
- Other chroma metrics 2
- APHA/Hazen/Pt-Co (platinum cobalt index), Gardner index, 8 degree gloss, 555 shade classification, haze (ASTM D1003), Saybolt (Seibert index), ASTM D1500 color code, Chinese Pharmacopoeia color code
- Viewing Angle
- CIE 2°/10°
- observation light source
- D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
- display mode
- Light spectrum plots/data, sample chromatic values, color difference values/plots, chromaticity plots, Color simulation, pass/fail results, Color bias
- Measurement time
- Approximately 2.4s (approximately 5s for simultaneous SCI/SCE testing)
- Sexual repeability
- Spectroscopic reflectance: φ 25.4mm/SCI, standard deviation within 0.04%; chromatic value: φ 25.4mm/SCI, Delta E * ab within 0.01 (after instrument preheating correction, the average value of whiteboard 30 times at intervals of 5s measurement)
- Sexual repeability 1
- Spectral transmittance: φ 25.4mm/SCI, standard deviation within 0.05%; chromatic value: φ 25.4mm/SCI, Delta E * ab within 0.02 (after instrument preheating correction, the average value of whiteboard 30 times at intervals of 5s measurement)
- stand-alone difference
- ΔE*ab<0.12(SCI)
- Dimensions
- 370*300*200mm
- Weight
- About 9.6kg
- Power Supply
- DC 24V, 3A power adapter Power Supply
- Lifetime of lighting source
- More than 3 million measurements in 5 years
- Display
- TFT true color 7inch, capacitive touch screen
- Data Interface
- USB, Bluetooth ® 5.0, print serial port
- data storage
- 5000 master standards, 40,000 samples (SCI/SCE counts as one data)
- operating language
- Simplified Chinese, Traditional Chinese, English, (customizable German, French, Spanish)
- Operating environment
- 0~40℃（32~104°F）
- Storage environment
- -20~50℃（-4~122°F）
- optional accessories
- Microprinters, instrument inverted test fixtures, culture dishes
TS8296
Desktop Colorimeter
Measurement report, equipped with 25.4mm, 15mm, 8mm, 4mm four measurement diameters, can be used for fluorescence sample measurement, Delta E * ab < 0.01, Delta E * ab < 0.12; compatible with SCI/SCE.
Introduction
Desktop Spectrophotometer TS8296 is a Spectrophotometer developed by 3nh using its own core spectrometry technology. It uses a dual-array CMOS image sensor with higher sensitivity and wider spectral response range, making the test more accurate. The repeatability ÎE*ab of the TS8296 desktop Spectrophotometer is easily controlled within 0.01, and the inter-stage difference ÎE*ab is controlled within 0.12. The data is stable and reliable, and can be used for accurate color analysis and transmission in the laboratory.
Applications
The TS8296 desktop Spectrophotometer is equipped with four measuring apertures of 25.4mm, 15mm, 8mm and 4mm, which can adapt to more samples to be measured and meet the color transmission and quality of reflective samples and transparent samples in plastic electronics, paint and ink, textile and clothing printing and dyeing, printing and other industries. In terms of control; it can be used for fluorescence sample measurement.

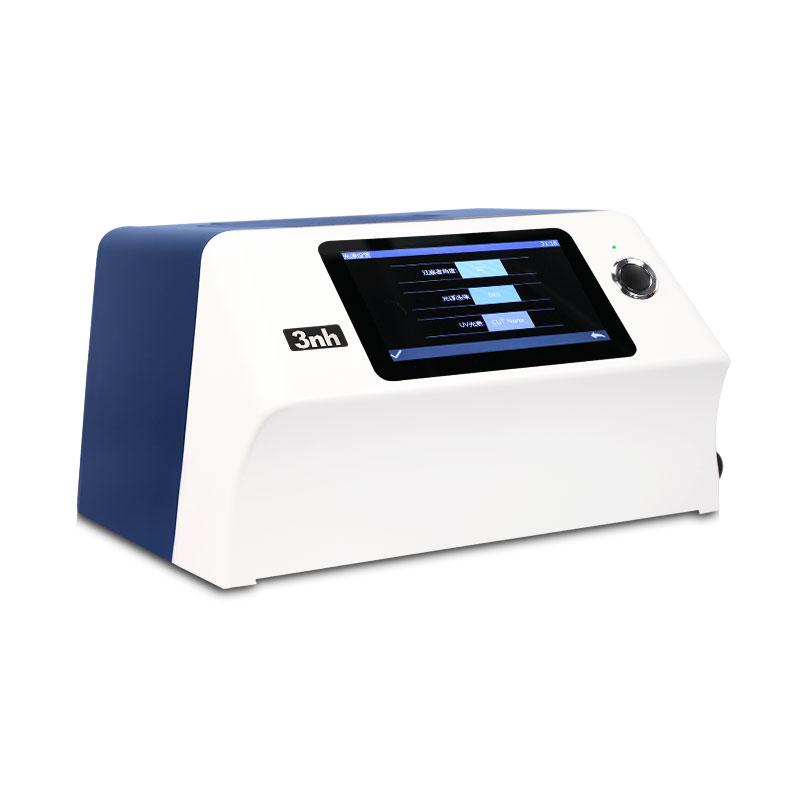

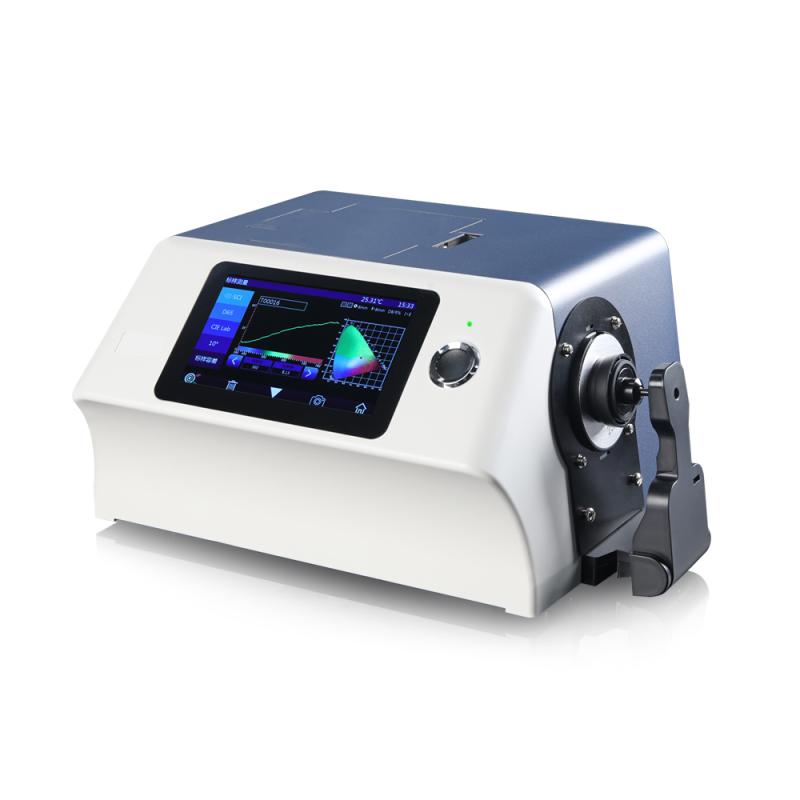

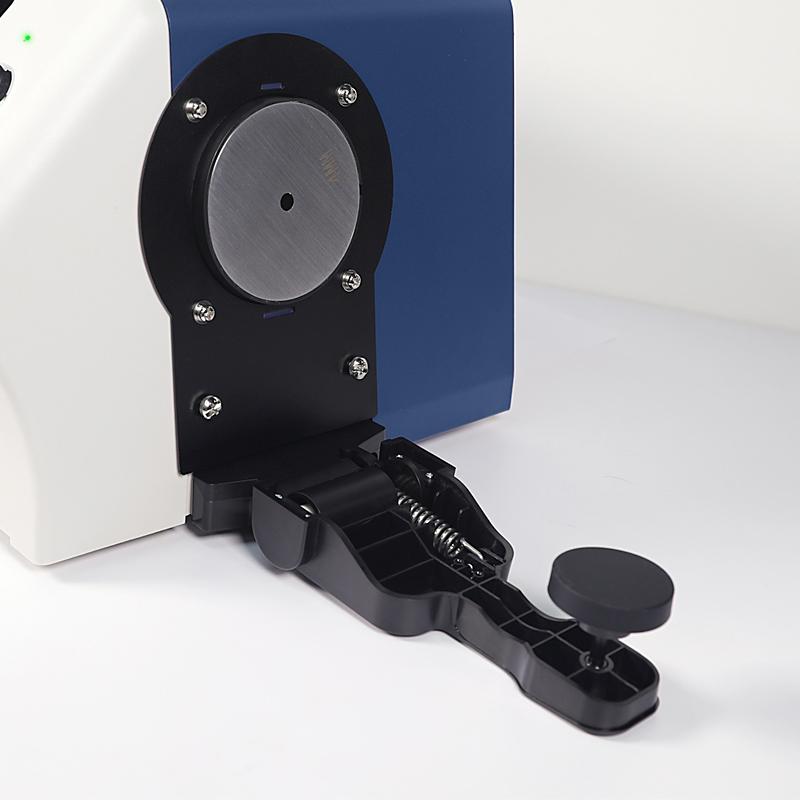

Instrument display diagram
Standard accessories diagram
FAQ
QDesktop high-precision color difference analyzer
Used for measurement of film transmittance, reflectance, chroma, color gamut
A
Both of these can be satisfied.
QWant a color difference meter that can measure liquid Color, measure various Color liquids, plant flower extracts
A
YS-8296 is OK.
