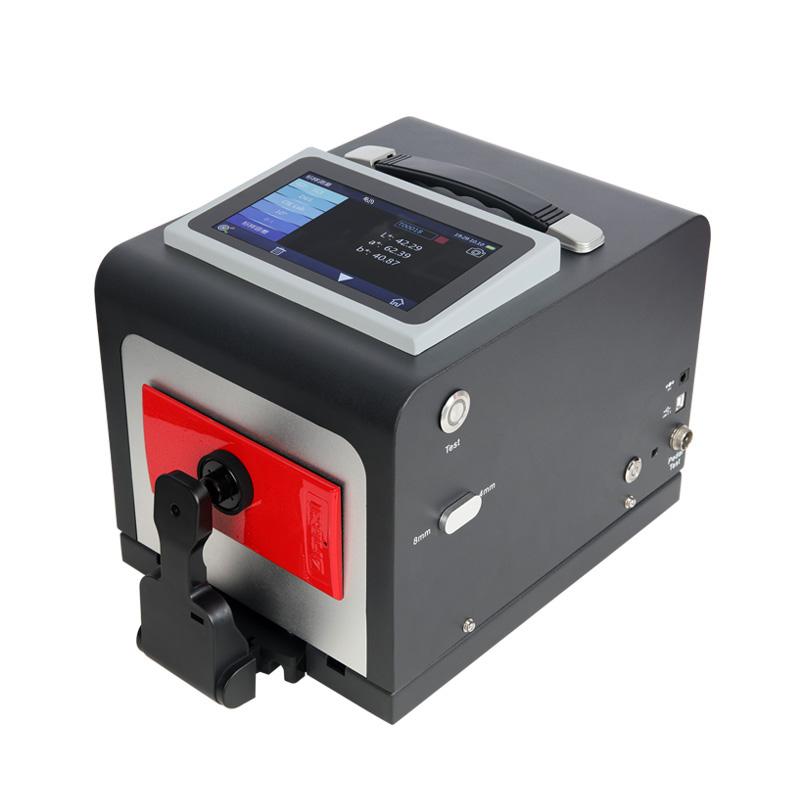

3NH TS8450 traffic road sign Colorimeter φ 8mm caliber
SE
TS8450（Φ8mm）
3NH TS8450（Φ8mm） Desktop ColorimeterSPEC

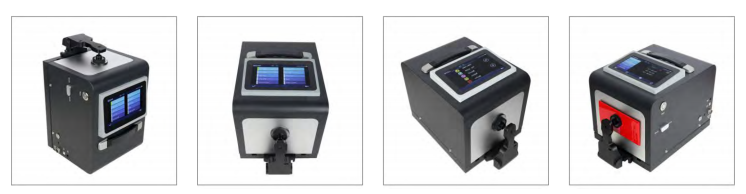

3NH TS8450（Φ8mm） Desktop ColorimeterDetails
3NH TS8450（Φ8mm） Desktop ColorimeterPacking list
- SKU
- NB039089
- Lighting method
- 45/0 (45 annular uniform illumination 0 ° reception); conforms to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- F40mm
- lighting source
- Light spectrum LED light source, UV light source
- Spectroscopic method
- Plane grating spectroscopy
- sensor
- 256-Pixel dual array CMOS image sensor
- Measurement Wavelength range
- 400~700nm
- wavelength spacing
- 10nm
- Half Bandwidth
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- F8mm / F10mm
- Light-containing method
- 45/0
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chromaticity indicators
- WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Isochromatic Spectrum Index Mt, lightfastmess, color fastness, force, coverage, 555 hue classification
- Viewing Angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
- display mode
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Measurement time
- About 1.8s
- Sexual repeability
- Chromatic value: MAV/SCI, ΔE * ab within 0.02 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-station difference
- ΔE * from < 0.15 (MAV / SCI)
- Measurement method
- Single measurement, average measurement (2~ 99 times)
- Positioning method
- /
- size
- 370*240*260mm
- Weight
- About 7.8kg
- Power Supply
- DC 24V, 3A power adapter Power
- Lighting source life
- 5 years more than 3 million measurements
- Display
- TFT true color 7.0inch, capacitive touch screen
- Data Interface
- USB, Bluetooth ® 5.0, trigger switch interface
- Store data
- 1000 master standards and 30,000 samples
- Operating language
- Simplified Chinese, English, Traditional Chinese
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- Optional accessories

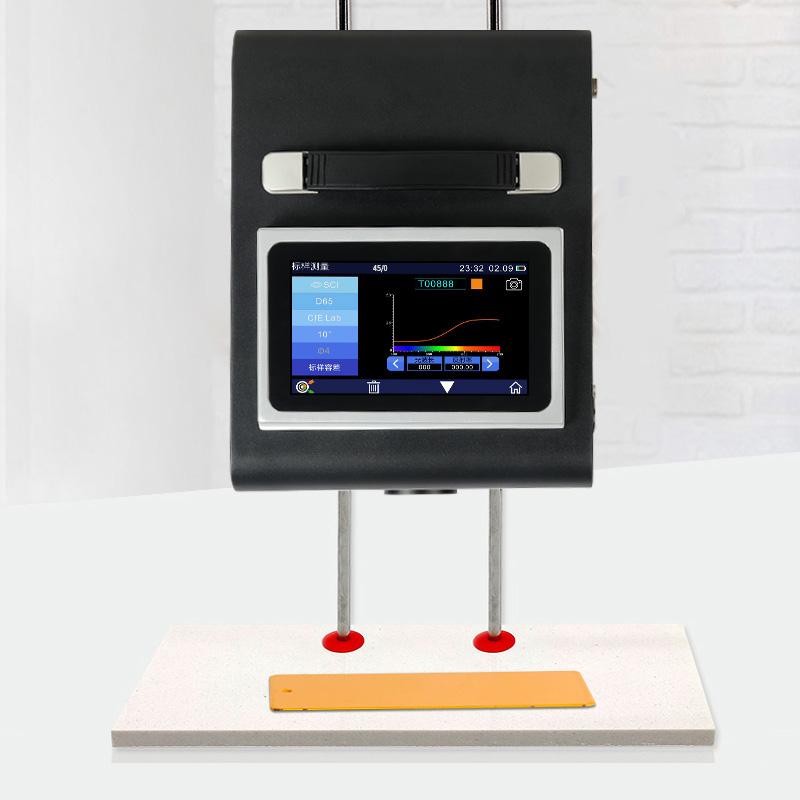

- Micro printer, foot switch, swirl/spin stand
product description
TS8450 is a portable desktop Spectrophotometer with a 45/0 optical structure. It adopts a 256-pixel dual-array CMOS image sensor and an imported whiteboard. It also takes into account the measurement speed and the convenience of operation. The repeatability of the instrument ΔE*ab is easily controlled within 0.02, and the inter-stage difference ΔE*ab is controlled within 0.15. The measurement is accurate and can be used for accurate analysis and transmission of colors in the laboratory. TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.
Applications
TS8450 Portable Desktop Spectrophotometer is equipped with a single customized Φ18/8/4mm measuring aperture, which is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescent sample measurement. In addition, the TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.
Advantages
High hardware configuration: 7 o'clock TFT pure color capacitive touch screen; Bluetooth 5.0; planar grating light splitting;
Stable measurement: 256-pixel dual-array CMOS image sensor;
Color transfer : measure the reflection and transmission spectrum of the sample, the Lab data is accurate, and can be used for color matching and color transfer;
Measurement accuracy : temperature monitoring and compensation, built-in temperature sensor, monitoring and compensation of the test environment, to ensure accurate measurement results;

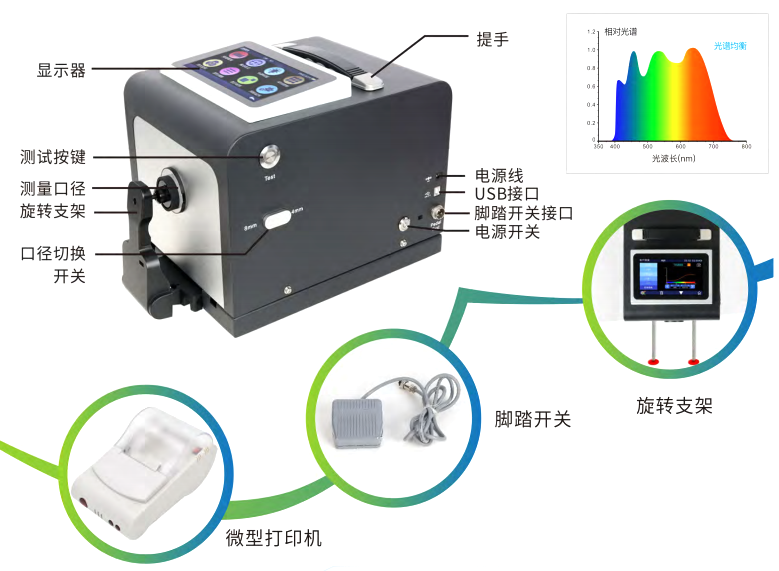

Product Structure
