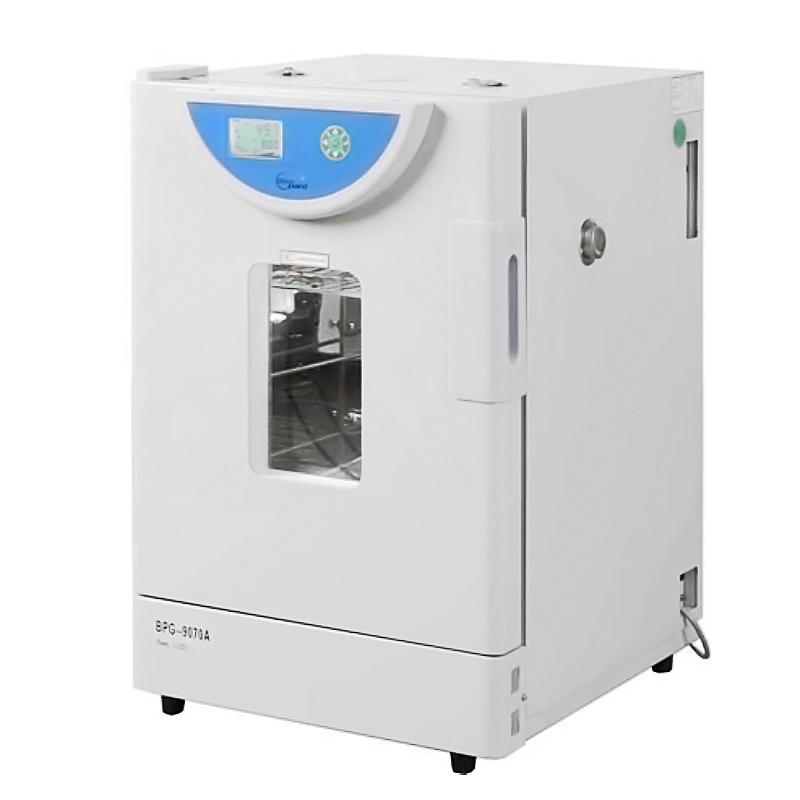

YIHENG BPG-9070A Precision Forced Air Drying Oven Input Power 1100W

BPG-9070A

Drying Oven

Power supply Voltage AC 220V 50Hz, input Power 1100W, Temperature range RT + 10~200 ℃/RT + 10~250 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Temperature uniformity +/- 2.5%, shelf (std.) 2pcs.

Introduction of BPG-9070A precision Forced Air Drying Oven

Yiheng BPG-9070A precision Forced Air Drying Oven is a precision Forced Air Drying Oven with a large LCD display. The temperature control range is 10~200 degrees Celsius, and the temperature resolution is 0.1 degrees Celsius. BPG-9070A precision Forced Air Drying Oven has an input power of 1100W and a volume of 80L.

Features and advantages

1. Humanized design

● Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand, easy to observe and operate.

● BPG-9070A precision Forced Air Drying Oven adopts mirror stainless steel liner, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for the cleaning work of the studio.

● The left side of the cabinet is equipped with a test hole with a diameter of 25mm, which can be wired arbitrarily according to the needs of the place where it is placed.

2. Self-diagnosis function

● When the BPG-9070A precision Forced Air Drying Oven breaks down, the LCD will display the failure information, and the fault point can be seen at a glance.

3. Multi-segment programmable controller (optional)

● Microcomputer program controller, time and heating rate, can conduct heating and drying test at a very fast speed.

● It can preset 7 sections and 63 steps programmable, each section has 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The startup and shutdown time can be preset, and the speed of the circulating fan is adjustable.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

4. Convenient data processing (optional)

● BPG-9070A precision Forced Air Drying Oven can be connected to a printer, 485 communication interface or USB data transfer interface (U disk), and record temperature , providing a strong guarantee for data storage and playback during the experiment.

5. Safety function

● Independent temperature limit alarm system, and sound and light alarm to remind the operator to ensure safe operation without accidents. (optional)

● High or low temperature and over-temperature alarm.

Optional

1. Multi-segment programmable temperature controller

2. Embedded printer

3. Independent temperature limit controller

4. RS485 interface and communication software

5. Wireless alarm system (SMS alarm system)

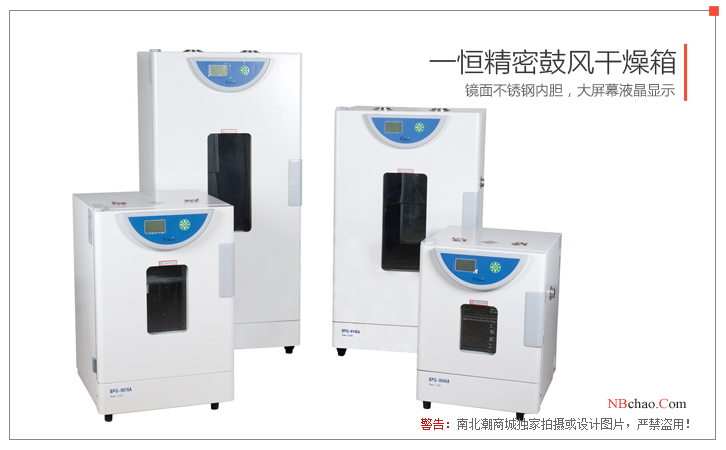

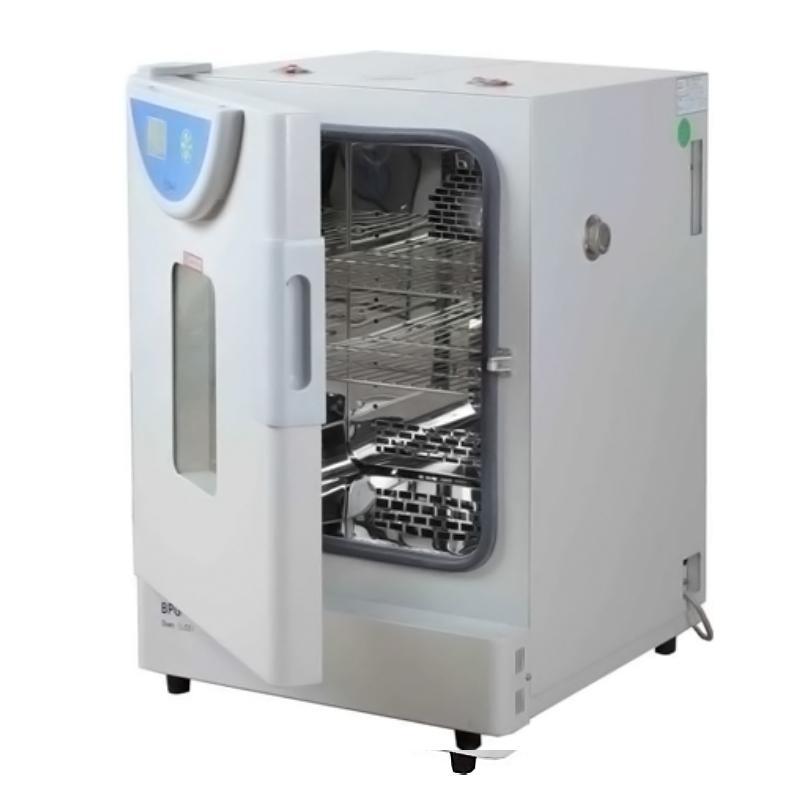

Pictures

Packing list：host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
