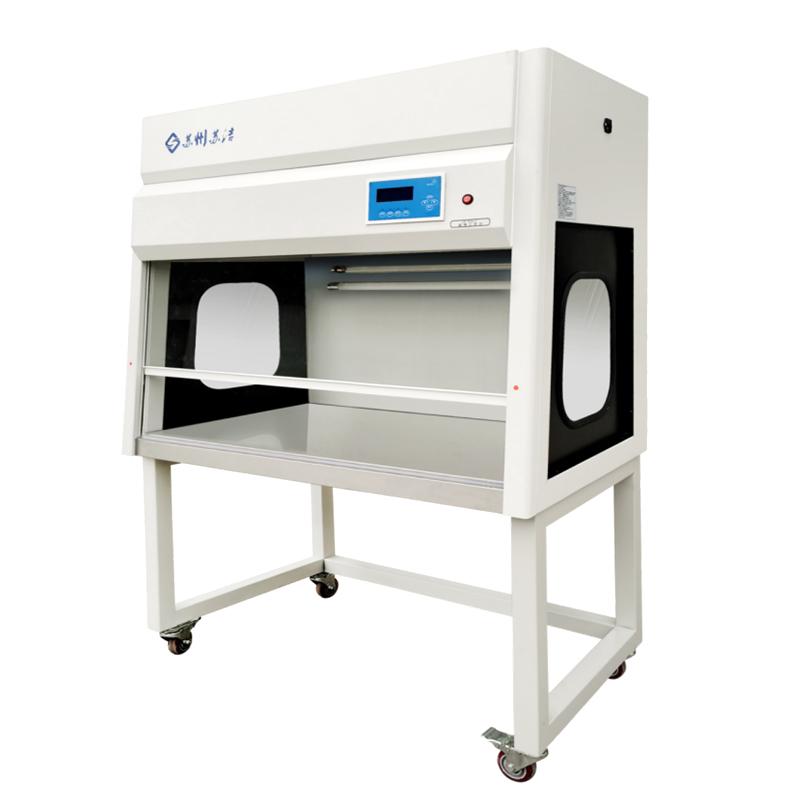

SuJie ZNC-1500 double single-sided superclean bench 1400 × 580 × 520mm

ZNC-1500

Clean workbench (double single side)

Double single-sided vertical flow, working area 1400 × 580 × 520mm, ISO 5 (Class 100) cleanliness class, 40w fluorescent lamp/UV Lamp, aluminum frame baffle-free high-efficiency filtrator, equipped with filtrator failure and damage and blocking alarm technology.

Features

* The outer cabinet adopts cold-rolled steel plate spraying process, and the appearance is finely sprayed, which can effectively inhibit the growth of bacteria on the surface of the cabinet.

* It adopts an effective filter with an aluminum frame without a partition, and the filtration efficiency is 99.995% (≥0.3μm particles). The material of the filter membrane is borosilicate glass fiber without a partition.

* The control system adopts intelligent LCD large-screen display, electronic stepless Voltage regulation and speed regulation, which is more convenient to use. The LCD can display system parameters such as working area temperature, downdraft, and filter service life. If set, the blue display will display the numbers of various parameters.

* Using high-quality centrifugal fan, low noise, low power consumption, the fan comes with a Voltage fluctuation compensation function, which can ensure the stability of the falling wind speed, and has a resistance induction compensation function, which effectively prolongs the service life of the ultra-effective filter.

* Equipped with filter failure, damage and blockage alarm technology, equipped with fan overload alarm prompt, reminding users to replace the filter in time.

* The work surface is made of well-integrated stainless steel, which is corrosion-resistant and easy to clean.

* Temperature sensor: It can detect and display the temperature in real time. Wind speed sensor: It can detect and display the downflow velocity in real time, and monitor the operation of the fan and the safety status of the operating area.

* The 10° inclined operating surface at the front is more ergonomic and more comfortable to operate.

* Quasi-closed table, with a stepped design at the front end, when the front window is fully closed, it can more effectively prevent the introduction of external air.

* Front window glass thickness ≥ 6mm.

* Interlocking protection design, the interlocking of the UV lamp and the lighting lamp, prevents the misoperation of the UV lamp from causing harm to the human body, and further protects the safety of personnel.

* Suspension-type lifting system glass door, easy and flexible to operate, stepless balance method, the sliding door can be lifted and lowered freely, and can stay at any position.

* Double-side perspective window design, better lighting effect and wider field of view.

* Negative pressure design around the effective filter, and positive pressure design around the operating area to form a sterile and clean Operating Environment.

* Reasonable structural design, maintenance and replacement of effective filters and fans can all be carried out at the back of the clean bench, which is more convenient and faster.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
