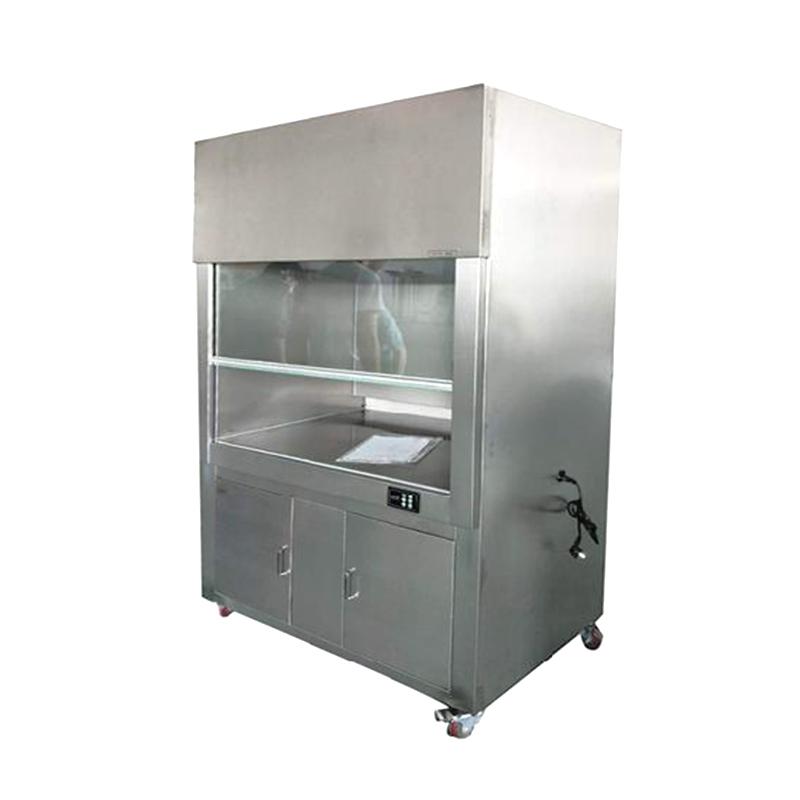

SuJie TFG-15Q all stainless steel ventilating cabinet (304)

TFG-15Q

All stainless steel ventilating cabinet (304)

All stainless steel material, window automatic equilibrate design, stainless steel sink at the bottom of the working face, working 1360 × 700 × 700mm.

Applications

TFG all-stainless steel series fume hood is integrated system of water, electricity, gas and ventilation, built-in multi-functional power socket, the window has a stepless automatic balance design, equipped with appropriate balance weights, can be positioned arbitrarily, and the bottom of the working surface is equipped with a stainless steel sink , can discharge the disinfectant and experimental residues from a drainage tank by washing with water to keep the experimental environment safe and reliable. common room equipment.

Features

1. Structural combination: the overall combination of all stainless steel is adopted, and the design of the independent water, electricity and pipeline system storage cabinet is adopted;

2. Outer box: It is made of all stainless steel stamping and forming with a thickness of 1.2mm (inclusive);

3. The countertop and optional sink are all 304 stainless steel, corrosion-resistant;

4. Lighting: 30W fluorescent lamp is used;

5. Handle: SUS304 stainless steel matt semi-circular handle;

6. Deflector: The deflector allows the harmful gases in different height spaces to be discharged from different sections; the air in the fume hood is discharged at a speed of 0.5m/s on the operating surface to ensure that there is no residual gas;

7. Window: The glass window can be pulled up and down, staying at any position can provide a safer and more comfortable test space for the experimenter;

8. The upper and lower opening height of the operating door of the cabinet: 600~700mm;

9 Working face wind speed: 0.25～0.38m/s;

10. Air volume: 1100～1800m3/h;

11. Exhaust resistance: 5~12mmH2O;

12. Water supply: 1 group; water discharge: 1 group DN50 (configured according to user requirements)

13. Air outlet size: Φ200-Φ300mm.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
