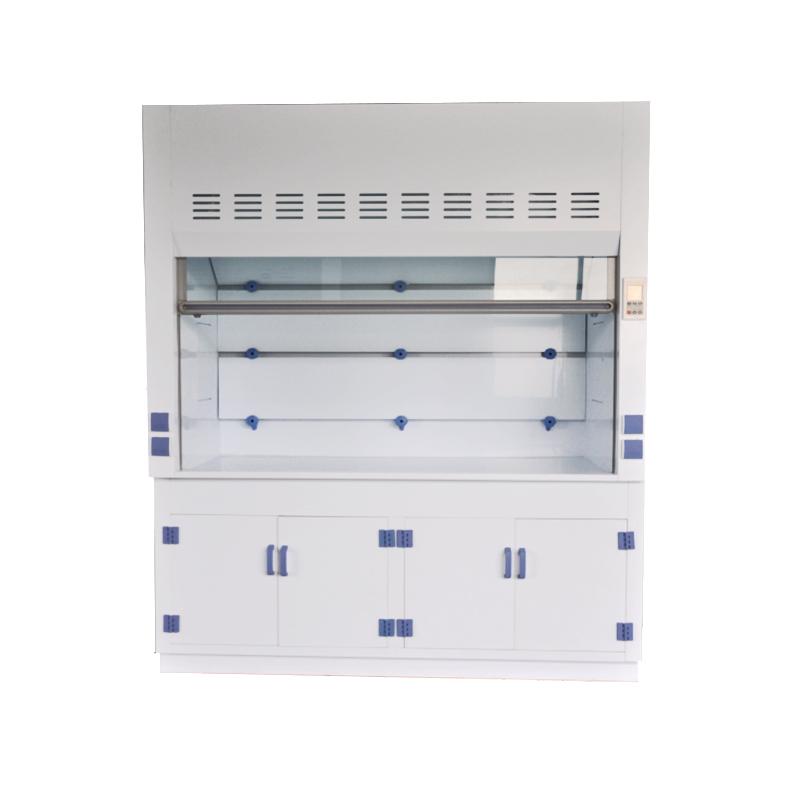

SuJie PP-18 ventilated cabinet PP polypropylene board

PP-18

PP ventilating cabinet

8.0mmPP polypropylene board, LCD control panel, equipped with four 220V single port universal sockets.

Features

• The shell is made of 8.0mmPP polypropylene board welded, and after engraving and bending to form a whole cabinet, it has strong acid and alkali resistance and corrosion resistance.

• The inner shell is welded with a new 8.0mmPP polypropylene plate, which has strong acid and alkali resistance and corrosion resistance. The inner plate can be fixed with a water supply cock, and an air supply cock can be added, the back plate can be fixed with a deflector, and the top plate is equipped with lighting and gas-collecting devices.

•  The operating table is made of 8.0mmPP polypropylene table, which is equipped with a water retaining edge to prevent liquid from spilling out. The table has good waterproof, acid and alkali resistance.

• The deflector is welded with a new 8.0mmPP polypropylene plate, which has strong acid and alkali resistance and corrosion resistance. It is installed at the rear and above the working space and consists of at least three plates, so that the working space and the exhaust pipe are separated. An air chamber is formed between the joints, and the polluted gas is discharged evenly. The deflector is combined with the cabinet body by deflector clips, which can be disassembled repeatedly.

• The air collecting hood is made of PP material, which has strong corrosion resistance. The bottom inlet is a rectangular opening, and the top outlet is a circular opening.

• The window sliding door adopts a movable vertical sliding door, which is placed between the work space and the operator to protect the operator's safety. Combined with the balance position, the sliding door can stop at any active point. There is a tempered glass window on the top of the adjustment door, and the view can be completely clear and unobstructed.

• The window glass is made of 5mm thick tempered glass, which has high strength and good bending resistance, and will not produce small fragments with sharp angles when broken.

• The frame of the window adopts a frameless door, which is embedded with the four sides of the glass to ensure the safety and durability of the window.

• The window suspension rope adopts a synchronous structure; the synchronous belt transmission ratio is accurate, the force on the shaft is small, the structure is compact, oil resistance, wear resistance, and anti-aging performance are good.

• The control part adopts a liquid crystal control panel, which is equipped with buttons such as power supply, switch, lighting, fan and operation indicator light. The liquid crystal display can clearly display the operation status of the fume hood.

• Each fume hood is equipped with four 220V single-port universal sockets. (Other types of sockets can be added according to the actual needs of customers);

• The lower cabinet body is welded with new 8.0mmPP polypropylene board, which forms the whole cabinet after engraving and bending once, which has strong acid and alkali resistance and corrosion resistance. All the door panels adopt double-folded structure, which is solid and firm, not easy to deform, and the overall appearance is elegant.

• The handle adopts laboratory-specific PP handle, which has strong corrosion resistance.

• The hinge adopts laboratory-specific PP hinge, which has strong corrosion resistance.

• Dimensions: 1800*850*2350mm (length*width*height).

• The surface wind speed of the fume hood reaches 0.4m/sec～0.6m/sec.

• The operating noise of the fume hood should be below 65dB.

• The fan adopts PP polypropylene centrifugal energy-saving fan, the fan motor is a 380V three-phase motor, and the fan material is PP polypropylene, which has the characteristics of high strength, light weight, not easy to aging, low noise, and excellent corrosion resistance.

optional accessories

• The laboratory Water Tank is made of PP cup tank, which is made of high-density PP integrally. It is resistant to strong corrosion, has the function of filtering and blocking odor, and the water trap is made of high-density PP, which is anti-siphon.

• The water supply cock adopts wall-type remote control water valve and faucet. The main body is thickened copper, and the surface is coated with high-brightness epoxy resin, which is corrosion-resistant and heat-resistant; The maximum static pressure is 20 bar; the switch knob is made of high-density PP, which is ergonomically designed and feels comfortable.

• The air supply cock adopts wall-type remote control air valve and air nozzle, the main body is thickened copper, and the surface is coated with high-brightness epoxy resin, which is corrosion-resistant and heat-resistant; the switch knob is made of high-density PP, which conforms to ergonomic design and has a good hand feeling. comfortable.

(According to the actual situation on site, the price of the fan duct and related accessories is not included in the price of the fume hood.)

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
