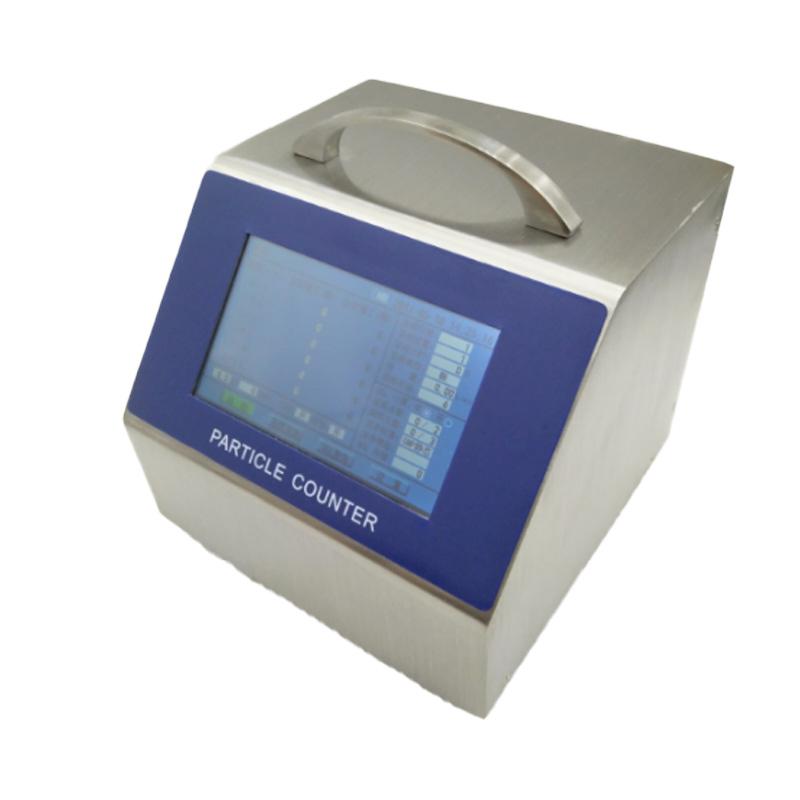

SuJie SJ-301B Dust particle counter 35000 pcs/L
SE
SJ-301B
SuJie SJ-301B Dust particle counterSPEC
SuJie SJ-301B Dust particle counterDetails
SuJie SJ-301B Dust particle counterPacking list
- SKU
- NB039229
- Sampling flow
- 2.83L/min ±5%
- Particle size grading
- 0.3um,0.5um,1um,3um,5um,10um
- Laser light source
- Long-life laser diode with a service life of 10 years
- Imported air pump
- Continuous work stable, energy saving and environmental protection
- Verification standard
- GB/T6167-2007，JJF1190-2008
- Sexual repeability relative error
- ＜±10%
- Particle size distribution error
- ＜±30%
- Maximum sampling concentration
- 35000 pcs/liter
- self-cleaning time
- ≤ 10min (3 consecutive counts of zero in 10 minutes, 95% confidence level)
- Sampling period
- User-set (5 to 9999 seconds)
- Sampling delay
- User-set (1-100 seconds) interval 1-1800S
- UCL sampling times
- 1∽50
- UCL sampling points (position)
- 2∽50
- Operating Time
- Continuous test time about 5h
- data storage
- 1 to 5000 sets of measurement data, which can be queried
- counting mode
- cumulative number
- screen display
- Color 5-inch touch screen
- Print mode
- Built-in thermal printer
- Charging Power
- AC 220V/50Hz
- Built-in lithium battery
- DC 16.8V 2.2Ah
- Charging adapter
- Input 100-240V 50Hz, output 16.8V 2A
- Battery Charging time
- 6 hours
- Cleanliness grade judgment standard
- ISO14644-1, GMP static, GMP dynamic
- temperature and humidity
- optional
- data communication interface
- USB
- Environment
- Operating Environment: 0-40 ℃ Relative Humidity 10-90%; storage environment: -30 ℃-45 ℃ Relative Humidity 0-90%
- Dimensions
- Length 170 X Width 170 X Height 160mm
- material
- SUS304 stainless steel
- Weight
- 2.4Kg
Introduction
The dust particle counter is an instrument used to measure the number and particle size distribution of dust particles per unit volume in a clean environment. It can be widely used in production enterprises and scientific research departments such as electronics industry, pharmaceutical workshop, semiconductor, optical or precision machining, plastics, painting, environmental protection, inspection institutes, etc.
The basic principle of the air particle counter is that the detection laser of the optical sensor is scattered by the dust particles and then received by the photosensitive element to generate a pulse signal. The pulse signal is output and amplified, and then digital signal processing is performed. By comparing with the standard particle signal, the comparison result is Expressed with different parameters.
Features
The dust particle counter is used to measure the number and particle size distribution of dust particles per unit volume in a clean environment, with a maximum sampling concentration of 35,000 particles/L.
The semiconductor laser light source has a service life of 10 years.
Microcomputer control, touch screen operation, automatic test and display test report.
6 channels of test particle size (0.3, 0.5, 1.0, 3.0, 5.0, 10μm), which can be detected at the same time.
The sampling period can be set by yourself, the minimum is 6S.
The instrument is portable, with its own battery, and the battery life is ≥5h.
The system can be self-cleaning, and the self-cleaning time is ≤10min.
The instrument has a temperature and humidity meter interface, and the monitoring report contains temperature and humidity data.
The data is automatically stored, and the built-in micro-printer can print the results directly.
U disk file data export, you can directly open EXCEL.
