JINGTIAN NDJ-4S Digital Rotational Viscometer with RTD temperature probe

SE
The Viscosity range of JINGTIAN NDJ-4S Digital Rotational Viscometer is 20~2000000mPa·s, which is used to detect Viscosity such as Coating paint, Printing ink glue, etc. The configuration has an RTD temperature probe, and the NDJ-4S digital display Rotational Viscometer is equipped with L1, L2, L3, L4 rotors.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian NDJ-4S RTD Digital Rotational ViscometerSPEC

JingTian NDJ-4S RTD Digital Rotational ViscometerDetails

JingTian NDJ-4S RTD Digital Rotational ViscometerPacking list

SKU
NB039249
Display
digital display
Measuring range
20~2000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Reproducibility
±1%F.S
Measurement Accuracy
±5%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Temperature transducer
RTD temperature probe
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
NDJ-4S RTD
Digital Rotational Viscometer
JINGTIAN NDJ-4S Digital Rotational Viscometer with RTD temperature probe Picture

Introduction

The LCD of Shanghai JINGTIAN NDJ-4S digital display rotary viscometer can display viscosity, speed, temperature, percentage torque, rotor number and the maximum viscosity value of the selected rotor at the current speed. It is a digital display rotary viscometer with a measuring range of 20~100000 mPa·s.

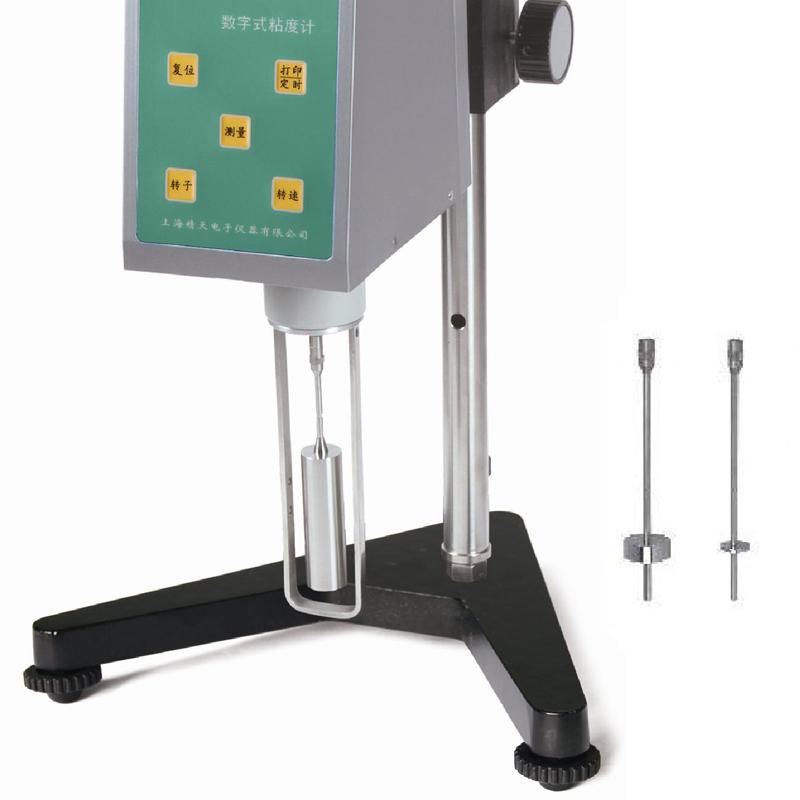

JINGTIAN NDJ-4S RTD Digital Display Rotary Viscometer Details Figure 1

With RTD temperature probe

. Sample or ambient temperature can be displayed directly on the viscometer display

. Temperature measurement range: 0～100℃, accuracy: ±0.1℃

FAQ
QThe liquid viscosity I need to measure is around 50 mPa · s. Does this Viscometer provide enough accuracy?
A Hello, the measurement accuracy of the NDJ-4S digital display swirl/spin Viscometer is +/- 5% F.S and the reproducibility is +/- 1% F.S. For liquids of 50 mPa · s, the measurement error is within +/- 2.5 mPa · s, which is very suitable for your needs. It is recommended that you calibrate before use to ensure the accuracy of the measurement results. For Miscellaneous questions, please feel free to contact us.
QMy sample viscosity varies widely, can this device cover it?
A Hello, the measurement range of NDJ-4S is 20~ 2000000 mPa · s, which can cover a wide range from low viscosity to high viscosity. Whether your sample is a low viscosity liquid or a high viscosity paste, the device can accurately measure. For further information, please contact us.
QMy experiment has high temperature requirements. Can the accuracy of temperature measurement be guaranteed when the sample is around 80 ° C?
A Hello, the RTD temperature probe equipped with this Viscometer has a measurement range of 0~ 100 ° C, an accuracy of +/- 0.1 ° C, and can still maintain high accuracy measurement at 80 ° C. For temperature-demanding experiments, the NDJ-4S can provide reliable temperature data. For further information, please feel free to consult us.
QCan this Viscometer measure the viscosity of phenolic resins?
A The viscosity of phenolic resins can be measured using the Viscometer. The Viscometer is a widely used instrument for measuring the viscosity of liquids, not only for phenolic resins but also for many Miscellaneous types of liquids. Phenolic resin is also a liquid whose viscosity is related to factors such as its concentration, temperature, molecular weight, etc. The viscosity of phenolic resins can be accurately measured using the Viscometer.
