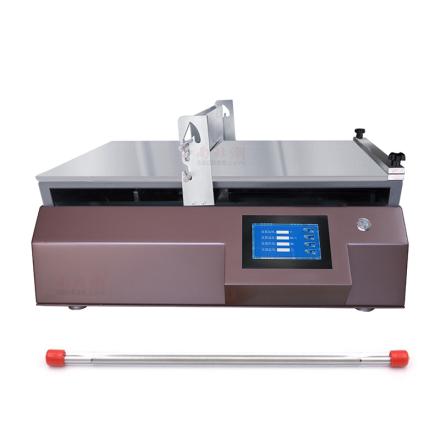

Specifications
| Coating method | bar |
| Mayer Rod Thickness Range | 1-571.5 μm (Spreader thickness according to bar model) |
| Mayer Rod Accuracy | ±0.001mm |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 300 * 400Mm (Miscellaneous size can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-400mm |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Substrate clamping method | Vacuum adsorption |
| Control mode | Touch screen control |
| Host Power Supply | 220V 50HZ |
| Dimension | 630*410*520mm |
| Weight | 65kg |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Heating Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Heating mode | Baseplate heating |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
Packing list
Film Applicator X1, External Vacuum Pump X1, Imported bar X1, China bar X1, Product Manual X1, Opacity Chart x1 box (250 sheets)
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
