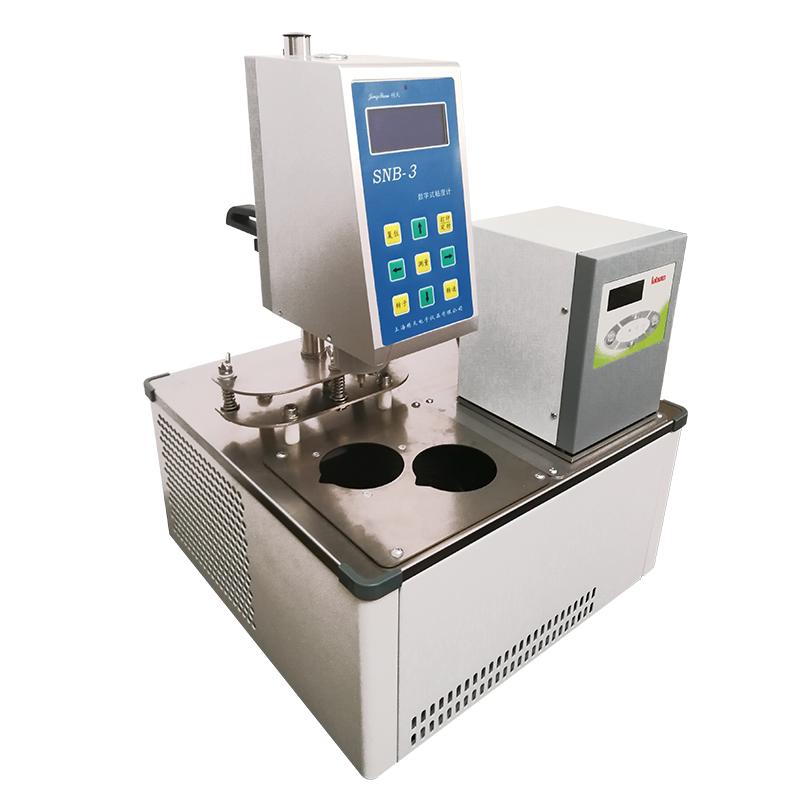

JINGTIAN SNB-1 Rotational viscometer Thermostatic Bath

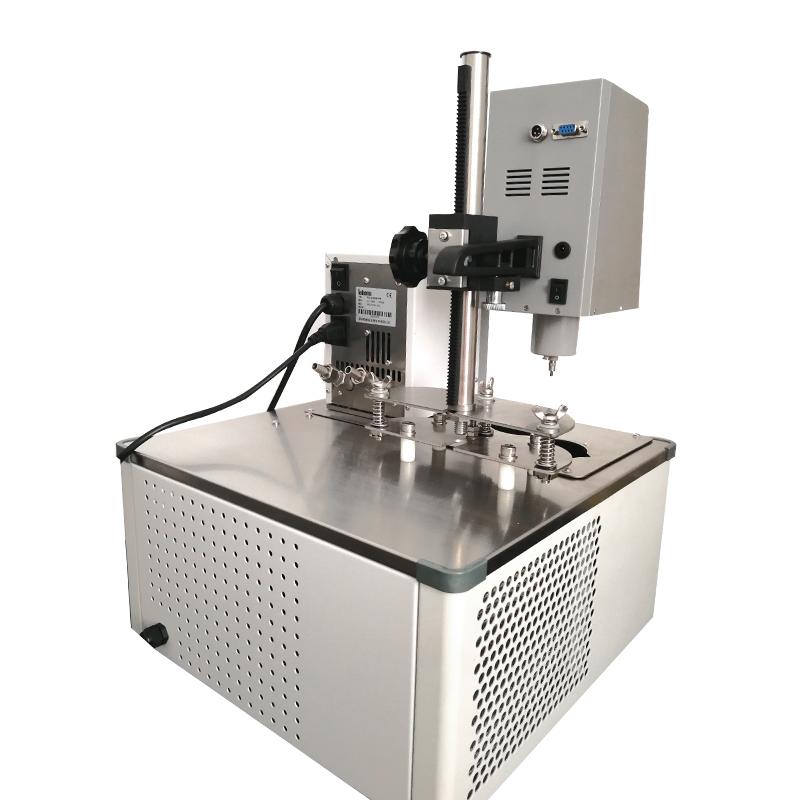

SNB-1 + LC-1008 Thermostatic bath

Digital Rotational Viscometer

Thermostatic Bath, Temperature range -10~100 ℃, viscosity measurement range 20~600000mPa·s, can detect sample temperature, liquid crystal digital display.

Introduction

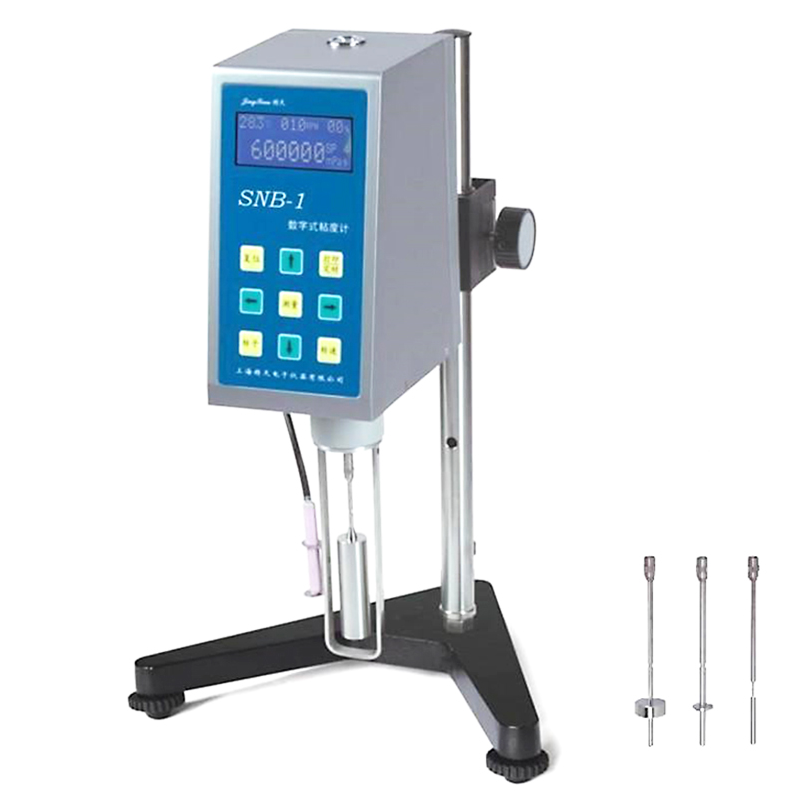

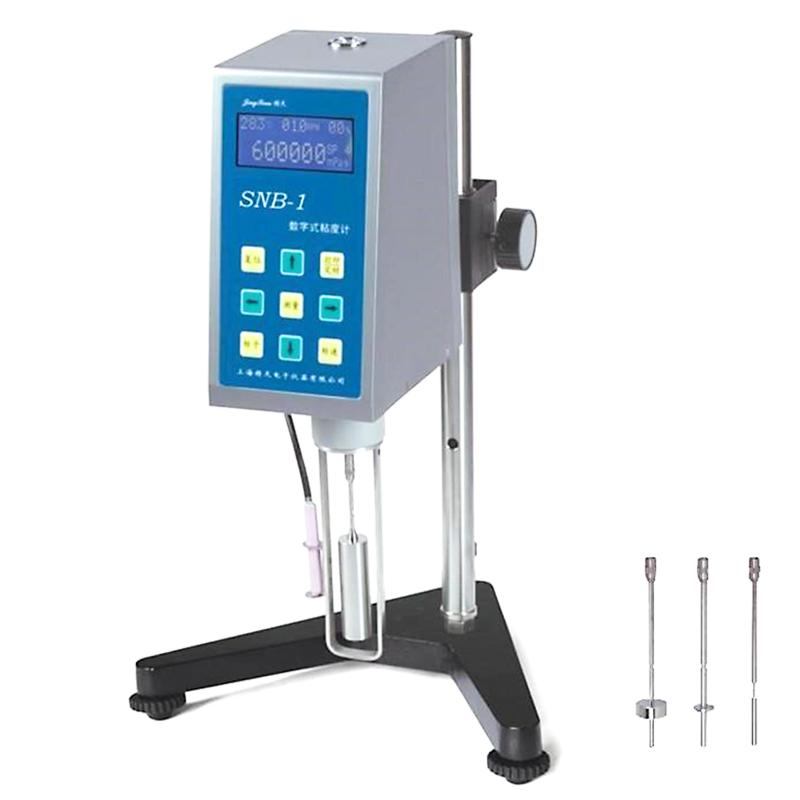

The LCD of Shanghai Jingtian SNB-2 Glue Rotary Viscometer can display viscosity, shear rate, shear stress, rotation speed, temperature, percentage torque, rotor number and the maximum measurable viscosity of the selected rotor at the current rotation speed. Worth waiting. It is a digital display Rotational Viscometer with a measuring range of 20 to 600,000 mPa·s.

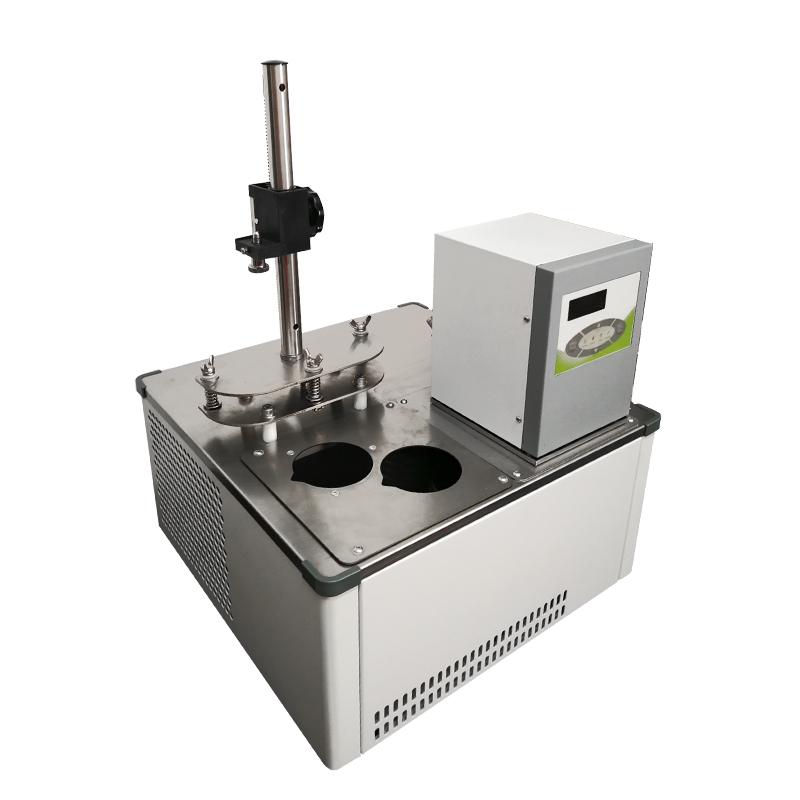

Thermostatic Bath features

• Compact appearance, small size, very convenient to place on the desktop;

• With external temperature control and programmable functions, it can realize automatic heating, constant temperature and cooling testing of samples during the test process [standard type]

• When used in conjunction with a viscometer, the operating parts of the high-low temperature thermostatic circulator and the viscometer are facing the operator. The operation and display of the two instruments are very convenient, and the test process and data are clear at a glance;

• Two insulation tubes are provided as standard to facilitate users to conduct constant temperature viscosity testing of the external circulation Water Bath jacket;

• Equipped with both heating and cooling functions, it can easily achieve precise control of any temperature between -10℃ and 150℃;

• The low liquid level buoy provides a low liquid level alarm to prevent dry burning. When the alarm occurs, the light and sound can be used to remind at the same time;

• Maintenance-free pressure/suction pump with strong pump power. The pump can simultaneously stir temperature in the tank has good uniformity and can be used for internal circulation and external circulation;

• The pump pressure and flow automatically adapt to the external load, and the international standard M16x1 connecting nut can be configured with different joints to meet the needs of different external circulation pipe diameters;

• Parts in contact with liquid or steam are made of high-performance stainless steel and high-performance plastics, which are corrosion-resistant and scale-free;

• Fluorine-free environmentally friendly refrigerant R134a;

• A variety of operating modes are available, and automatic recovery can be achieved due to unexpected power outages;

• Optional intelligent control function: multiple interfaces (RS485, RS232) to realize remote communication and control the start and stop of equipment;

• Optional 0-10V or 4-20mA analog signal input can be used for external intelligent devices to control the start and stop of the instrument;

• Together with various Rotational Viscometers produced by our company, viscosity measurement is more convenient and accurate.

Packing list：Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature probe X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
