Thermax (TMC) 10 Grid C Temperature Sticker, Model 10STHERNGCD

10STHERNGCD

Thermometric Paper (Thermal Test Paper)

Vertical automatic paste type, irreversible, temperature grid number 10, Measuring temperature 132 ℃~ 182 ℃, specification size 51 * 18mm, Encasement specification 10 pieces/bag.

Introduction

Thermax (TMC) 10-grid A/B/C/D temperature sensitive sticker is a 10-grid thermal test strip, the temperature measurement range is 40~71 °C/77~127 °C/132~182 °C/188~249 °C, vertical automatic adhesive type, temperature sensitive sticker has Celsius and Fahrenheit values at the same time.10 grid A/10 grid B/10 grid C/10 grid D temperature sticker is the original imported product of the British temperature American brand, the material used has the advantage of waterproof and oilproof, is irreversible temperature sticker.

Product principle

10 grid A/10 grid B/10 grid C/10 grid D temperature sensitive sticker paper adopts the new concept of temperature measurement, there are ten squares on the small sticker, representing different temperature values, when the temperature rises to the temperature point, the square will turn black, even if the temperature is subsequently reduced, it will not return to the original color, so that you can know the highest temperature that the object has experienced, you can know whether there is an overtemperature phenomenon without long-term monitoring, or use the test strip as a strong evidence of qualified quality.

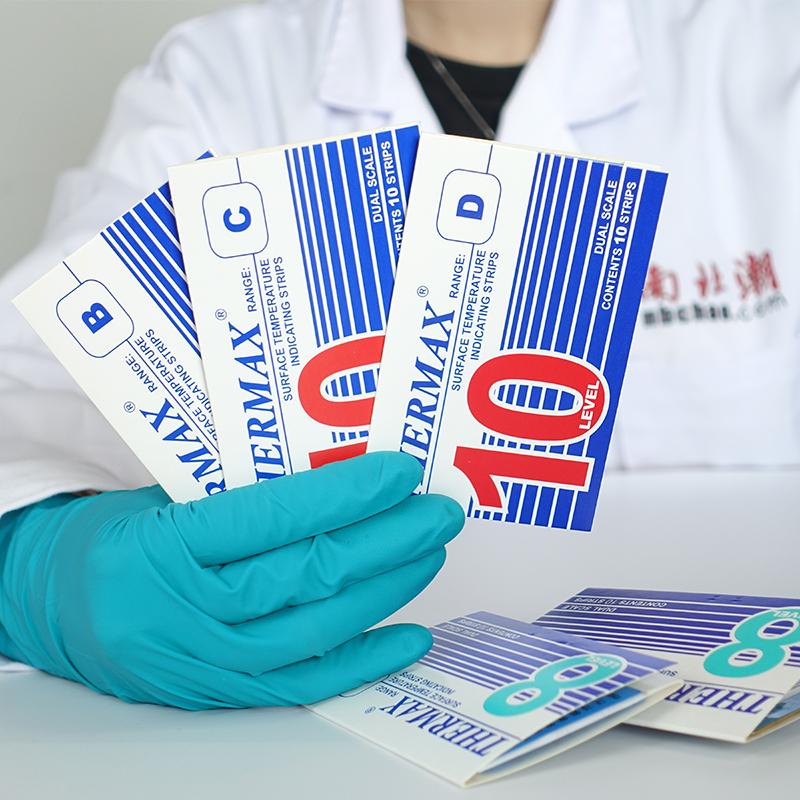

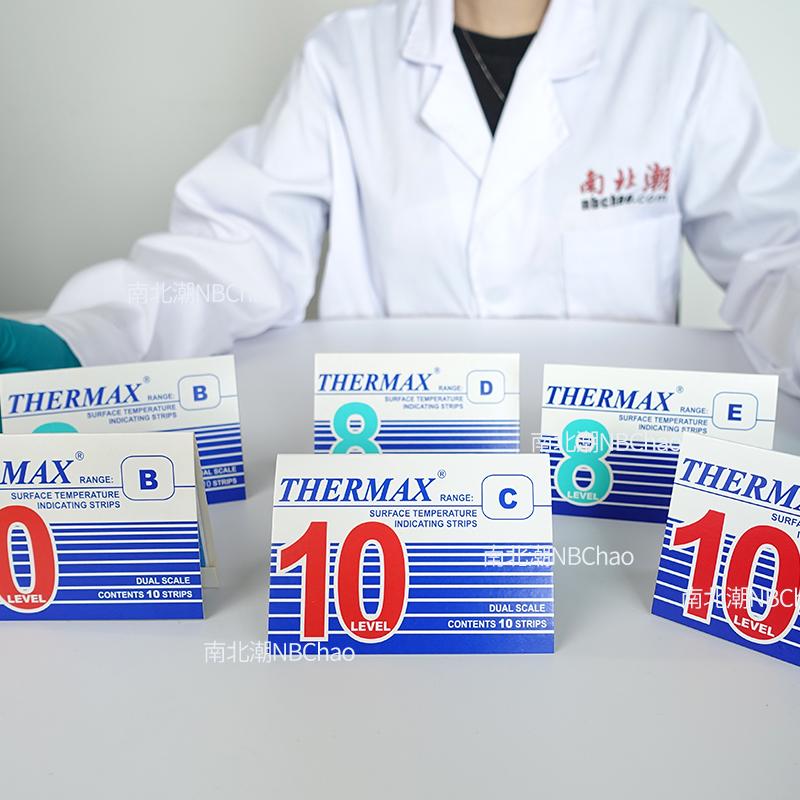

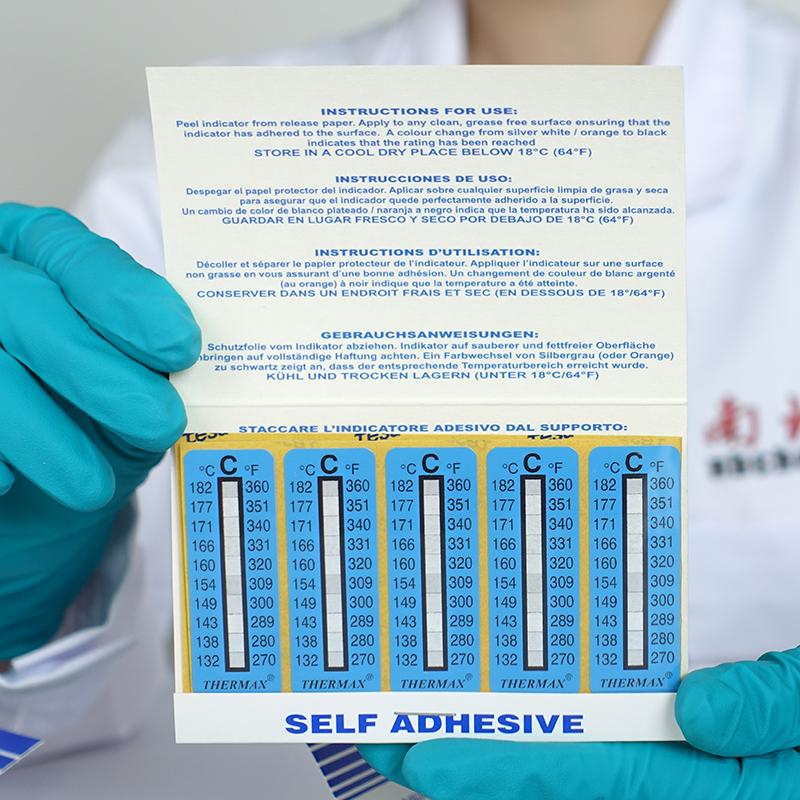

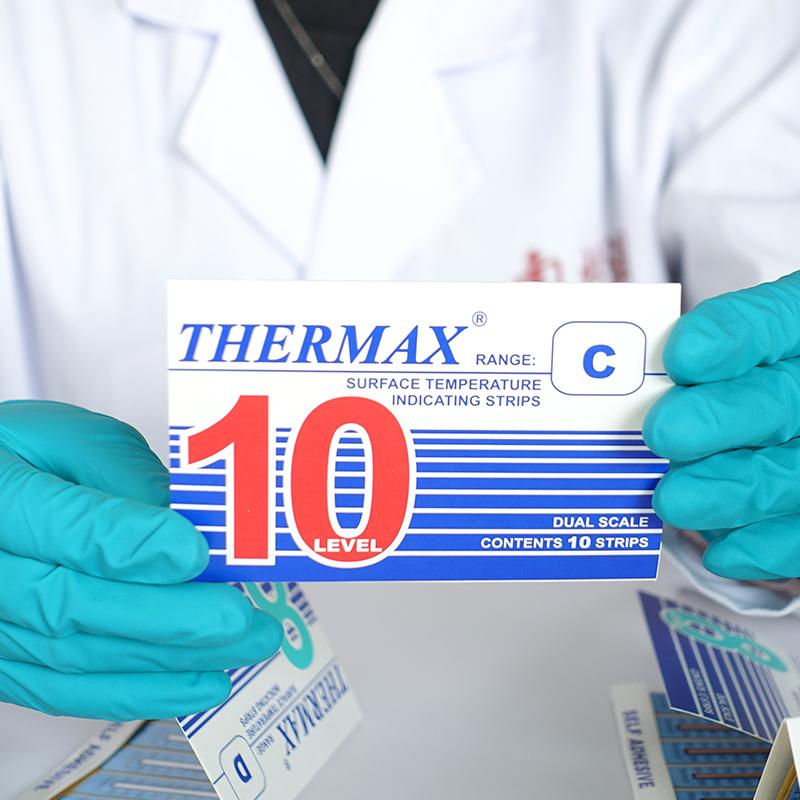

Actual picture of the product

Applications

1. Household appliance industry: the color copper material of the electrical shell needs to be baked with paint and suitable temperature to obtain good results. Before the spraying process, the thermal test strip is used to test and determine whether the required temperature has been reached.

2. Electric power company:10 square A/10 grid B/10 grid C/10 grid D temperature measurement paper is pasted on generators, motors, transformers, if over-temperature is found, it means that there has been a problem in a certain part of the system, and you can immediately seek solutions to prevent major accidents.

3. Railway company: paste on the wheels, axle boxes, and rails, and check whether the temperature is over-temperature at regular intervals, which can ensure the normal operation of the vehicle and the safety of driving.

4. Electronic industry: some electronic components, printed circuit boards, etc., such as high temperature in transportation, are enough to damage their normal function, so the thermal test paper will be pasted on the component during shipment, and the consignee can use it with confidence if it has not been over-temperature, and the shipper can also use this as evidence of qualified quality.

5. Process industry: attach the thermal test strip to the object that needs to be heated together, and you can know whether it has reached or exceeded the required temperature, such as the combination of fusible lining on textiles, the glue seam of footwear and other products, and the baking of lacquer.

6. Eight-grid thermometer paper can ensure that the sterilization and disinfection of utensils and samples have reached the required temperature.

7. Others: helicopter engines, high-Voltage switches, aircraft black boxes, cooling water radiators, temperature-sensitive chemical storage racks and temperature monitoring of various parts of the racing car.

Note: 10 grids of thermometer paper are sold in whole packs, with 10 pieces per pack.

Packing list：Thermometric Paper X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
