FSP6642 Multi-element Flame photometer for K/Na/Li/Ba

SE
Measure K/Na/Li/Ba four elements, with internal standard channel, 5.6-inch color touch screen, automatic ignition, including flame monitoring, Linear dispersion fitting method calibration.
Model：
Certificate
Contact
Details SPEC

Yoke FSP6642 FSP series Flame photometerSPEC

Yoke FSP6642 FSP series Flame photometerDetails

Yoke FSP6642 FSP series Flame photometerPacking list

SKU
NB039310
Measuring range
K(mmol/L):0.0~10.0、Na(mmol/L):0.0~200.0、Li(mmol/L):0~15、Ba(mmol/L):0～22
Spectroscopic method
1200 Concave Holographic gratings
Stability
Relative maximum change of instrument indication within 15S ≤ 2%
Response time
<8S
Linear dispersion calibration
Linear dispersion fitting method
output
USB port can be connected to the printer and can communicate with the computer
Environment temperature
0~35°C
FSP6642
FSP series Flame photometer
Measure K/Na/Li/Ba four elements, with internal standard channel, 5.6-inch color touch screen, automatic ignition, including flame monitoring, Linear dispersion fitting method calibration.

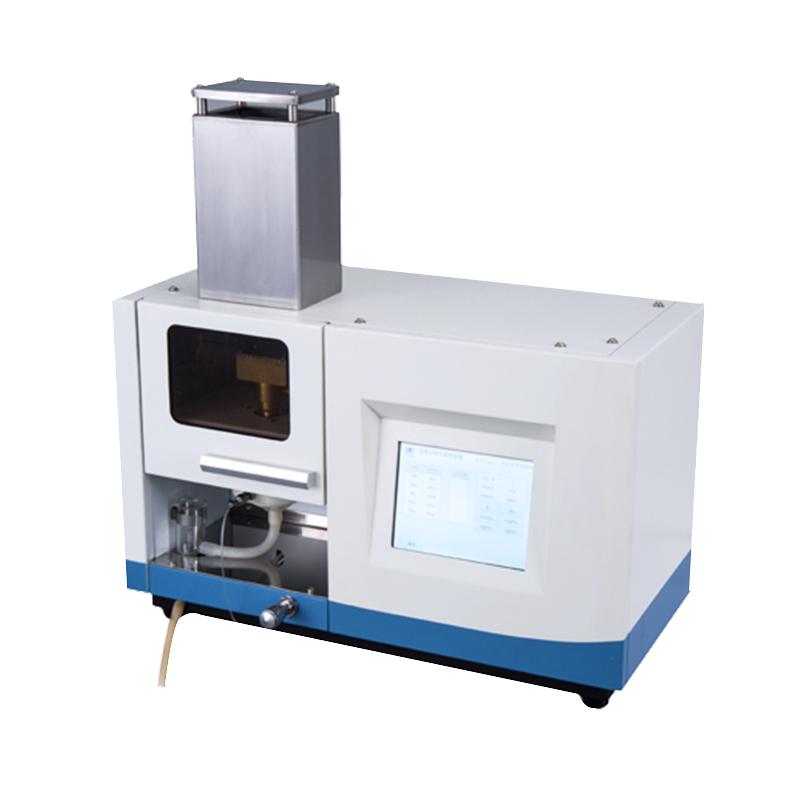

FSP6642 Multi-element Flame photometer for K/Na/Li/Ba Picture

Introduction

FSP series multi-element flame Spectrophotometer adopts multi-channel management structure of concave holographic grating to realize multi-element simultaneous measurement. Compared with the system using optical filter, it has the advantages of accurate wavelength, narrow passband and high sensitivity. At the same time, the instrument can choose to use zero-order light to collect the change of flame energy as an internal standard, so that the measurement data is more stable and reliable. The instrument is equipped with a 5.6-inch true-color high-resolution wide-angle display and a touch screen with the same resolution, which greatly improves the technological content of the instrument and the humanization of operation.

Features

1. Adopt concave holographic grating spectroscopic design;

2. Simultaneous direct reading measurement of five elements can be selected in any combination, only need software selection, flexible and convenient;

3. Imported photocells are used to receive element signals, with stable and reliable performance;

4. There is an internal standard channel, which is corrected with signals that do not contain measurement elements, and is measured synchronously with the elements;

5. Internal standard correction is designed to be optional, and can be freely selected according to the situation;

6. It adopts a 5.6-inch color 640×480 display screen and matching touch screen, which is a harmonious blend of man and machine;

7. Use automatic ignition, including flame monitoring, with flameout protection and alarm to ensure safety;

8. Adopt switching power supply, light weight, small size, low heat generation, little influence of external power supply, energy saving and environmental protection.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
