Thermax (TMC) 8 Grid E Thermometric Paper Model 08STHERNGED Special for Coatings

08STHERNGED

Thermometric Paper (Thermal Test Paper)

Vertical automatic paste type, irreversible, temperature grid number 8, Measuring temperature 204 ℃~ 260 ℃, specification size 51 * 18mm, Encasement specification 10 pieces/bag.

Introduction

The temperature control range of Thermax (TMC) 8-grid E/ED03 temperature measuring paper is 204~260°C, and it is a vertical automatic adhesive type. The British TMC thermometer paper is a Thermax series thermometer paper, which is an irreversible thermometer paper, when the temperature reaches the temperature point value of the square, the square will turn black and will not recover. TMC temperature measuring paper is the world's most professional temperature measuring test strip product, which is non-dangerous and has the advantages of oil and water resistance.

Features

1. Thermax thermometer paper has oil and water resistance

2. No danger and toxicity

3. Accuracy: +/- 1°C below 100°C; Above 100°C is +/- 1% of the range

4、Thermax, UK8 sheets of E/ED03 thermometer paperSpecifications are in accordance with BS EN ISO 9001

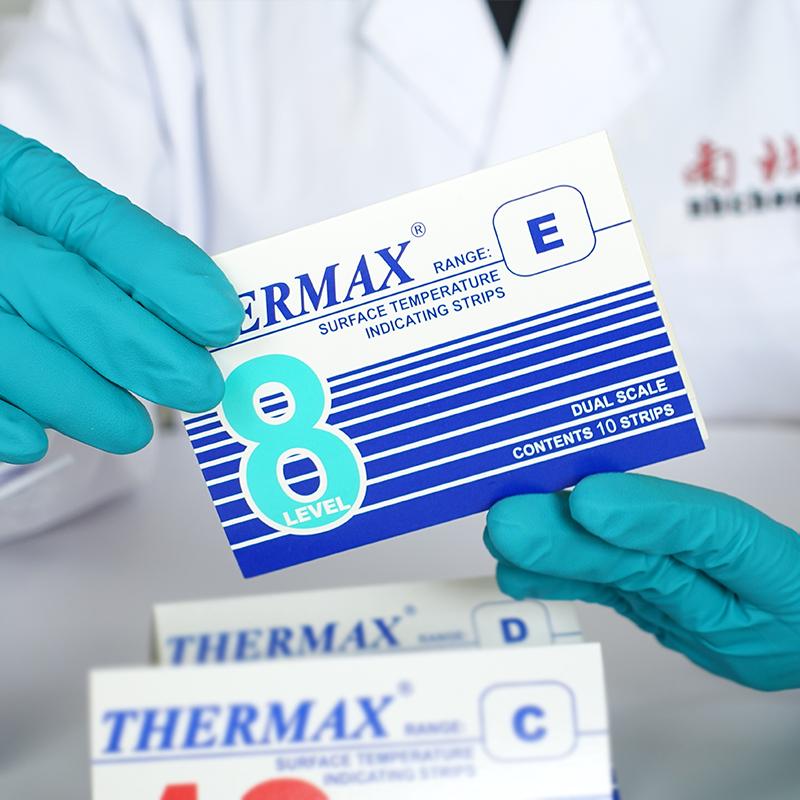

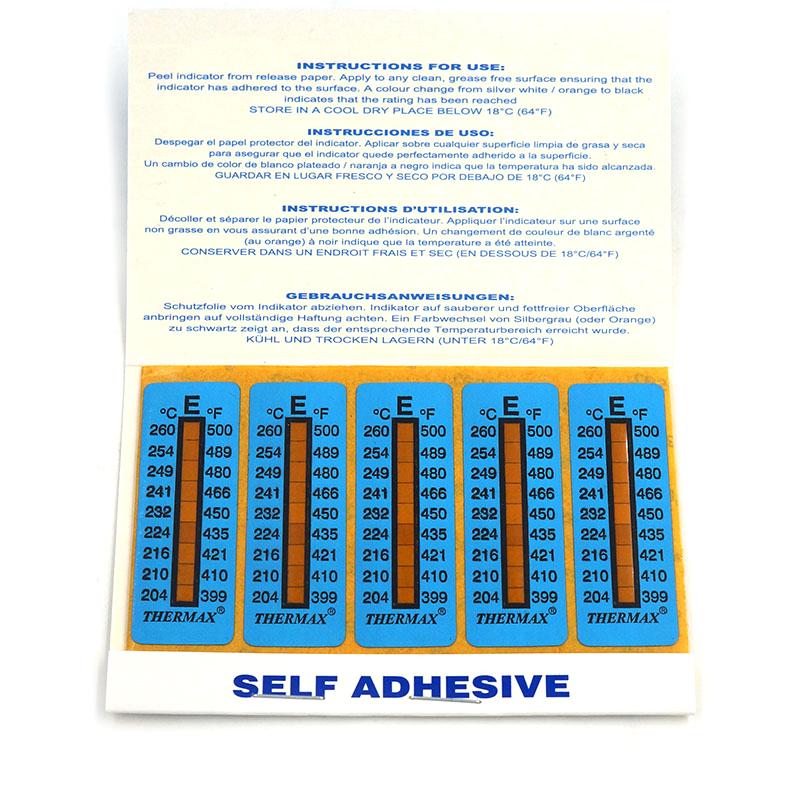

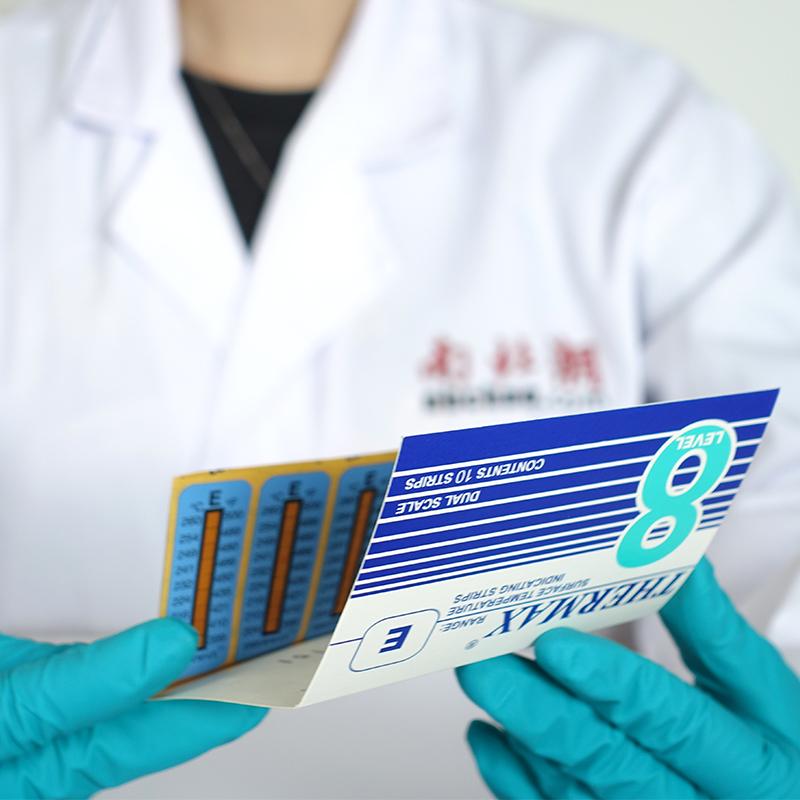

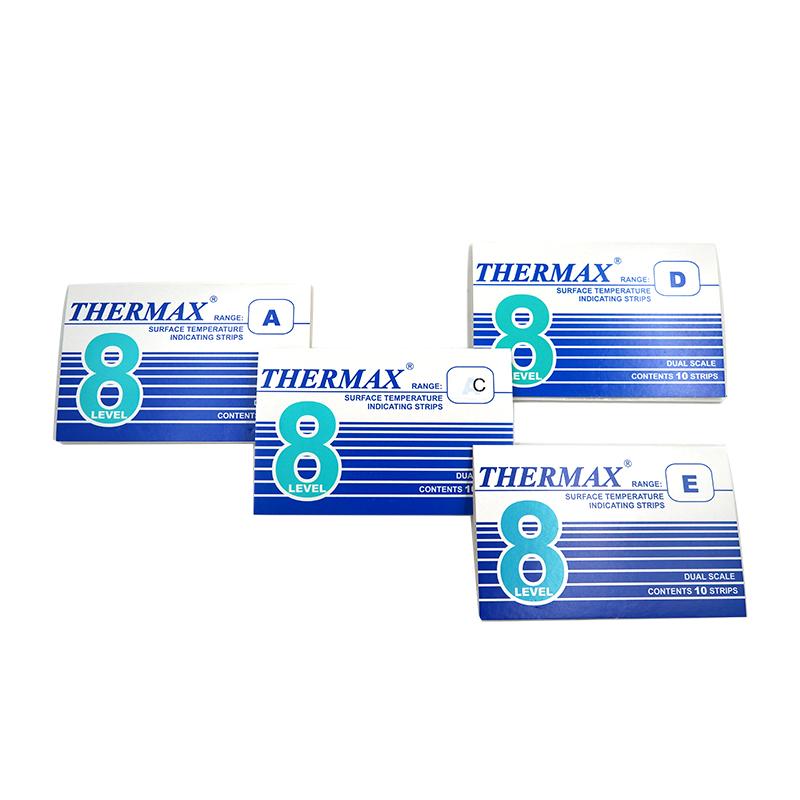

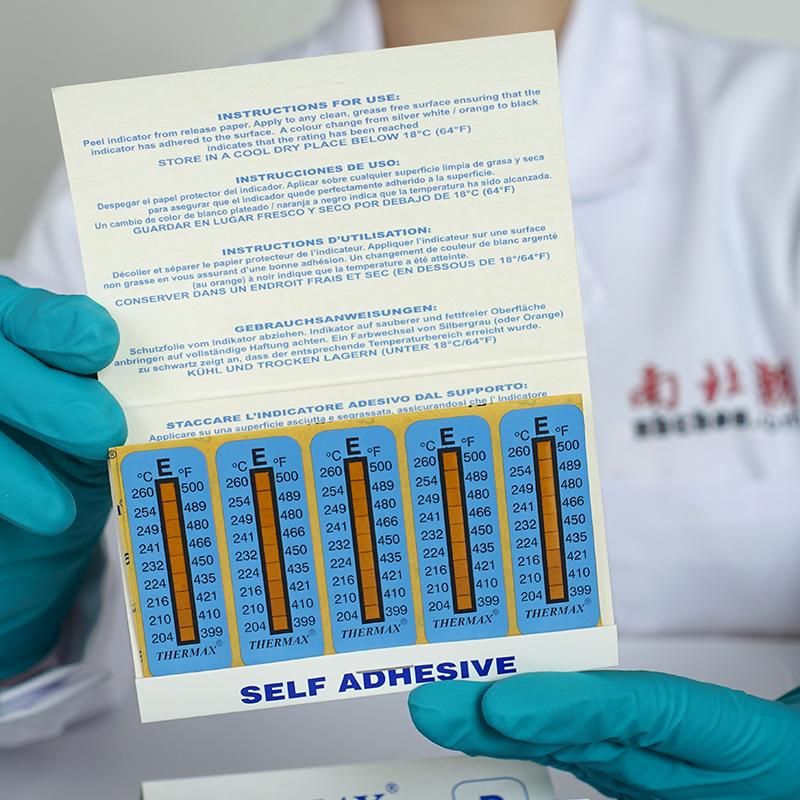

Actual picture of the product

Operating Principle

Thermax, UK8 Grids E/ED03 Thermometer Paper (Thermal test strip) adopts the new concept of temperature measurement, there are eight squares on the small sticker, representing different temperature values, when the temperature rises to the temperature point, the grid will turn black, even if the temperature subsequently decreases, it will not return to the original color, so that you can know the highest temperature that the object has experienced, and you can know whether there is an overtemperature phenomenon without monitoring for a long time, or use the test strip as a strong evidence of qualified quality.

Applications

1. Household appliance industry: the color copper material of the electrical shell needs to be baked with paint and suitable temperature to obtain good results. Before the spraying process, the thermal test strip is used to test and determine whether the required temperature has been reached.

2. Electric power company:Thermax, UK8 grid E/ED03 (204~260°C) Temperature measuring paper is pasted on generators, motors, transformers, if over-temperature is found, it means that there has been a problem in a part of the system, and you can immediately seek a solution to prevent major accidents.

3. Railway company: paste on the wheels, axle boxes, and rails, and check whether the temperature is over-temperature at regular intervals, which can ensure the normal operation of the vehicle and the safety of driving.

4. Electronic industry: some electronic components, printed circuit boards, etc., such as high temperature in transportation, are enough to damage their normal function, so the thermal test paper will be pasted on the component during shipment, and the consignee can use it with confidence if it has not been over-temperature, and the shipper can also use this as evidence of qualified quality.

5. Process industry: attach the thermal test strip to the object that needs to be heated together, and you can know whether it has reached or exceeded the required temperature, such as the combination of fusible lining on textiles, the glue seam of footwear and other products, and the baking of lacquer.

6. Eight-grid thermometer paper can ensure that the sterilization and disinfection of utensils and samples have reached the required temperature.

7. Other helicopter engines, high-Voltage switches, aircraft black boxes, cooling water radiators, temperature-sensitive chemical storage racks and temperature monitoring of various parts of the racing car.

Concentrate:Thermax, UKThe 8-panel E-Thermometer Paper is sold in whole packs of 10 pieces.

Packing list：Thermometric Paper X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
