Thermax (TMC) temperature US 8 grid C temperature label, model 08STHERNGCD

08STHERNGCD

Thermometric Paper (Thermal Test Paper)

Irreversible, temperature grid number 8, Measuring temperature 116 ℃~ 154 ℃, specification size 51 * 18mm, Encasement specification 10/package.

Introduction

Thermax (TMC) 8 grids A/8 grids B/8 grids C/8 grids D temperature label paper is an eight-grid thermal test strip, eight grids represent different temperature values, the temperature range is 37~65°C/71~110°C/116~154°C/160~199°C. When the temperature rises to this point, the square turns black and does not return to its original color even if the temperature drops subsequently, so that you can see the highest temperature that the object has experienced. The 8-panel A-plate warm paper is vertically self-adhesive and available in both Celsius and Fahrenheit.

Operating Principle

TMC8 Grid Temperature Label Paper adopts a new concept of temperature measurement, a column of squares is arranged on the small sticker, representing different temperature values, when the temperature rises to the temperature point, the grid will turn black, even if the temperature is subsequently reduced, it will not return to the original color, so that you can know the highest temperature that the object has experienced, and you can know whether there is an overtemperature phenomenon without monitoring for a long time, or use the test paper as a strong evidence of qualified quality.

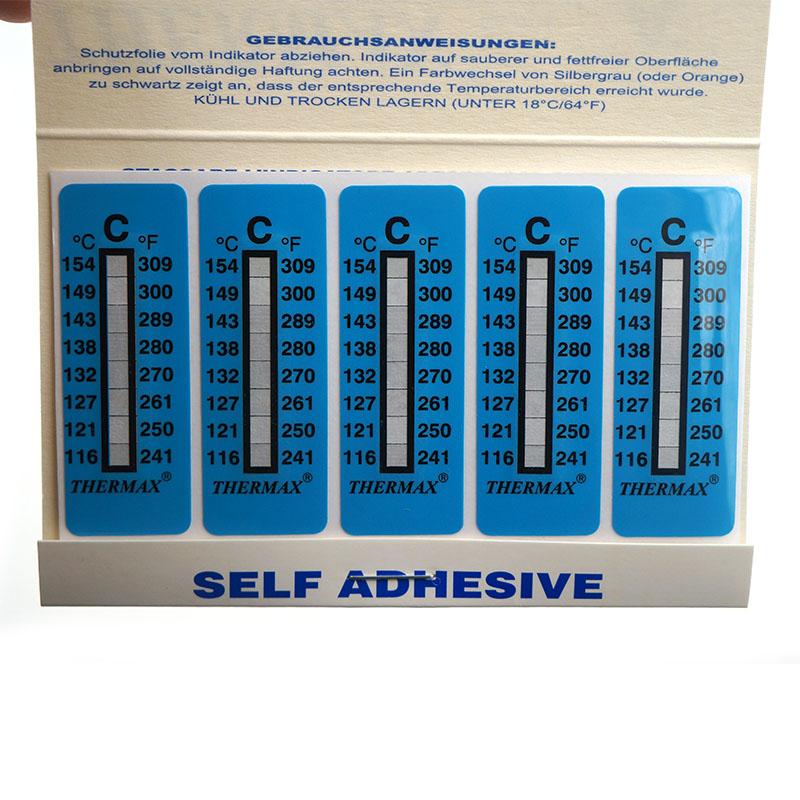

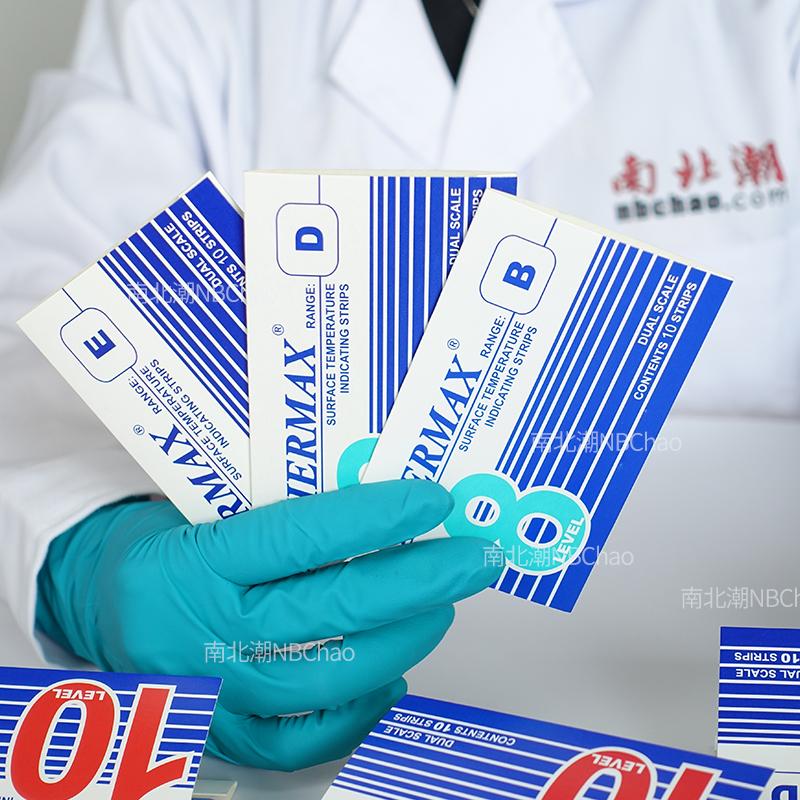

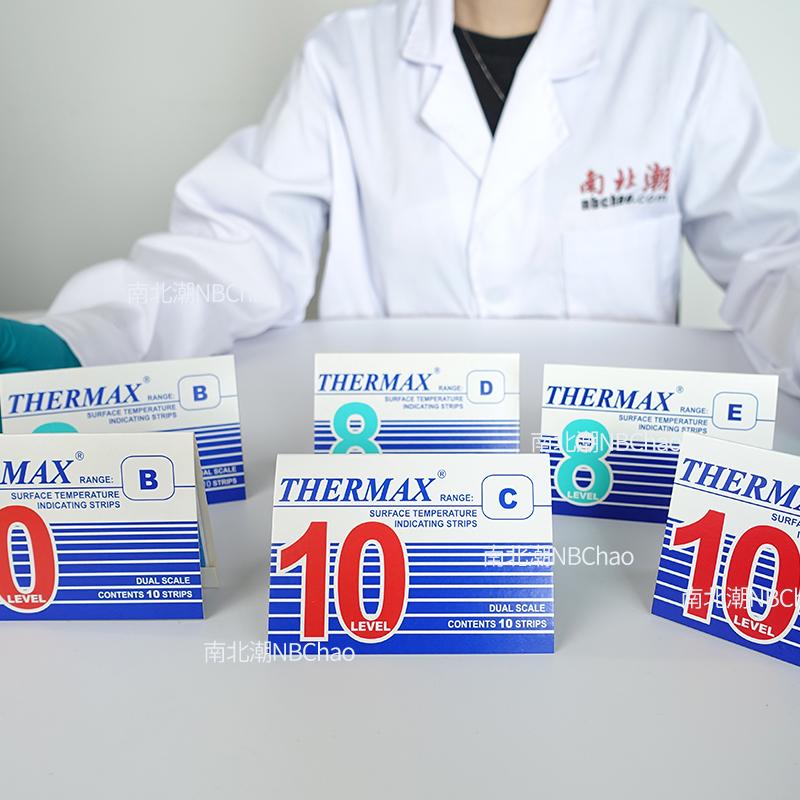

Actual picture of the product

Temperature Label Paper Product Features

1. It has oil resistance and water resistance

2. No danger and toxicity

3. Accuracy: +/- 1°C below 100°C;Above 100°C is +/- 1% of the range

4. The product specifications are in line with BS EN ISO 9001 standard

Applications

1. Household appliance industry: the color copper material of the electrical shell needs to be baked with paint and suitable temperature to obtain good results. Before the spraying process, the thermal test strip is used to test and determine whether the required temperature has been reached.

2. Electric power company:8 compartments of thermometer paperAttached to generators, motors, transformers, if over-temperature is found, it means that there has been a problem in a part of the system, and you can immediately seek a solution to prevent a major accident.

3. Railway company: paste on the wheels, axle boxes, and rails, and check whether the temperature is over-temperature at regular intervals, which can ensure the normal operation of the vehicle and the safety of driving.

4. Electronic industry: some electronic components, printed circuit boards, etc., such as high temperature in transportation, are enough to damage their normal function, so the thermal test paper will be pasted on the component during shipment, and the consignee can use it with confidence if it has not been over-temperature, and the shipper can also use this as evidence of qualified quality.

5. Process industry: attach the thermal test strip to the object that needs to be heated together, and you can know whether it has reached or exceeded the required temperature, such as the combination of fusible lining on textiles, the glue seam of footwear and other products, and the baking of lacquer.

6. Eight-grid thermometer paper can ensure that the sterilization and disinfection of utensils and samples have reached the required temperature.

7. Other helicopter engines, high-Voltage switches, aircraft black boxes, cooling water radiators, temperature-sensitive chemical storage racks and temperature monitoring of various parts of the racing car.

Note: 8 grid temperature label paper is sold in whole packs, 10 bars per pack.

Packing list：Thermometric Paper X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
