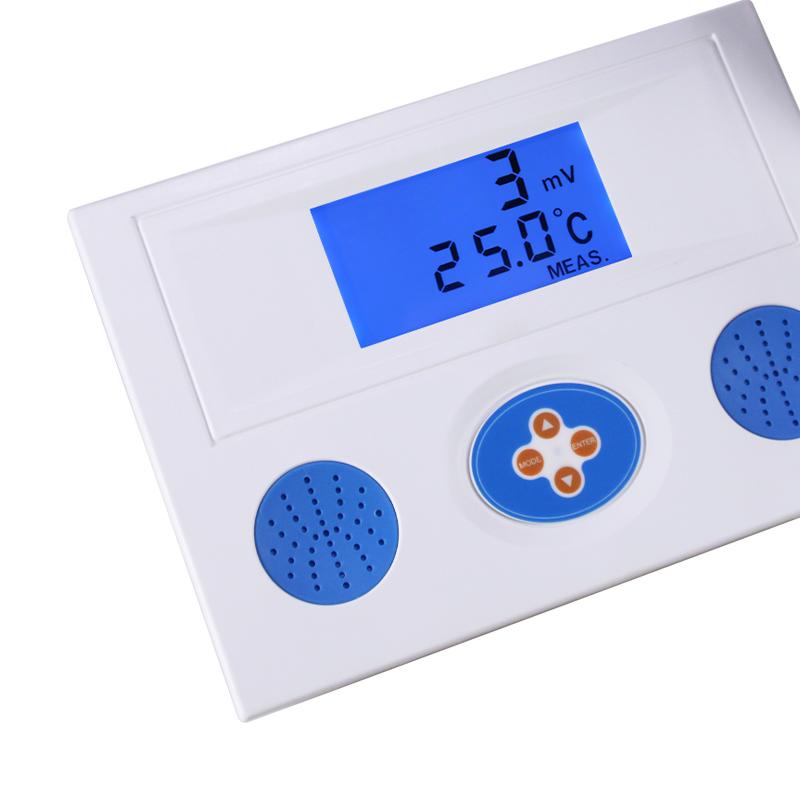

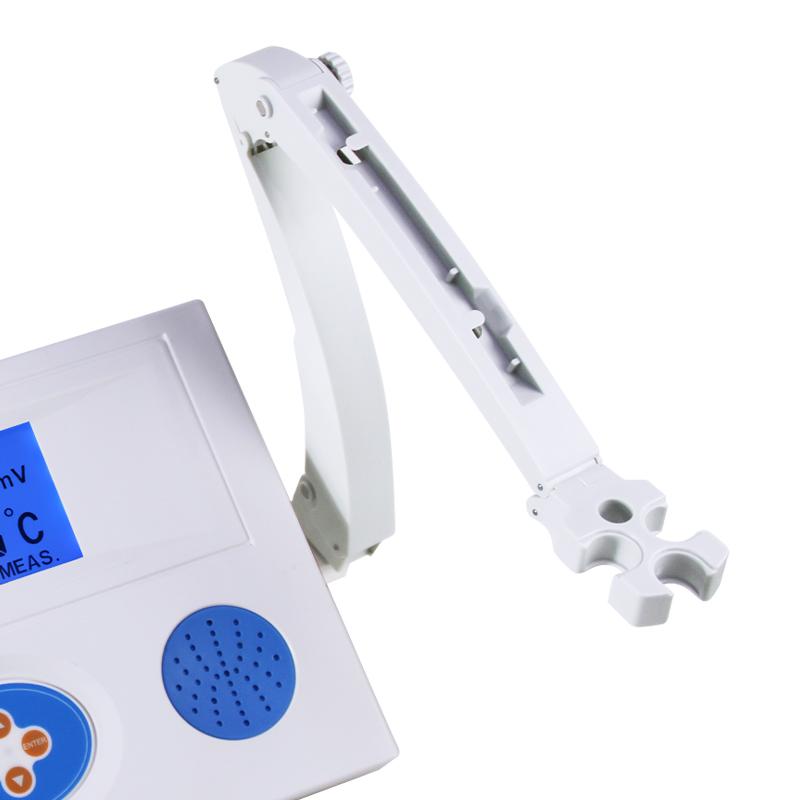

Yoke DDS-307A desktop conductivity meter 1.0 grade
SEInstrument level 1.0, automatic/manual temperature compensation, dual-row digital, liquid crystal display.
Model：
DDS-307A
Yoke DDS-307A Desktop conductivity meterSPEC
Yoke DDS-307A Desktop conductivity meterDetails
Yoke DDS-307A Desktop conductivity meterPacking list
- SKU
- NB039411
- Instrument level
- Level 1.0
- Measuring range
- （ 0 ~ 1,999 ） μS ； （ 2.0 ~ 19.99 ） μS ； （ 20.0 ~ 199.9 ） μS ； （ 200 ~ 1999 ） μS ； （ 2.0 ~ 19.99 ） mS ； （ 20.0 ~ 199.9 ） mS
- Measuring range
- -5~105℃
- Electronic unit intrinsic error
- Electronic unit reference error: ± 1.0% FS; temperature coefficient error of indication: ± 1.5%/℃
- temperature compensation coefficient
- 2.0（％）
- Temperature compensation range
- 0~100℃
- Power
- AC（220±22）V；（50±1）Hz
DDS-307A
Desktop conductivity meter
Instrument level 1.0, automatic/manual temperature compensation, dual-row digital, liquid crystal display.
Features
1. Large screen, blue backlight, double rows of numbers, liquid crystal display.
2. With manual and automatic temperature compensation function.
3. With 0~10mV DC output signal.
4. Equipped with DJS-1C conductivity electrode (platinum black) T-818-B-6
5. Type temperature sensor.
FAQ
QHow is the Conductivity Meter calibrated with standard liquid?
A
The electrode is immersed in the standard solution and the temperature of the standard solution is controlled at 25 +/- 0.1 ° C. Standard solution selection: electrode coefficient 0.1 can be used for standard solution of 146.6 μs/cm, electrode coefficient 1.0 can be used for standard solution of 1408 μs/cm, and electrode coefficient 10 can be used for standard solution of 12.85ms/cm or 111.3ms/cm. The current conductivity measured standard solution result K is known, the standard solution conductivity is 1408μS/cm, and the re-calibrated electrode Changshu J is unknown. J known/K known = J unknown/1408
