YIHENG BPS-100CA constant temperature and Humidity Test Chamber -20~100 ℃/100L

BPS-100CA

Constant Temperature and Humidity Chamber

Programmable touch operation, volume 100L, temperature control -20~100 ℃, humidity control 35~ 95% R.H, imported 304 stainless steel liner, independent temperature limit alarm system, standard 2 shelves.

Introduction to BPS-100CA constant temperature and Humidity Test Chamber

BPS-100CA constant temperature and humidity Chamber is a new generation of programmable touch screen constant temperature and humidity Chamber, BPS-100CA constant temperature and humidity Chamber temperature control range of -20~100 °C, temperature resolution bar is 0.1 °C, input power is 2250W. BPS-100CA constant temperature and Humidity Test Chamber has the advantages of humanized design, high safety, intelligence and high quality.

Application

BPS-50CL/BPS-100CL/BPS-100CA/BPS-100CBConstant temperature and Humidity Chamber (programmable touch screen) is suitable for electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, inductors, PCBs, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, auto parts, wires and cables and other parts in high-low temperature alternating humid and hot environment storage, transportation, use of adaptability test.

Features

1. Humanized design

● The new fluorine-free design makes you always walk in front of a healthy life.

● Multi-segment programmable PID controller, using TMHM balanced temperature and humidity control method, accurate temperature and humidity control, small fluctuation.

● Imported 304 mirror stainless steel liner is adopted, with four corners and semi-circular arc transition, and the shelf bracket can be loaded and unloaded freely, which is convenient for cleaning in the box.

2. Quality assurance

● The user-set parameters can be automatically stored in the event of a sudden power failure, and the original set program can be run after the power is turned on.

● International brand compressor and circulating fan, environmentally friendly refrigerant (R134a) has high efficiency, low energy consumption, and promotes energy saving.

● Unique air duct circulation system to ensure uniform temperature and humidity in the studio, diameter Φ25mm test hole, easy to operate and test.

3. Safety function

● Independent temperature limit alarm system, which will automatically interrupt the operation when the limit temperature is exceeded, and the sound and light alarm will prompt the operator to ensure the safe operation of the experiment without accidents.

● Alarm of high temperature, low temperature and overtemperature, compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection, etc.

◆ Convenient data processing (optional)

● It can be connected to a printer or 485 communication interface, displayed by computer, and printed with temperature, humidity and time curve, which provides a strong guarantee for the storage and playback of data in the test process.

4. Programmable touch screen controller

● Large-screen touch screen, simple screen operation, easy program editing.

● The operation interface of the constant temperature and Humidity Test Chamber controller is available in Chinese and English, and the real-time operation curve can be displayed on the screen.

● It has the capacity of 100 sets of programs and 1000 segments of 999 cycle steps, and the maximum value of each period is set to 99 hours and 59 minutes.

● After the data and test conditions are input, the controller has the screen lock function to avoid human touch and shutdown.

● It has the function of P.I.D automatic calculation, which can immediately correct the temperature and humidity change conditions, so that the temperature and humidity control is more accurate and stable.

● With RS-232 or RS-485 communication interface, it can design programs on the computer, monitor the test process and perform functions such as power on/off. (Optional)

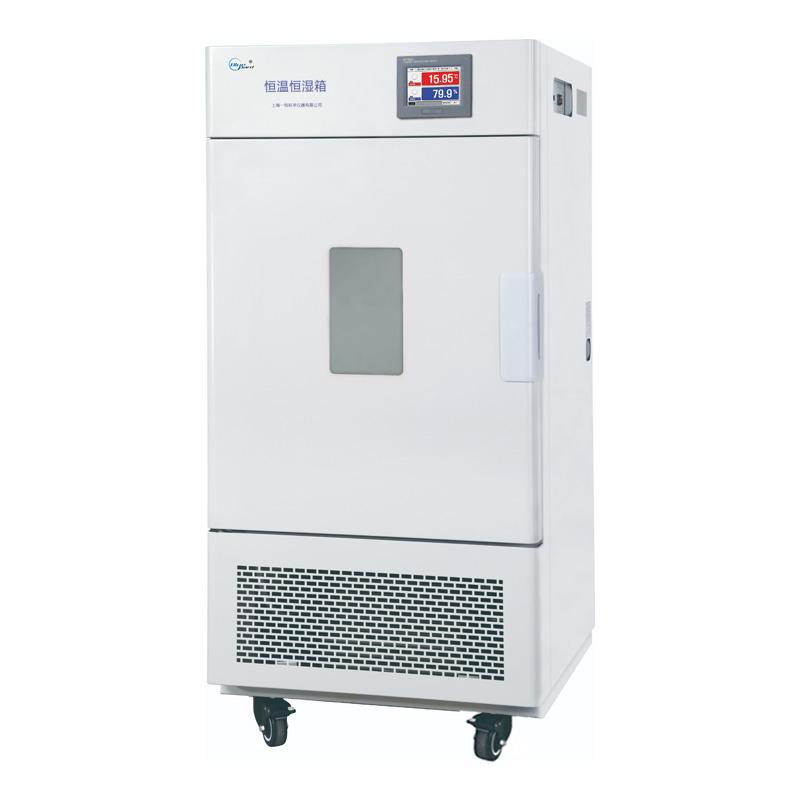

Actual picture of the product

Packing list：Constant Temperature and Humidity Chamber x1, instruction manual x1, packing list x1, certificate x1, warranty x1, warranty card x1, shelf x2, gauze x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
