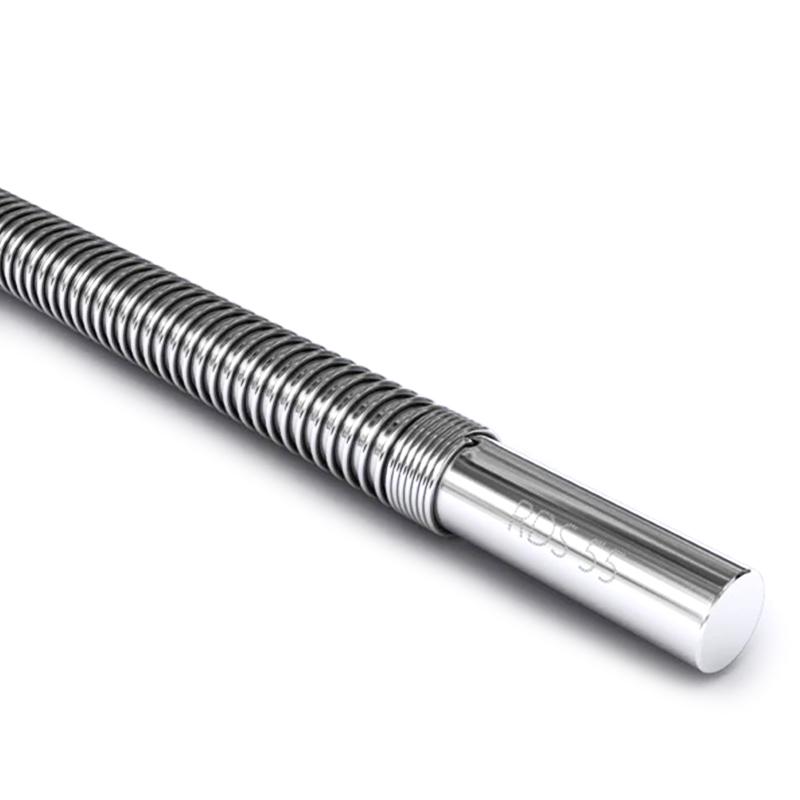

RDS 80G #3/8 "Gap Applicator rod film thickness 182.9μm
SEWet film thickness 182.9μm, film width 30cm, diameter 9.52mm, can reduce clogging and eliminate scratches, suitable for high viscosity film.
$172.00/piece
PromotionLoading...
Coupon
Model：
80G# 3/8"
RDS 80G# 3/8" Applicator rod 3/8 "SPEC
RDS 80G# 3/8" Applicator rod 3/8 "Details
RDS 80G# 3/8" Applicator rod 3/8 "Packing list
- SKU
- NB039472
- Production process
- Interstitial wire-wound
- WFT
- 182.9µm
- diameter
- 9.52mm
- Total length
- 400mm
- Application width
- 300mm
- material
- stainless steel
80G# 3/8"
Applicator rod 3/8 "
Wet film thickness 182.9μm, film width 30cm, diameter 9.52mm, can reduce clogging and eliminate scratches, suitable for high viscosity film.
Preparation principle
Following the Mayer Rod film coating principle, for higher viscosity fluids, the gap film coating rod reduces clogging and eliminates scratches. By winding smaller wires at pitches (see photo), the cavity created is wide and shallow, allowing thick coatings to flow better. Smaller wires create smaller interruptions in the coating flow, allowing for more complete wetting of the coating.
RDS Interstitial Coating Rod Big Rod Model List
| Bar number | Steel Wire diameter (mm) | Coating thickness (μm) |
| RDS 80# | 2.032 | 182.88 |
| RDS 85 # | 2.159 | 194.31 |
| RDS 90 # | 2.286 | 205.74 |
| RDS 95 # | 2.413 | 217.17 |
| RDS 100 # | 2.54 | 228.6 |
| RDS 105 # | 2.667 | 240.03 |
| RDS 110 # | 2.794 | 251.46 |
| RDS 115 # | 2.921 | 262.89 |
| RDS 120 # | 3.048 | 274.32 |
| RDS 125 # | 3.175 | 285.75 |
| RDS 130 # | 3.302 | 297.18 |
| RDS 135 # | 3.429 | 308.61 |
| RDS 140 # | 3.556 | 320.04 |
| RDS 145 # | 3.683 | 331.47 |
| RDS 150 # | 3.81 | 342.9 |
| RDS 155 # | 3.937 | 354.33 |
| RDS 160 # | 4.064 | 365.76 |
| RDS 165 # | 4.191 | 377.19 |
| RDS 175 # | 4.445 | 400.05 |
| RDS 185 # | 4.699 | 422.91 |
| RDS 200 # | 5.08 | 457.2 |
| RDS 225 # | 5.715 | 514.35 |
| RDS 250 # | 6.35 | 571.5 |
FAQ
QWhat is the difference between a gap Applicator rod and a wire-wound Applicator rod?
A
Applicator rods are mainly for high viscosity fluids. The standard wire-wound drawdown bar is suitable for wet-films below 1000cps, while the gap Applicator rod is suitable for fluids with high viscosity from 1000 to 3000cps
QCan this gap bar scrape high viscosity fluid samples?
A
Yes, unlike standard Myaer rods, gap rods are suitable for scraping fluids in the viscosity range of 1000 to 3000cps, but not beyond 3000cps. These numbers are not absolute, and Miscellaneous factors must also be considered.
QDoes this wire-wound gap open bar support customization?
A
Yes, the standard length is 40cm. If you need to customize Miscellaneous specifications, please contact customer service.
