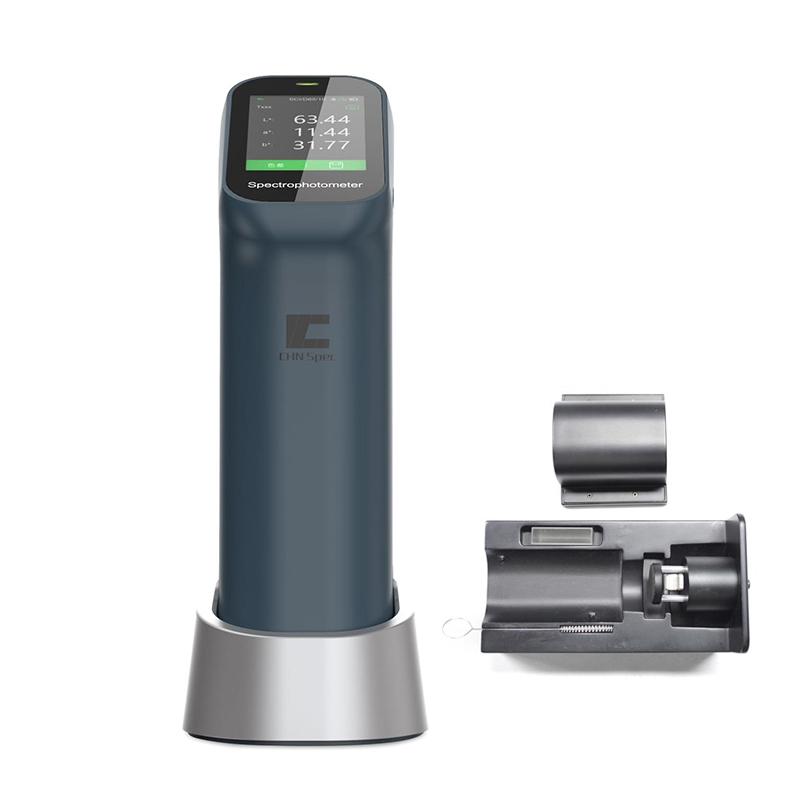

CHNSPEC CS-420 Liquid Colorimeter 11mm caliber, with liquid measurement fixture package
SE
CS-420 + Liquid measurement fixture
CHNSpec CS-420 + Liquid measurement fixture Spectroscopic ColorimeterSPEC
CHNSpec CS-420 + Liquid measurement fixture Spectroscopic ColorimeterDetails
CHNSpec CS-420 + Liquid measurement fixture Spectroscopic ColorimeterPacking list
- SKU
- NB039519
- Color
- Dai Qing
- Measurement structure
- D/8-SCI + SCE, (diffuse illumination, 8 ° direction reception), including specular reflected light to remove specular reflected light)
- Repeatability of chromatic value
- Standard deviation Delta E * ab ≤ 0.03; Average: dE * ab ≤ 0.04; MAX Maximum: dE * ab ≤ 0.06
- Inter-instrument Agreement
- ΔE*ab≤0.4
- Display Accuracy
- 0.01
- Measurement caliber
- Φ11mm
- Chroma indicator
- Light spectrum reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00), whiteness, yellowness, Blackness, colour fastness, discoloration fastness, Tint, color density CMYK, isochromatic index Milm, Munsell, hiding power, force
- Available Light Sources
- A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
- Colorschemer studio
- Support APP
- Lighting source
- LED+UV
- Measurement Observation method
- camera
- Calibration method
- Automatic calibration
- Software support
- Andriod,IOS,Windows
- Accuracy
- Guaranteed Level 1 Measurement Qualification
- Viewing Angle
- CIE 2°/10°
- Integrating sphere size
- Φ40mm
- meet the standard
- Compliant with standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- spectroscopic mode
- Optical inspection device
- Sensor
- CMOS sensor
- wavelength interval
- 10nm
- Wavelength range
- 400~700nm
- Reflectance Measurement Range
- 0~200%
- Reflectance resolution
- 0.0001
- Measurement time
- About 1s
- Interface
- USB, Bluetooth
- Display
- IPS full color screen, 2.4 inches
- Battery life
- Single charge can be continuously measured 8000 times, 3.7V/3000mAh
- Light source lifetime
- 10 years 1 million times
- Operating language
- Simplified Chinese, English
- data storage
- APP Mass storage
Introduction
This CS-420 package is equipped with a liquid measuring fixture, which can measure the color of the liquid.
The professional version of the Spectrophotometer CS-420 develops new color measurement skills; built-in camera, where you want to measure; equipped with UV light source, to achieve fluorescent color measurement; connected to mobile APP, data measurement and storage are not limited, multiple sets of Color Charts Information, search for similar colors anytime and anywhere; you can also use the APP to perform color matching and color correction functions. The measuring aperture of the CS-420 model is 8mm, which is suitable for measuring samples of most sizes.
Features
1. Automatic calibration, take care of yourself
2. SCI/SCE: It can remove the gloss measurement, which is more consistent with the human eye
3. There are many measurement parameters: 30+ measurement indicators such as hiding power, whiteness, yellowness, etc.
4. Many light source conditions: 26 kinds of light source evaluation indicators
5. Good repeatability and stable measurement——0.06
6. Guaranteed to pass the measurement certification
7. Portable massive Color Chart database
Connect to the mobile app, create a color database, and enter Color Chart information for printing, coatings, and textiles. You don’t need to carry a heavy Color Chart, you can use the instrument to find similar colors in multiple sets of Color Charts anytime, anywhere
8. Cloud database, more convenient to view and upload
Provide an official Color Chart database, search at will, and use as you like. The color information library created by the user can be uploaded to the cloud, data sharing among multiple devices, and color processing is more convenient. Enterprise users can create and manage their own Color Chart information library and color formula in the cloud. Through the unique invitation code, the information library and color formula Shared with merchants and users
9. Better performance
UV - Fluorescence can be seen
Camera - visible measurement area
Paint color matching software - you can use the App color correction function
Product Structure

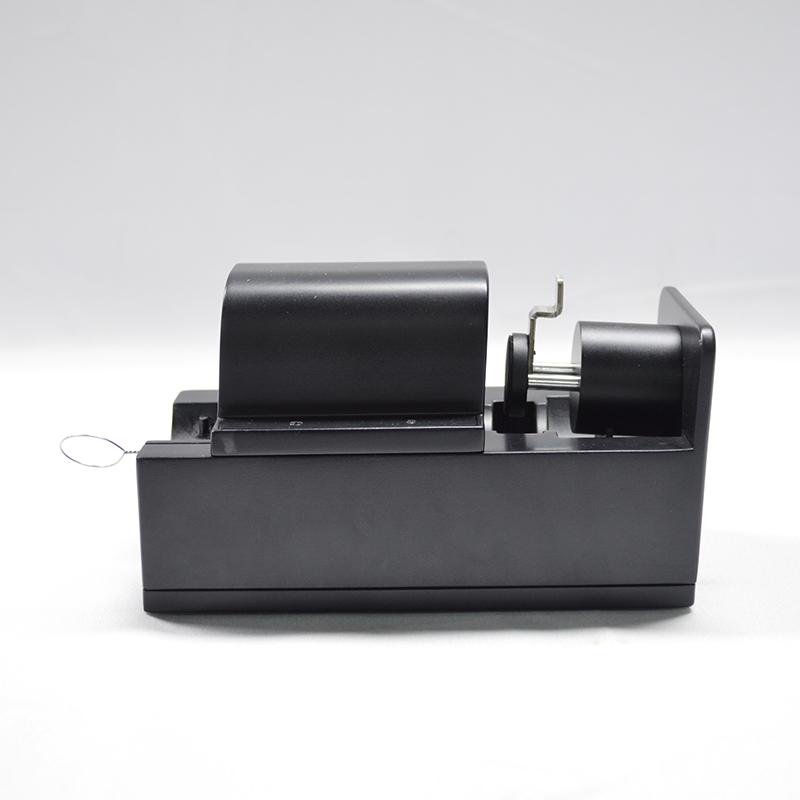

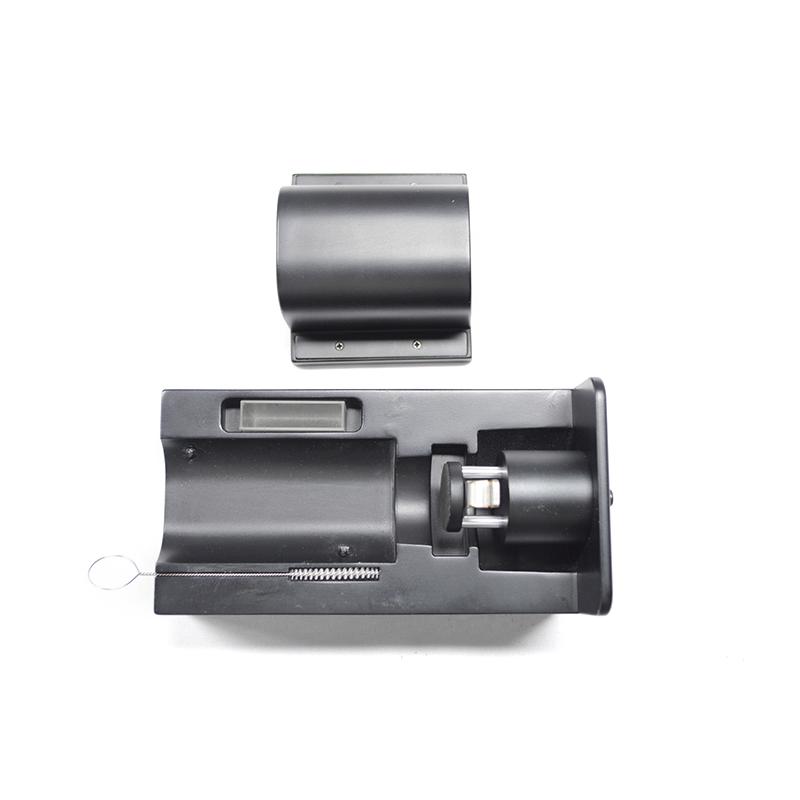

Liquid Test Fixtures
- 1JJF 1990-2022《Calibration Specification for Standard Integrating Sphere Sources》
- 2GB/T 33568-2017《Evaluation of degradation of coatings on exterior wood》
- 3GB/T 11942-2022《Test method of chroma for colour building materials》
- 4HG/T 3862-2006《Plastics. Test method of yellowness index》
- 5GB/T 7707-2008《The intaglio prints for decorating》
