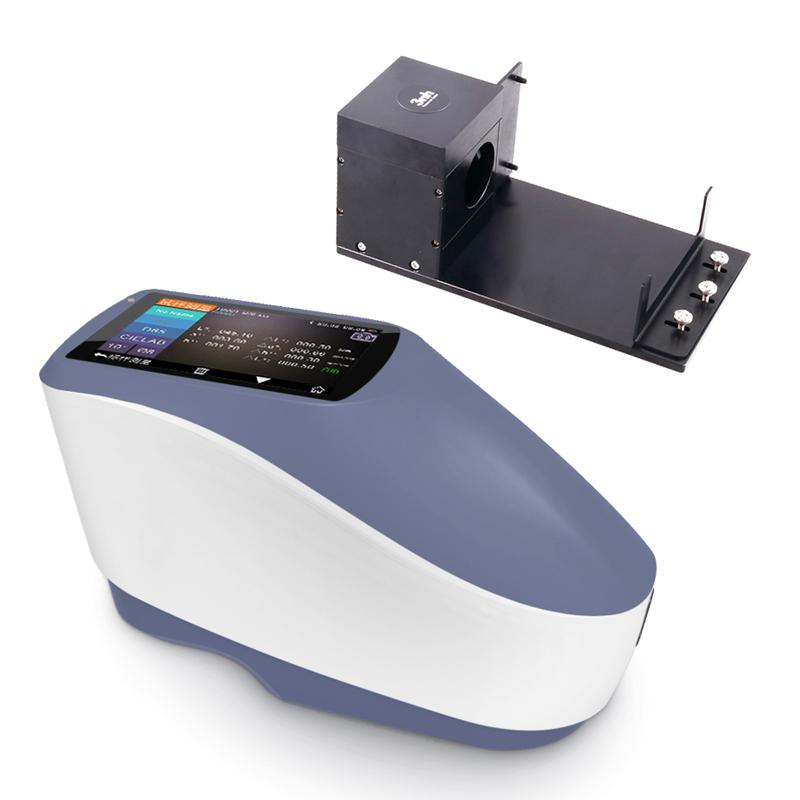

3NH YS3060 high accuracy powder coatings color reader 4mm/8mm dual caliber

YS3060 + Multifunctional Test Components

color reader

YS3060 grating Colorimeter is 4mm/8mm dual measurement caliber, with multi-functional test components, can test liquid, powder, sauce Color, with USB/Bluetooth 4.0 communication mode, SCI/SCE measurement, more than 20000 data storage.

Introduction

3nh YS3060 Spectrophotometer is a domestic (CN)ally-made grating Spectrophotometer independently developed by 3nh with independent intellectual property rights, full light source, dual aperture, SCI/SCEA, including UV/exclude UV measurement, USB/Bluetooth 4.0 dual-mode, High precision, large storage capacity, used for accurate analysis and transmission of color in the laboratory; stable instrument, accurate measurement of color, powerful function, in the professional position in the field of portable Spectrophotometer .

Features

1. D/8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

2. Adopt a combined LED light source with high lifespan and low power consumption, including UV/excluding UV;

3. Good combination of beautiful appearance and structural design in line with human mechanics;

4. The Φ 8/4mm caliber can be switched arbitrarily, adapting to more tested samples; measuring SCI and SCE at the same time;

5. Measure the spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;

7. USB/Bluetooth 2.1 dual communication mode, wider adaptability;

8. Super dirt-resistant and stable standard whiteboard;

9. Large-capacity storage space, which can store more than 20,000 test data;

10. Two standard observer angles, multiple light source modes, multiple color systems, chromaticity indicators that meet multiple standards, and meet the needs of various customers for color measurement;

11. Camera positioning;

12. The PC-side software has powerful function extensions.

Application

The YS3060 spectroColorimeter can easily achieve accurate color transfer, and can also be used as a detection device for an accurate color matching system. It is widely used in plastic electronics, paint and ink, textile and garment printing and dyeing, printed paper products, automobiles, medical care, cosmetics and food industries, as well as in scientific research institutions and laboratories.

Function interface

Pictures

YS Multifunctional Test Components

YS series multifunctional test components can be used for the reflection color measurement of samples such as high concentration liquid reagents, sauces (such as ketchup, paint), powder (such as coffee) and so on.

How to use the YS multifunctional test component

1. The YS multi-functional test component should be used in conjunction with the YS series Spectrophotometer . Before use, the YS series Spectrophotometer should be calibrated professionally for black and white calibration.

2. Place the YS series color measuring instrument as shown in the figure. The measuring port of the color measuring instrument should be well connected with the measuring port of the bracket. At the same time, the two base baffle pins should be aligned with the base plate reference holes of the YS color measuring instrument, and then Hold the push plate against the Colorimeter, tighten the screws, and check whether the Colorimeter is loose, and if it is loose, be sure to tighten the screws again.

3. Put the cuvette loaded with the sample to be tested into the bracket. Gently push away the rotatable pressure plate, gently put in the cuvette, one side of the cuvette is close to the measuring port of the instrument, and the other side is pressed by the rotatable pressure plate; note that the height of the liquid in the cuvette should be greater than the matching height of the test caliber (ie sample height reaches more than half a cup).

4. Cover the cover to ensure that the interior of the cuvette is completely dark. After completing the above steps, you can use the YS series Colorimeter to measure the reflected color of the sample.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
