3NH NS820 + Multifunctional Test Components ColoriMeter Manual,OI

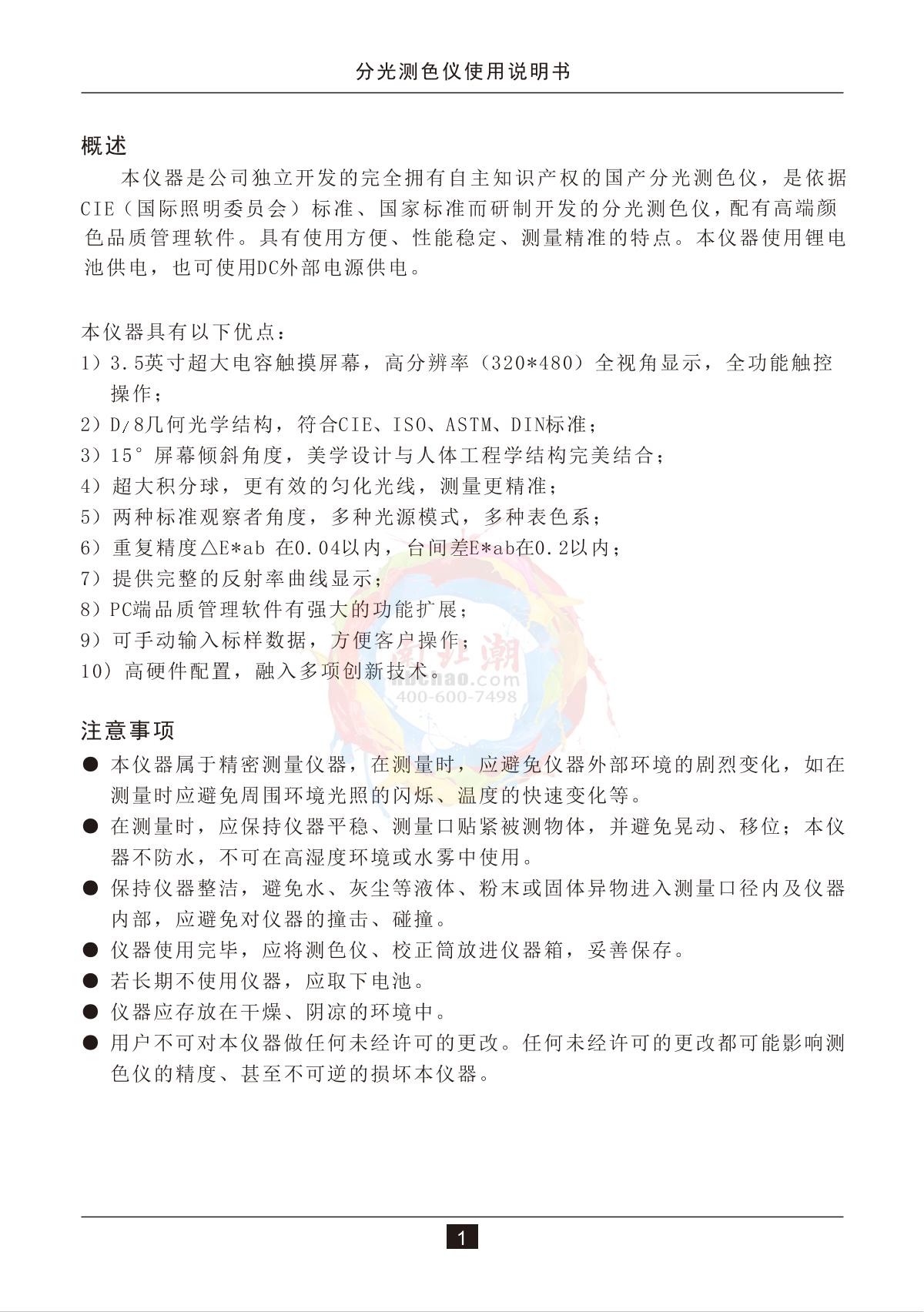

3nh NS820+多功能测试组件分光测色仪操作说明书第1页

3nh NS820+多功能测试组件分光测色仪操作说明书第2页

3nh NS820+多功能测试组件分光测色仪操作说明书第3页

3nh NS820+多功能测试组件分光测色仪操作说明书第4页

3nh NS820+多功能测试组件分光测色仪操作说明书第5页

Continue to read
