IWAVE WF32-16mm color difference Tester with multi-functional test accessories for liquid and powder particles

WF32-16mm + Multifunctional Test Accessories

Colorimeter

With liquid, powder multi-functional test accessories, 16mm measurement caliber, with Color simulation function, with eight Color difference formula, repeability accuracy < 0.03, built-in whiteboard automatic correction, a variety of Light sources and Color space.

Introduction

The internal components of IWave WF32-16mm color difference Tester are imported high-quality imported products, which greatly improves the stability and accuracy of measurement, and is easy to operate. The number of light sources of many domestic (CN) color difference Testers is 1~2, andThe WF32 series Colorimeter is designed with eight light sources to increase the range of measurement applications.

Compared with WF30 series color difference measuring instrument, CIELUV, HunterLAB, and sRGB display modes have been added, and the color difference formula of △ECMC, △EISO, △ECIE94, △EFCMII., △ELuv, △Ehunter, and △EsRGB has been added to the color difference formula, which is accurate and stable for measurement and easy to operate.

thereintoIt is a general-purpose color difference Tester, which comprehensively considers the general methods and applicable habits of color detection in all walks of life, and considers the requirements of a variety of materials for the size of the measurement diameter during measurementBecause of its versatility, small inter-stage difference and measurement stability, the 8mm measurement aperture provides great convenience and reliable reliability for color communication in all walks of life and across industries.

Product application field

IWave WF32-16mm color difference Tester is suitable for measuring color difference in coatings, paints, printing, rubber, leather, glass, toys, building materials, textiles, home appliances and other fields.

The difference between the three measuring calibers

IWave WF32-16mm color difference Tester is a measurement aperture of 16mm, the measurement diameter is larger, generally for the surface of the object to be measured with texture, pitting or surface grain, soft material or large size of the product can be selectedWF32-16mm color difference measuring instrument. In addition, if the surface of the object is wet, use a 16mm diameter glass protection plate to prevent internal contamination.

Features

Intuitive and easy to operate

2.8-inch color screen: large font and clear display. Chinese Colorimeter

Operation key surface: simple, clear, just look at it.

Display of technical parameter coordinate diagrams, with color simulation, very intuitive.

Automatic, high precision

Built-in whiteboard: Correct by yourself when you turn on the machine, no need to manually calibrate, fast and convenient, and will not cause the trouble of inaccurate calibration due to pollution of the whiteboard.

Measuring port positioning function: more direct and accurate positioning, some instruments are positioned with windows, which is inconvenient, and some are positioned with cameras, but the excessive focal length of exposure is not accurate, resulting in unclear sight of the target, and a large amount of power consumption is required to start and cause the measurement data to be abnormal.

High precision: the repeatability is up to 0.05, and most of them are between 0.01 and 0.03. The LAB values are very close to those of Spectrophotometer s, and most of them are consistent. The chromatic aberration values are basically the same.

Professional and practical

Multiple technologies

Multiple measurement modes with three diameters to choose from, the small diameter is a true 4 mm diameter that can measure curved surfaces and small area products, and the 16 mm diameter can measure products such as striped cloth, leather and wood, with five color spaces. Eight chromatic aberration formulas, eight light sources.

IWave WF32-4mm/8mm/16mm domestic (CN) color difference measuring instrument isPortable design, the body is more stable, there will be no light leakage during measurement, and the measurement data is more accurate and reliable.

Power supply: Power adapter can be used, as well as high-capacity polymer batteries, which can be used for 6000 to 8000 times on a single charge.

The appearance is generous and beautiful, the lines are beautiful, and the color is calm.

IWave WF32-16mm Chromatic Difference TesterThe size and weight are moderate, not as heavy as imported Colorimeters, and heavier than other domestic (CN) brands. It feels very good in the hand.

Accept customization: The color difference Tester can be customized according to the customer's requirements. Color measurement solutions are also available.

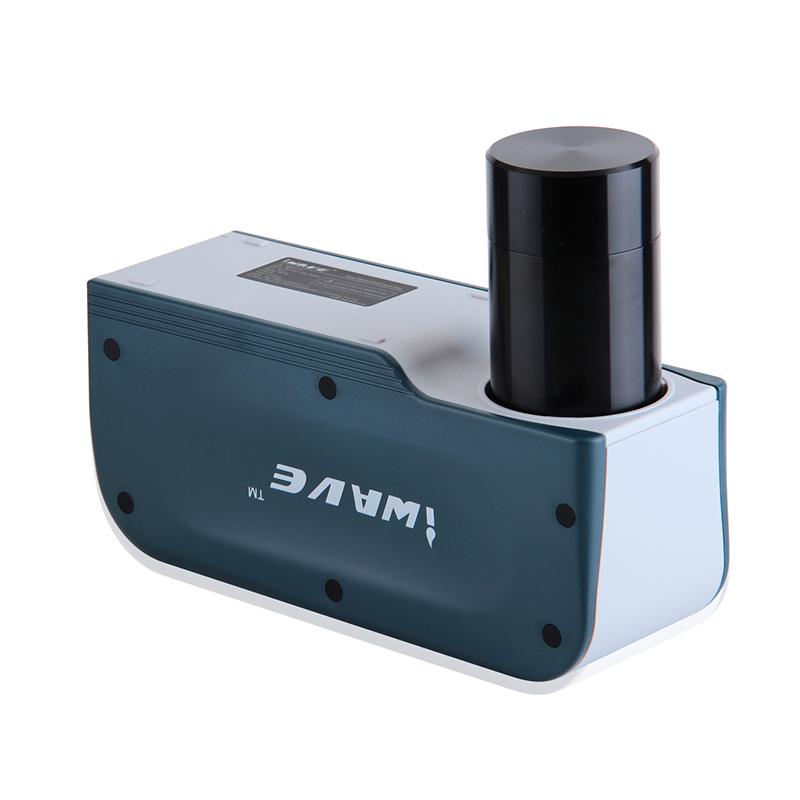

Actual picture of the product

SGS Trusted Identification

Versatile test components

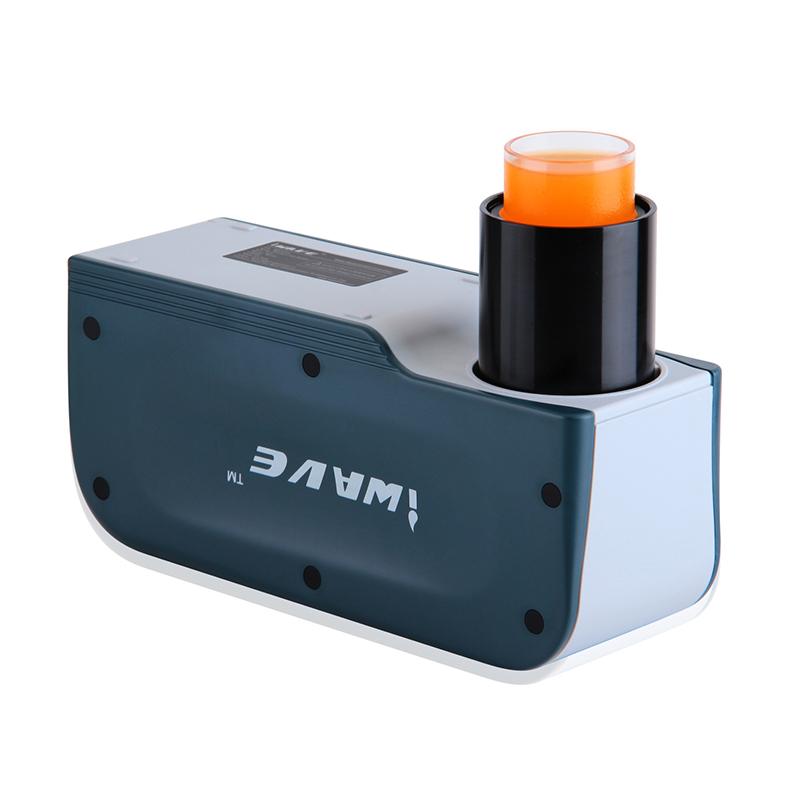

Can be assembled in WF seriesColorimeterThe optical integral cavity (16 mm aperture) and the optical grade quartz container vessel form a multi-functional test accessory, which is suitable for measuring liquids, slurries, powders, and fine granular objects.

Measurement steps

1. Inject the liquid into the quartz cup;

2. Fix the integrating cavity on the Colorimeter;

3. Put the quartz cup into the integral cavity;

4. Cover the lid of the integral cavity;

Packing list：Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
