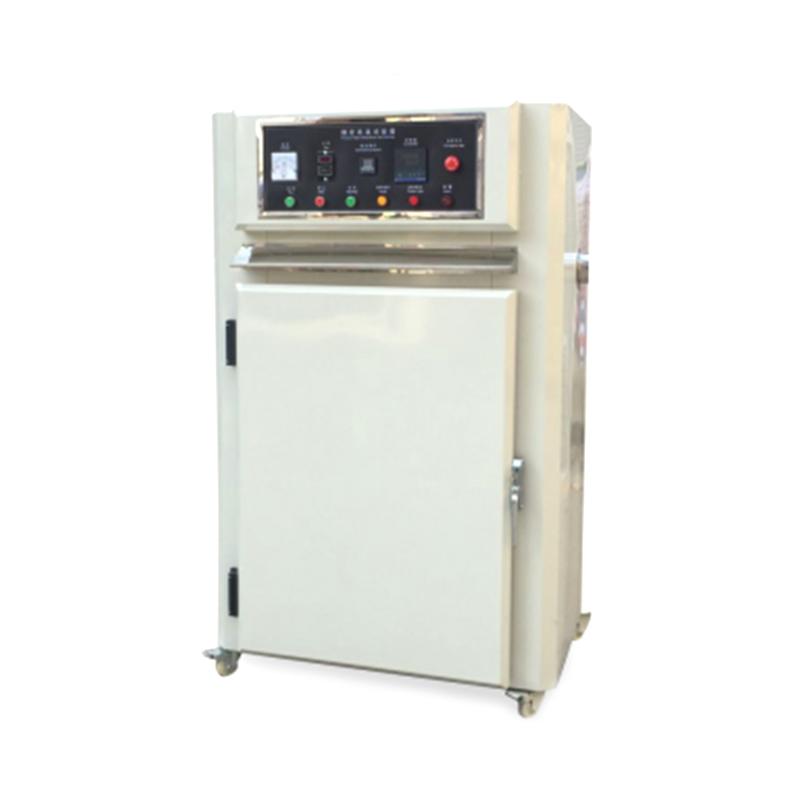

CHINA Laboratory Oven precision thermostatic oven NBC-KX225L

NBC-KX225L

Oven

Volume 225L, equipped with Taiwan, CHINA nickel-chromium heating pipe, original imported button controller, stainless steel #304 inner box, high-quality polyurethane foam insulation material.

Introduction

This product uses circulating air for constant temperature heating. It is highly intelligent and does not require special supervision. The temperature is automatically adjusted according to the user's intelligent control. Its working temperature can range from room temperature to the highest temperature. Within this range, the working temperature can be selected arbitrarily. After selection, the automatic control system in the box can be used to keep the temperature constant. Equipped with an electric blower to promote mechanical convection of indoor hot air to make the indoor temperature more uniform.

Structure

This equipment is composed of stainless steel plates. Effective polyurethane foam is used as the insulation layer material between the working room and enclosure. It has good insulation effect and is safe and environmentally friendly. Opening the exhaust valve on the top of the box allows for convective exchange of hot and cold air at the working room temperature. The temperature is controlled by a thermal expansion controller or digital display instrument for automatic constant temperature adjustment. All electrical operating equipment are installed in the control layer on the box side. There is a side door in the control layer that can be removed for inspection or circuit repair.

Boxes and equipment

1. Equipment

• Measuring device

• Original imported Omron temperature control (plus over-temperature meter) button controller

• Running time: 0~9999 minutes

• Controlled by high-power relay heating components

• The temperature controller adopts imported P+I+D method to control temperature heating.

• The whole machine control system adopts electromagnetic contactor design

• Digital display high-precision timer, fixed temperature baking time can be set

• Multi-color indicator light to indicate the oven usage status

• It has over-temperature or baking completion indication function and has an indicator light alarm system.

• Equipped with over-temperature preventer, which automatically protects and stops heating after abnormal over-temperature.

• No fuse switch protection, automatic power supply shutdown in case of abnormal overload

2. Heating system

• Equipped with Taiwan, CHINA nickel-chromium heating tube

• Blower: Centrifugal multi-blade fan

• Air transport method: One 1HP long-axis motor transports air horizontally and horizontally to ensure uniform temperature.

• Heater: Anti-vibration and anti-collision fin heater (nickel-chromium alloy)

• Temperature sensor: PT100 thermal resistor (dry ball)

3. Ventilation system

There is a 50MM vent on each side of the left and right sides, which has a remarkable ventilation effect.

Power supply equipment and precautions

• Power supply: AC220V3Φ3.5KW50Hz

• Allowable Voltage variation range: ±5% of rated value (but the operating range is ±10%)

• Maximum load capacity: 3.5KW

• Maximum current: 20A

• When placing the box, make sure the distance from the wall should be greater than 100mm.

safety devices

• Temperature over-rise preventer (protecting the test object and test box)

• High-speed circuit protector (protects heating circuit)

• Motor (blower) overload thermal relay (protects the blower from overload)

• circuit breaker to protect electric motor

• Timer (automatic start and automatic stop)

• Alarm display function

Packing list：machine x1, manual x1, certificate of conformity

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
