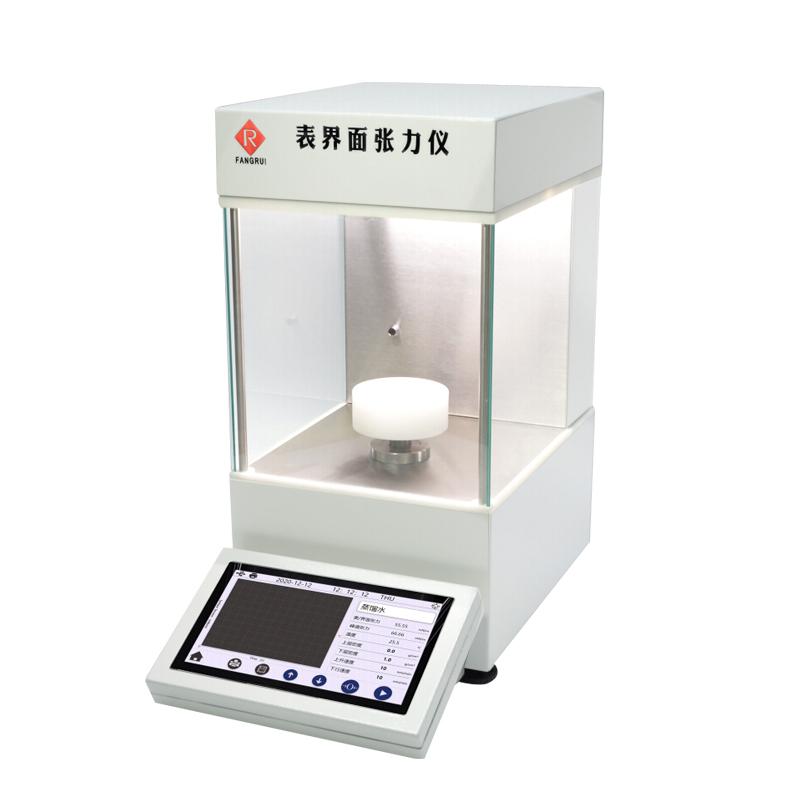

FANGRUI Q2000 platinum plate method Surface Tensiometer range 2000mN/m accuracy 0.1mN/m

Q2000 platinum plate method

Surface Tensiometer

Platinum plate method, range 0~2000mN/m, accuracy of 0.1mN/m, automatic measurement, using high-precision electromagnetic force Sensors, support platinum ring method and plate method, can test liquid Density, with LED lighting.

Features

1. The Q series tensiometer provides many expansion modules to expand the application range of the instrument, which is used to measure various characteristics of the surface and interface, which greatly improves the flexibility of its use. The main measurement principle is to accurately obtain the force between the measuring accessory or the sample to be measured when it is wetted by a liquid, the instrument uses standard methods including the DuNoüy ring method, the Wilhelmy plate method To measure the surface and interfacial tension of liquids. In addition, with the necessary optional accessories, the instrument can also be used to accurately measure the density of liquids.

2. The spacious sample room is equipped with a transparent glass sliding door, which can protect the room from disturbing air flow. A built-in electronic level helps to fine-tune the sample stage for precise force measurements.

3. The built-in measurement program can control the sample stage to ensure that there is no human interference in the measurement process. The running speed can be adjusted according to the experimental requirements and can be accurately repeated. The use of dynamic, smooth-running drives eliminates negatively affecting vibrations. In addition, the long-term drift of the force sensor is reduced to a minimum.

4. Through the 7-inch touch screen, simple and intuitive operation can be realized. Intuitive operation on the touch screen is a hallmark of the new generation of tensiometers, allowing easy control of the sample stage and other components both before and during a measurement.

5. The built-in measurement data management menu is convenient for viewing data and supports external printer operation. All measurement data files can be transferred through the U disk to be converted into Excel files, which is convenient for management, recording and arrangement of measurement data.

6. The machine program has a password management function to ensure that the data can be traced and prevent data modification and accidental deletion.

Application

• Evaluation of Surfactant Effectiveness and Efficiency by Measuring Critical Micelle Concentration

• Wetting properties of tablets, active pharmaceutical ingredients and excipients

• Wettability of paints and coatings

• Oil aging degree detection

• Coating wettability and adhesion

• Cosmetic Development

• Study on Wetting Properties of Ink

Transparent measurement and data management software ST Flash

1) The simple operation of the Q series tensiometer is closely combined with the clear and clear user guidance of the software. Our ST Flash software supports easy results management through automatic summary diagrams, comprehensive measurement reports and transparent data organization functions, and also supports CMC analysis and calculation.

2) Support data collection, and can mark the data for easy viewing and comparison.

3) The collected data is saved in TXT file format, which is convenient for viewing and conversion, and the graphic file is generated in PDF format for printing.

4) Support simultaneous comparison of up to 8 sets of data.

5) ST Flash software provides a toolkit for analyzing CMC concentration.

6) The software supports Chinese and English operation and display.

Standards

ASTM D971 Standard Test Method for Interfacial Tension of Oil-Water by Ring Method

ASTM D1331 Standard Test Method for Surface and Interfacial Tension of Surfactant Solutions

ASTM D1417 Standard Method for Testing Synthetic Rubber Latex

DIN EN 14210 Surfactants - Determination of interfacial tension of surfactant solutions by the stirrup or suspension ring method

DIN EN 14370 Surfactants - Determination of surface tension

ISO 304 Surfactants - Determination of surface tension by the pulling film method

ISO 1409 Plastics/rubber — Polymer dispersions and rubber latexes (natural and synthetic) — Determination of surface tension by the ring method

ISO 6889 Surfactants - Determination of surface tension by the pulling film method

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
