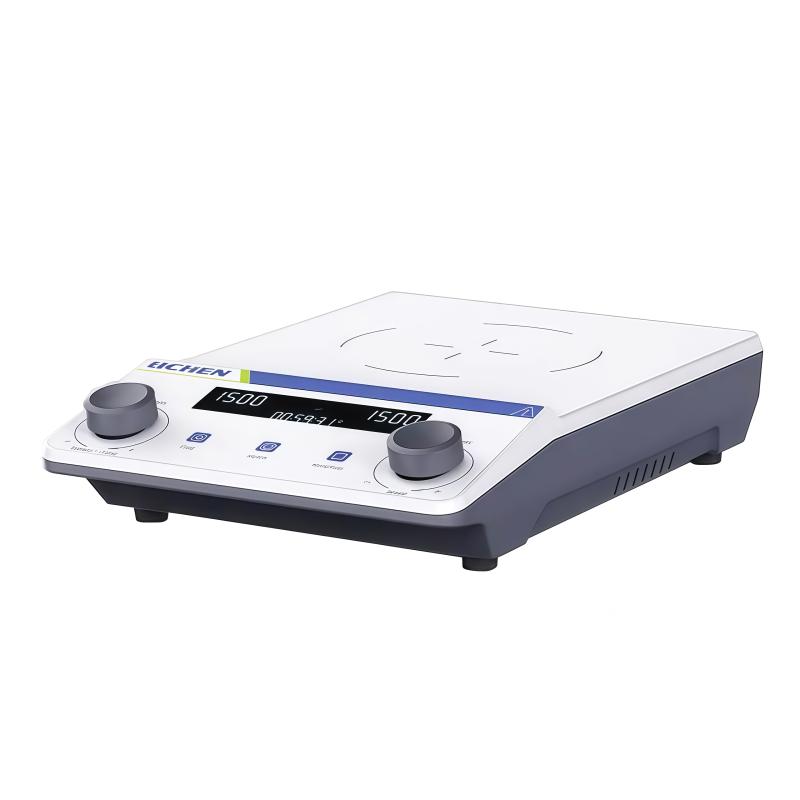

LICHEN LC-MSB-D Magnetic Stirrer LCD display, forward and reverse program control mode, DC brushless motor
LC-MSB-D
LICHEN LC-MSB-D Magnetic StirrerSPEC
LICHEN LC-MSB-D Magnetic StirrerDetails
LICHEN LC-MSB-D Magnetic StirrerPacking list
- SKU
- NB039713
- Power Supply
- AC220V
- Rated frequency
- 50Hz
- Overall power
- 24w
- display mode
- LCD
- stirring speed
- 100~1600rpm
- Speed Accuracy
- ±10rpm
- Timer Range
- 1~99h59min
- Temperature range
- /
- Temperature control Accuracy
- /
- Max. stirring Capacity
- 5L
- Panel Material
- Tempered Glass
- Pan size
- 150*150mm
- Motor type
- DC brushless motor
- net Weight
- 1.4kg
- Dimensions
- 180*270*60mm
Product Overview:
MSB series magnetic stirrer is a laboratory instrument for liquid mixing, mainly used for stirring or simultaneously heating and stirring liquid or solid-liquid mixtures with low viscosity. With the heating temperature control system, the sample temperature can be heated and controlled according to the specific experimental requirements, maintain the temperature conditions required by the experimental conditions, and ensure that the liquid mixing meets the experimental requirements.
Features
It adopts DC brushless motor, low noise, maintenance-free, and smooth operation.
The strong magnetic and high-temperature resistant magnetic steel is selected to ensure sufficient suction and torque, effectively prevent jumping, and the stirring effect is remarkable.
Integrated die-casting aluminum disc surface, uniform temperature, fast heating speed, surface ceramic spraying, corrosion resistance, anti-slip and wear resistance.
It can be directly connected to the PT 1000 temperature sensor for precise temperature control. (LC-MSB-HD models only)
LCD display, adjustable speed, time and other parameters, intuitive and clear. (LC-MSB-D, LC-MSB-HD only)
Equipped with forward and reverse rotation function, the forward and reverse rotation can be stopped in the middle of the forward and reverse rotation, and slow start. (LC-MSB-D, LC-MSB-HD only)
Equipped with program control mode, up to 6 sets of running programs can be set to meet the needs of the experimental stage. (LC-MSB-D, LC-MSB-HD only)
Series selection
Product model | LC-MSB-S | LC-MSB-H | LC-MSB-D | LC-MSB-HD |
| power supply | AC220V | AC220V | AC220V | AC220V |
| frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| The power of the whole machine | 10w | 450w | 24w | 550w |
| Display: | not | not | LCD | LCD |
| Speed range | 200-1600rpm | 200-1600rpm | 100-1600rpm | 100-1600rpm |
| Speed control accuracy | / | / | ±10rpm | ±10rpm |
| Timing range | / | / | 1-99h59min | 1-99h59min |
| Temperature control range | / | / | / | Tray ± 3°C solution ±0.5°C |
| Temperature control accuracy | / | RT-300℃ | / | RT-300℃ |
| Maximum Stirring Volume (H₂O) | 5L | 5L | 5L | 5L |
| Working tray material | toughened glass | Cast aluminum + ceramic spraying | toughened glass | Cast aluminum + ceramic spraying |
| Work area size | 150×150mm | 150×150mm | 150×150mm | 150×150mm |
| Motor type | DC brushless motor | DC brushless motor | DC brushless motor | DC brushless motor |
| net weight | 1.4kg | 2.1kg | 1.4kg | 2.1kg |
| Product size | 180×270×60mm | 180×270×85mm | 180×270×60mm | 180×270×85mm |
