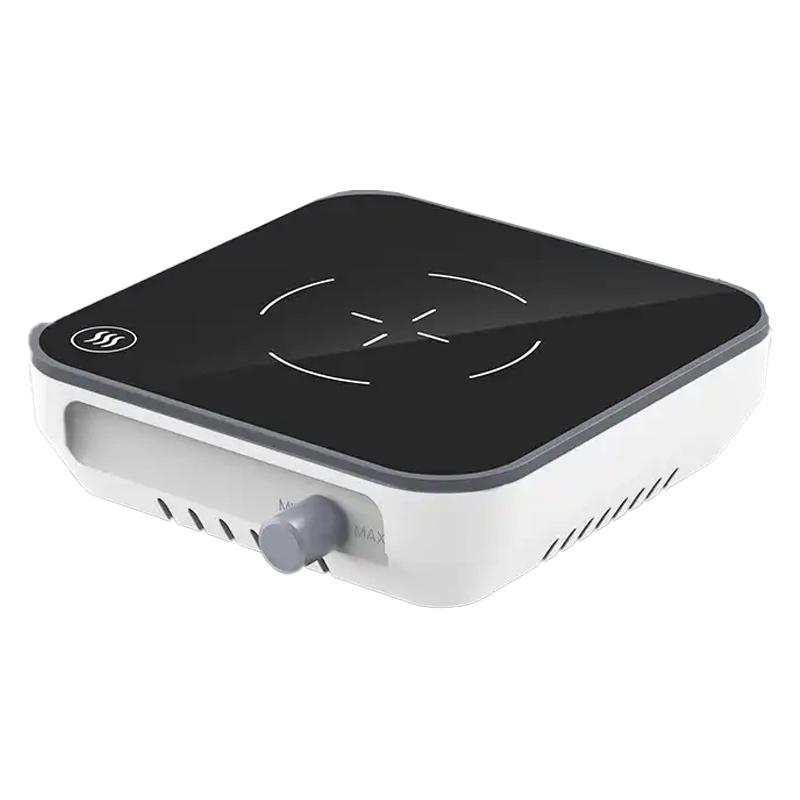

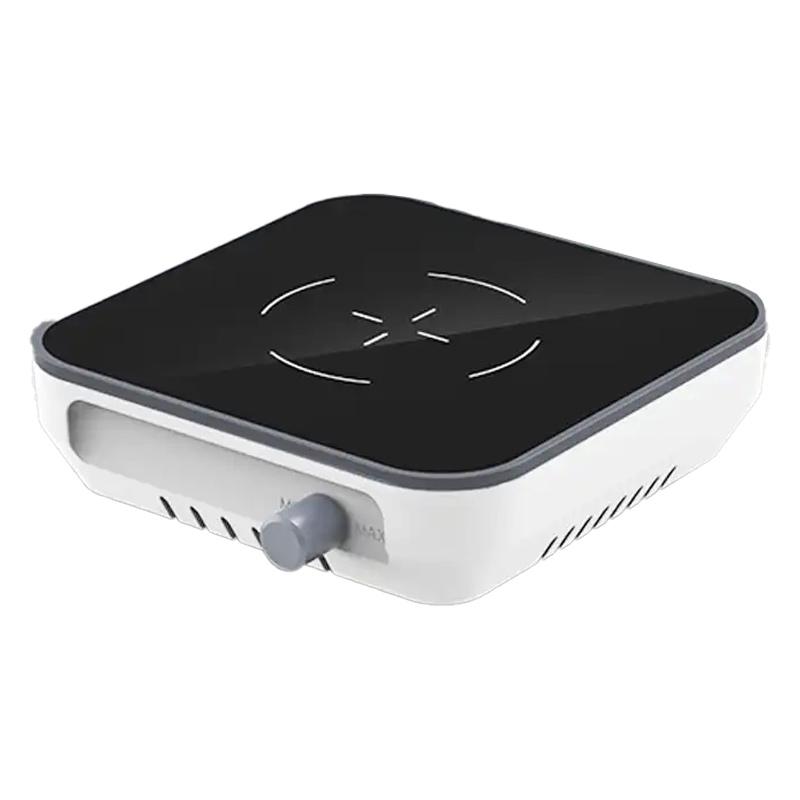

Lichen LC-MS-M1 mini magneticstirrer
LC-MS-M1
LICHEN LC-MS-M1 Mini magneticstirrerSPEC
LICHEN LC-MS-M1 Mini magneticstirrerDetails
LICHEN LC-MS-M1 Mini magneticstirrerPacking list
- SKU
- NB039715
- Input power
- AC100-240V 50-60Hz/DC3V1A
- Max. Capacity of stirring
- 500ml
- Motor type
- Miniature brushless motor
- Temperature range
- /
- Pan material
- PC
- Pan size
- 120*120mm
- Net Weight
- 0.3KG
- Dimensions
- 120*120*30mm
A magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used to stir or simultaneously heat and stir a liquid or solid-liquid mixture with low viscosity. Its basic principle is to use the principle of same-sex repulsion and opposite-sex attraction of magnetic field, and use the magnetic field to promote the magnetic stir bar placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to the specific experimental requirements, and the temperature conditions required for the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.
Features
◇ Portable design, small size and light weight
◇ Micro brushless DC motor, stepless speed regulation, low noise, maintenance-free, stable operation
◇ Use strong magnetic and high-temperature resistant magnets to ensure sufficient suction and torque, and good stirring effect
◇ The body shell is made of PC plastic, which is corrosion-resistant, strong and flame retardant
◇ Fully enclosed tempered glass Heating Plate to prevent liquid inflow and protect instrument components (LC-MS-M2 owned)
◇ The temperature of the heating button can be adjusted in two levels, and there is an indicator light prompt (LC-MS-M2 has)
Serial models
| Product model | LC-MS-M1 | LC-MS-M2 |
| Enter the power supply | AC100-240V 50-60Hz/DC3V1A | AC100-240V 50-60Hz/DC12V2A |
| The power of the whole machine is W | 3w | 24W |
| Maximum stirring capacity (H20) | 500ml | |
| Speed range | 0-2000RPM | |
| Motor type | Micro brushless motor | |
| Temperature control range | / | Low temperature max: room temperature +15°C |
| High temperature max: room temperature +30°C | ||
| Temperature control accuracy °C | / | ±5% |
| Work Tray Material | PC | Tempered glass + PC |
| Pallet size | 120×120mm | 120×120mm (Heating plate φ90mm) |
| net weight | 0.3KG | 0.4KG |
| Product Dimensions (L×W×H) | 120×120×30mm | 120×120×30mm |
