CHINA Flexographic Color Developer NBC-100

SE
Flexo monochrome proofing, Printing area 100x130mm, plate thickness DuPont 1.14mm thick, suitable for flexo water-based, UV ink, lithography, letterpress or UV ink.
$8434.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO
Similar products

KONYO COLOR NBC-100 Flexographic color display instrumentSPEC

KONYO COLOR NBC-100 Flexographic color display instrumentDetails

KONYO COLOR NBC-100 Flexographic color display instrumentPacking list

SKU
NB039722
Applicable object
Monochromatic proofing (such as color scheme, test, etc.)
Input power
220V, 50/60Hz
power
400 w
Printing ink
Dropper ink
Film thickness
0.01-2mm (bendable material)
Proofing material size
190x240mm
Printing Area
100x130mm
Plate area
150x150mm
plate thickness
DuPont: 1.14mm thick. Tesa double-sided tape Film thickness: 0.38mm
Printing roller and screen roller pressure
2mm soil adjustable, scale display pressure
Plate Roller and Plate Pressure
Adjustable 2mm soil, with scale display pressure
Adjustable print speed
0-80 m/min
Pottery and porcelain drum specifications
(US) 70x210mm
Pottery and porcelain roll line quantity
Standard 600LPI (70-1200 lines can be customized), BCM: 1.6-5.3 lines
Apply to
Flexo water-based, UV ink, lithography, letterpress or UV ink
Applicable proofing materials
Paper, Plastic film, Non-woven fabric, Napkin, Gold and silver cardboard, etc
Dimensions
450*800*240mm
Instrument net Weight
110KG
Scraper pressure
Pneumatic, constant pressure design of scraper
NBC-100
Flexographic color display instrument
Flexo monochrome proofing, Printing area 100x130mm, plate thickness DuPont 1.14mm thick, suitable for flexo water-based, UV ink, lithography, letterpress or UV ink.

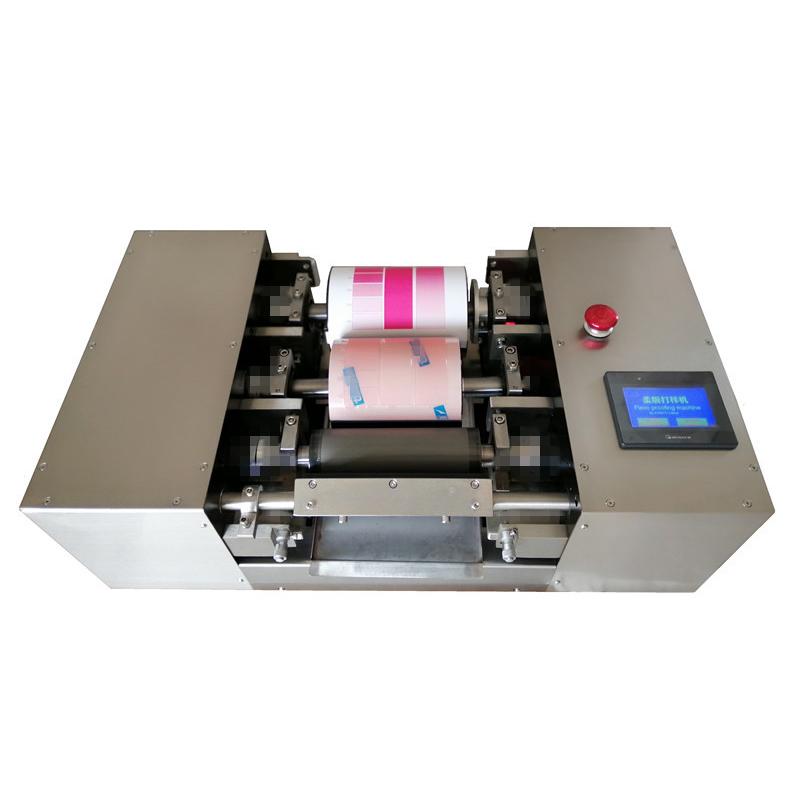

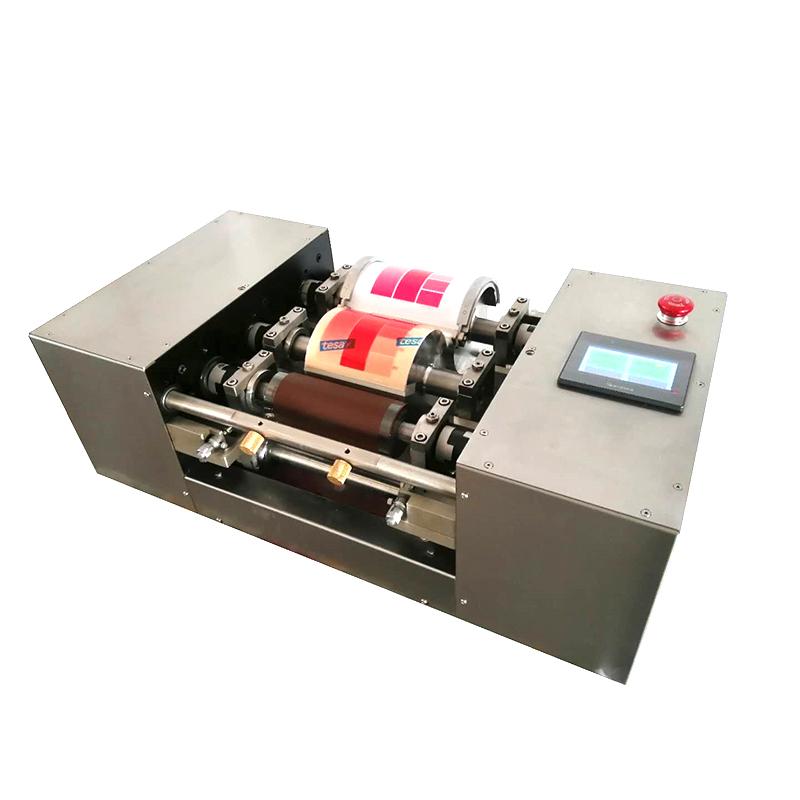

CHINA Flexographic Color Developer NBC-100 Picture

Advantages

1. After the ceramic roller rotates and the ink is uniform, the printing material and the plate cylinder rotate synchronously for two weeks to complete the proofing work. Ceramic rollers and substrate cylinders run synchronously with printing plates to ensure proofing quality.

2. The four structures of scraper, ceramic roller, printing plate cylinder and printing plate cylinder can adjust the left and right pressure independently, and the adjustment is flexible;

3. The screen roller and scraper are easy to disassemble and assemble

4. Large drum structure, simple and convenient installation of printing materials, plate loading and plate cleaning.

5. UV curing machine drying equipment is optional

6. This instrument can be used for coating, monochrome, and dot pattern proofing

KONYO COLOR NBC-100 Flexographic Color Exposure Instrument Details Figure 1

FAQ
QI want to do flexographic monochrome proofing, which instrument is suitable?
A The NBC-100 flexographic colorimeter is recommended. It adopts the synchronous rotation technology of ceramic rollers to ensure that the inks are evenly distributed and suitable for monochrome proofing and color scheme testing. The printing material and the printing plate roller can be synchronized for two weeks to complete the proofing. The operation is simple, and the proofing mass is stable and reliable.
QWhat materials can this instrument handle?
A NBC-100 is suitable for paper, Plastic film, non-woven fabrics and other bendable materials, with a thickness range of 0.01-2 mm. Its large drum design makes material installation and version change particularly convenient, and with optional UV curing equipment, it can efficiently complete Spreader or dot pattern proofing.
