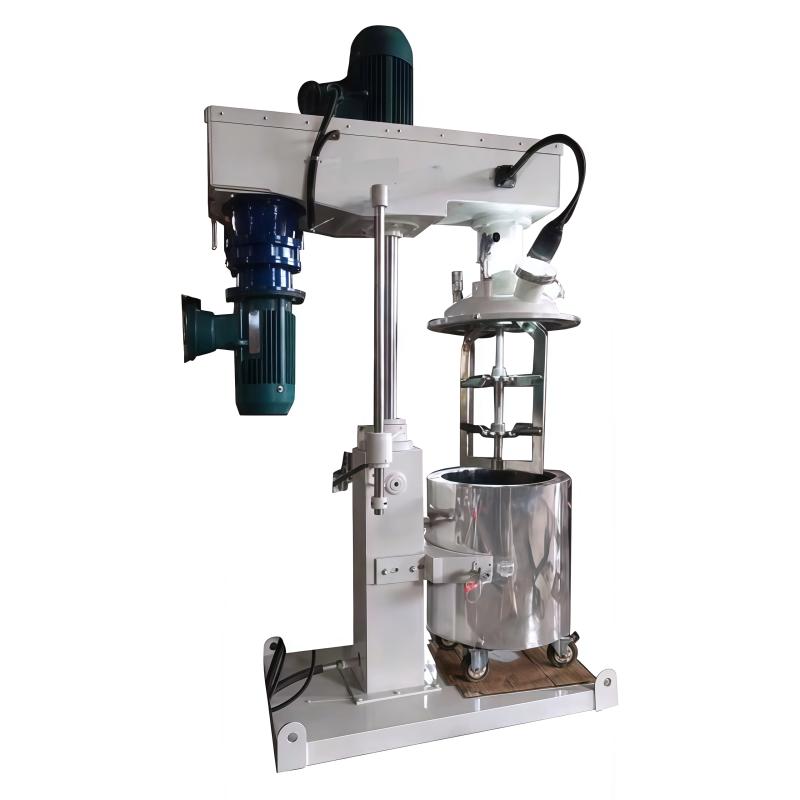

Muxuan MXF-T50 Disperse Stirrer Concentric Double Shaft, Hydraulic Lifting

MXF-T50

Disperse Stirrer (concentric biaxial)

Concentric dual-shaft Disperser, hydraulic lift, speed range 0~3000rpm, with 60L volume tank, explosion-proof motor and electric control box.

Equipment introduction

MXF series hydraulic lifting concentric double-shaft multi-functional powerful dispersing mixer is a product with powerful dispersing and stirring functions developed on the basis of hydraulic lifting single-shaft mixer. This product has good adaptability to medium-high viscosity and thixotropic materials. Various stirring methods are available, such as anchor type, butterfly type, frame type, etc., and dispersion and stirring can be carried out at the same time. The characteristics of the customer's material and the production process require non-standard customization.

Principle

Driven by the power unit, the stirring blades rotate in a fixed direction; during the rotation process, the materials are driven to rotate axially and radially. The materials in the mixer have axial movement and circular movement at the same time, so there are several stirring forms such as shear stirring and diffusion stirring at the same time. A scraper is installed on the stirring paddle, which is close to the wall of the barrel for scraping. When the scraper rotates with the agitator, the material on the wall of the barrel is completely scraped off, so that there is no residual material on the wall of the barrel and the mixing effect is improved at the same time. The dispersing disc runs at a high speed to make the material flow in a ring shape, generate a strong vortex, and descend to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between particles to achieve rapid dispersion and dissolution. The agitating disc produces a better radial effect through circular motion, accelerates the material circulation, and improves the dispersion efficiency. The hydraulic lift mixer drives the hydraulic plunger to lift through the hydraulic pump, driving the entire transmission mechanism and the working group to lift.

Features

1. High stirring efficiency and good product quality

The double-shaft multi-functional powerful dispersing mixer is composed of a scraper-type agitator and a high-speed disperser. The two sets of agitators work at the same time to make the material subject to strong shearing and mixing to achieve the purpose of rapid mixing; the agitator is generally divided into anchor type There are two types of mixing and butterfly, and a better mixing form can be designed for materials with different viscosities and specific gravity and different production process requirements.

2. The material does not stick to the wall, and the discharge is clean

A scraper is installed on the agitator, which is close to the barrel wall for scraping. After the barrel wall is finished by a vertical lathe, it is then polished by an automatic polishing machine to ensure that the movable scraper completely scrapes off the material on the barrel wall when it rotates, so that there is no retention on the barrel wall. materials to improve the mixing effect.

3. Strong non-standard

Various types of non-standard products can be customized, such as explosion-proof type, vacuum type, heating type, intelligent type with PLC control, and the material can be customized SS316L stainless steel or sprayed with special materials according to requirements.

Packing list：Complete-built unit x1, manual x1, certificate of conformity

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
