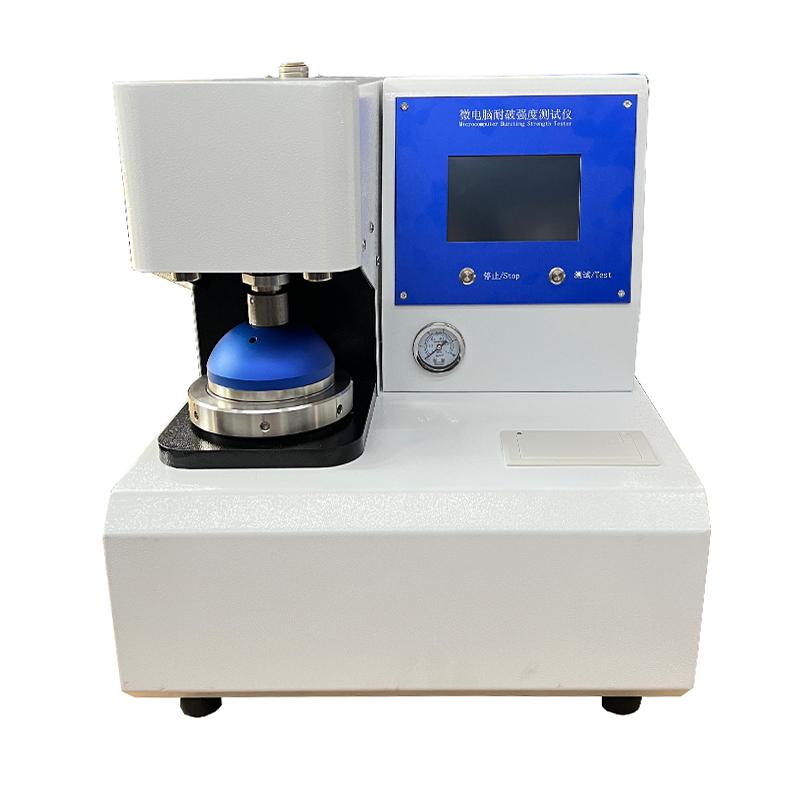

Essence LD-NP-02 Burst Strength Tester Cardboard Classic, Horizontal Touch Screen Version
SE
LD-NP-02
JingHuaYiQi LD-NP-02 Burst strength TesterSPEC
JingHuaYiQi LD-NP-02 Burst strength TesterDetails
JingHuaYiQi LD-NP-02 Burst strength TesterPacking list
- SKU
- NB039734
- Power
- AC 220V±10% 2A 50Hz
- Error of indication
- ±0.5%
- Indication of variability
- ≤0.5%
- resolution
- 0.1kPa
- Measuring range
- 50 ~ 1400kPa
- Oil delivery speed
- 95±5mL/min
- Clamping Force
- ≤ 1200Kpa
- Air compressor
- Pressure (0.6~ 0.7) MPa; Displacement (0.02~ 0.3) m3/min (non-standard)
- Film resistance
- Pressure range is (30 ± 5) kPa at bulge height (9 ± 0.2) mm
- System tightness
- 1Min pressure drop < 10% FS
- Human Machine Interface
- 5-Inch color touch screen, Chinese and English menus
- printout
- Modular integrated thermal printer
- Communication interface
- WAN port (optional)/USB (optional)
- Operating Environment
- Indoor temperature (20 ± 10) ℃; Relative Humidity < 85%
- Dimensions
- 400*350*500mm
- Weight
- About 40Kg
Applications
The paper bursting strength Tester is designed according to the international general Mullen method. It is a special instrument for testing the bursting strength of various papers. Its various performance parameters and technical indicators comply with ISO2758 "Paper - Determination of bursting strength" And GB454 "Determination of bursting strength of paper" and other standards, it is suitable for the bursting strength test of various papers, and can also be used for non-paper materials such as silk and cotton cloth.
The paper burst Tester has the functions of testing, converting, adjusting, displaying, memorizing, printing and other parameters included in the standard. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable in performance.
technical features
It has the function of prompting for unplaced samples to reduce misoperation;
Over-range alarm function to protect precision sensors;
Using high-speed ARM processor, high degree of automation, fast data collection, fully automatic measurement, intelligent judgment function, safe and reliable;
Adopt 32-bit high-precision AD converter (resolution up to 1 / 10,000,000) and high-precision, stable performance pressure sensor
Device, to ensure the rapidity and accuracy of instrument force value data collection;
Can display pressure and deformation curves, real-time display of pressure;
Modular integrated thermal printer is adopted, with fast printing speed and convenient paper replacement;
A variety of unit options, can be switched between kPa, kgf/cm2, lbf/in2;
Chinese and English bilingual operation menu (Chinese-English), and can be switched at any time;
Standards
GB/T454 "Determination of bursting strength of paper"
ISO2758 "Paper - Determination of bursting strength"
