Essence LD-YSY-01 Side Pressure Ring Compression Strength Tester, Button Model

SE
Detect the edge compression strength (ECT), flat compression strength (FCT), adhesive strength (PAT) and flat compression strength (CMT) of the paper core with a diameter of less than 60mm, in line with GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6.
$929.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO

JingHuaYiQi LD-YSY-01 Side pressure ring Compressive Strength TesterSPEC

JingHuaYiQi LD-YSY-01 Side pressure ring Compressive Strength TesterDetails

JingHuaYiQi LD-YSY-01 Side pressure ring Compressive Strength TesterPacking list

SKU
NB039737
Force range
0~3000N
Accuracy
≤±1%
resolution
0.01N
Plate parallelism
≤0.05mm
Pressurization speed
12.5±1mm/min
Upper pressure plate diameter
124mm
Lower pressure plate diameter
127mm
test height interval
55mm
Human Machine Interface
3.2 in 320 * 240 dot matrix liquid crystal display, real-time display of force value changes
printout
Modular integrated thermal printer
Operating Environment
Temperature (20 ± 10) ℃, humidity < 85%
LD-YSY-01
Side pressure ring Compressive Strength Tester
Detect the edge compression strength (ECT), flat compression strength (FCT), adhesive strength (PAT) and flat compression strength (CMT) of the paper core with a diameter of less than 60mm, in line with GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6.

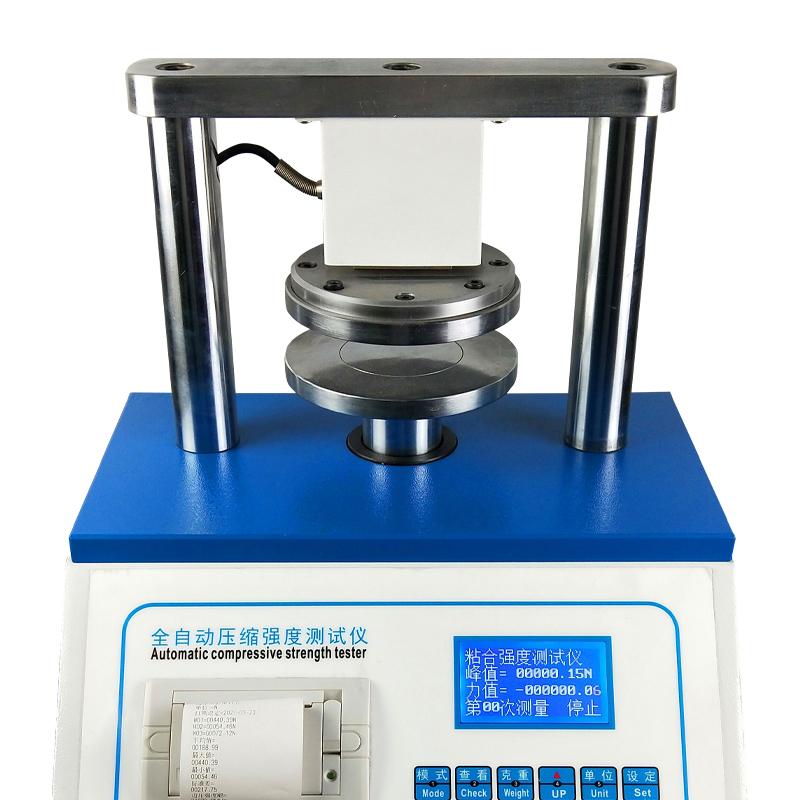

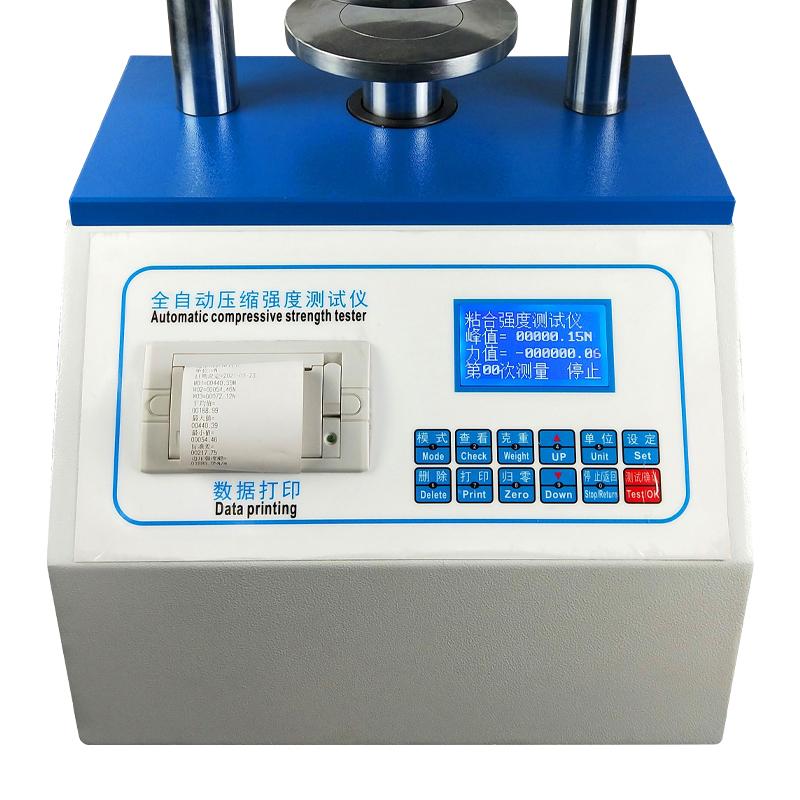

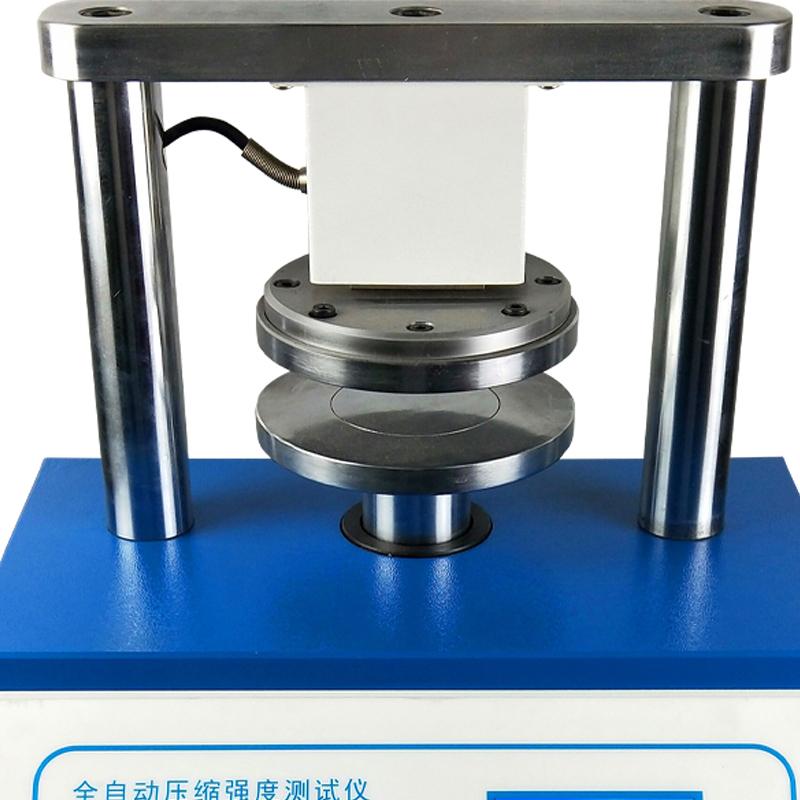

Essence LD-YSY-01 Side Pressure Ring Compression Strength Tester, Button Model Picture

Applications

The automatic compressive strength Tester is a testing instrument for testing paper ring compressive strength, cardboard edge compressive strength, corrugated cardboard adhesive strength, corrugated cardboard flat compressive strength, etc. Paper mills are usually used to test paper with a thickness of 0.15-1.00mm Ring crush strength (RCT). Cardboard, carton factories and carton users are usually used to test the edge crush strength (ECT), flat crush strength (FCT), adhesive strength (PAT) and flat crush strength (CMT) of paper cores with a diameter less than 60mm of corrugated board. The instrument is an auxiliary test tool required by papermaking enterprises, cardboard production enterprises, carton production enterprises, carton user enterprises and quality supervision and inspection departments.


Standards

GB/T 2679.8 "Determination of Ring Crush Strength of Paper and Board"

GB/T 6546 "Determination of Edge Crush Strength of Corrugated Cardboard"

GB/T 6548 "Determination of Adhesion Strength of Corrugated Cardboard"

GB/T 2679.6 "Determination of Flat Compression Strength of Corrugated Base Paper"


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
