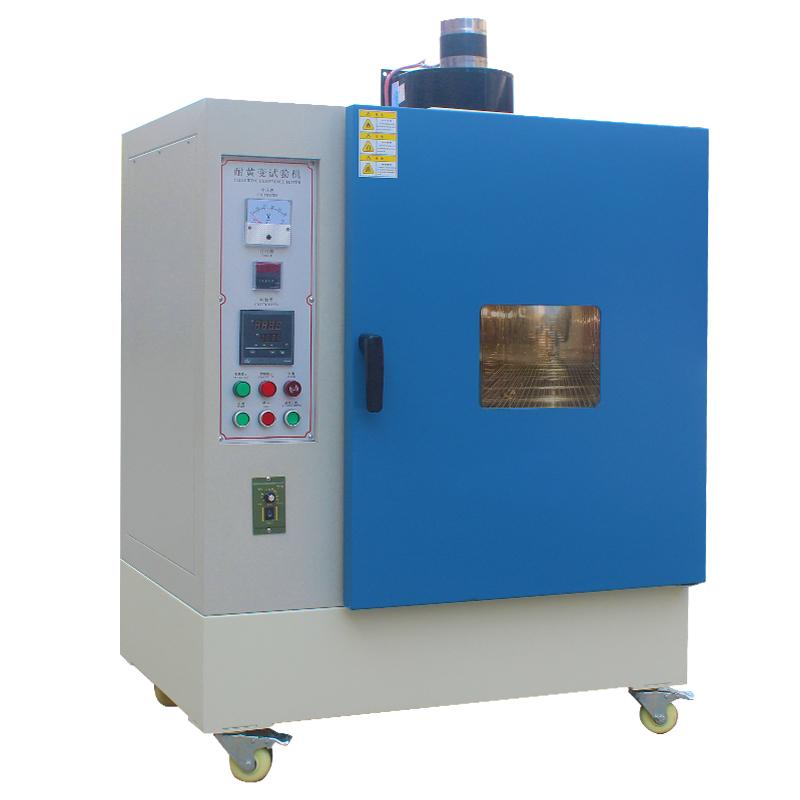

CHINA ASR-HB-150B yellowing resistance testing machine without turntable
Without turntable, Light source UV300W bulb, Heating mode is hot air circulation, RT +~ 200 ℃ temperature range, control accuracy +/- 3 ℃, can do two tests: aging and yellowing resistance.
Model：
ASR-HB-150B
AISRY ASR-HB-150B Yellowing resistance testing machineSPEC
AISRY ASR-HB-150B Yellowing resistance testing machineDetails
AISRY ASR-HB-150B Yellowing resistance testing machinePacking list
- SKU
- NB039755
- Inner box size
- 600*500*750mm
- Inner box material
- SUS #304 Stainless Steel
- Outer box size
- 980*700*1300mm
- Enclosure Material
- Cold plate paint
- Temperature range
- RT+10~70℃
- Light source
- Yellowing resistant bulb, OSRAM 300W * 1
- Temperature Uniformity
- ±1℃
- Rotation speed of turntable
- Φ330mm、10±2rpm
- time setting
- 1-999 hours adjustable
- temperature Controller
- LWD digital thermometer
- Weight
- 89KG
- wavelength
- 365-400
- Recommended service life
- 1000H
- Power
- 220V 2KW
- Volume
- 225L
ASR-HB-150B
Yellowing resistance testing machine
Without turntable, Light source UV300W bulb, Heating mode is hot air circulation, RT +~ 200 ℃ temperature range, control accuracy +/- 3 ℃, can do two tests: aging and yellowing resistance.
Introduction
This product can be tested in two ways: aging and yellowing resistance. Aging: This machine can promote the deterioration of vulcanized rubber to calculate the change rate of tensile force and elongation before and after heating. It is generally believed that one day of testing at 70°C is theoretically equivalent to 6 months of exposure to the atmosphere; yellowing resistance; this The machine is simulated in the atmospheric environment, and it is exposed to the ultraviolet rays of the sun. It is generally considered that is tested at 50°C for 9 hours, which is theoretically equivalent to 8 months in the atmosphere.
design standards
JIS-P8127, ASTMD1148
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Standard
