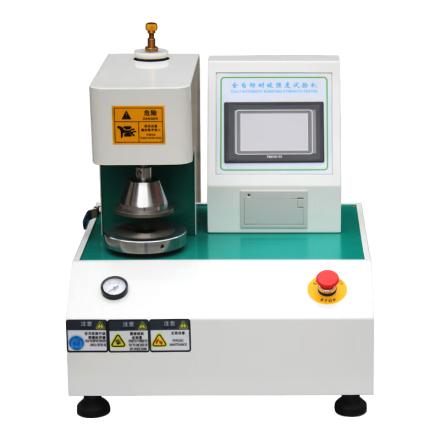

AISRY ASR-8502B Automatic breaking Strength Tester (breaking machine touch screen model) Specifications
Search
Brand：AISRY
Model：ASR-8502B
Name：Automatic breaking Strength Tester (breaking machine touch screen model)
Specifications
| Measuring range | Cardboard: 250~5600 KPa; Paper: 50~1600 KPa |
| Clamping Force | Cardboard: > 400 KPa; Paper: > 390KPa |
| resolution | 0.1 KPa |
| Indication Accuracy | ≤±1 %F.S |
| Oil delivery speed | 175 ± 5mL/min (Cardboard); 95 ± 5mL/min (Paper) |
| Motor Specifications | Cardboard: 120W; Paper: 90W |
| Film Resistance - Cardboard | When the bulge is 10 mm ± 0.2 mm, the pressure is 170~220KPa; when the bulge is 18 mm ± 0.2 mm, the pressure is 250~350 KPa |
| Film Resistance - Paper | Pressure 30 ± 5 KPa at 9 mm ± 0.2 mm bulge |
| room temperature | 20℃±10℃ |
| Power | AC220V ± 22V, 50HZ, maximum current 1A, the Power should be reliably grounded |
| Relative Humidity | <85% |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/39766/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
