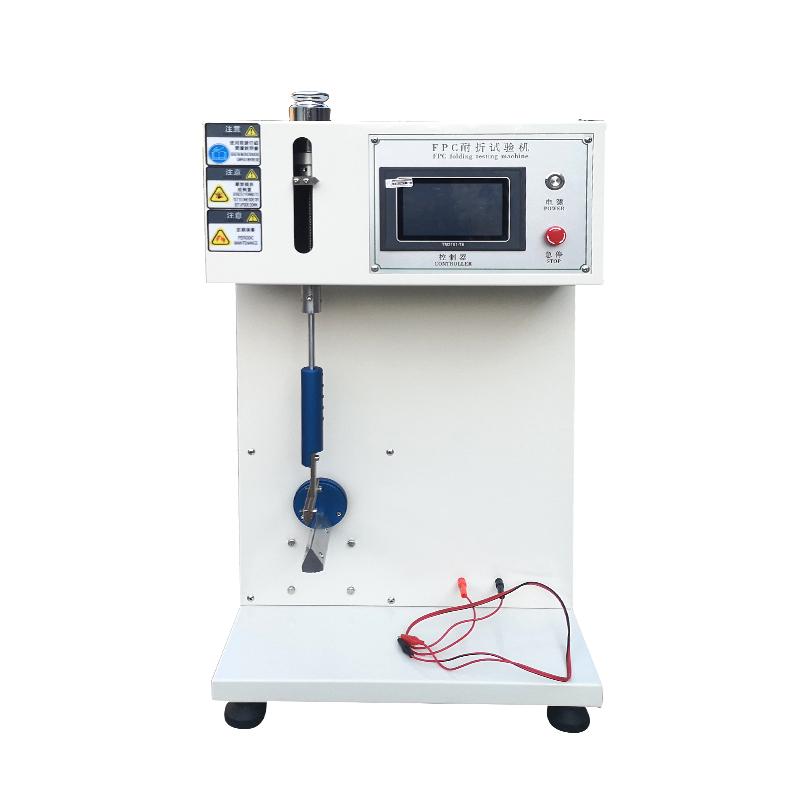

CHINA ASR-FPC1 FPC Folding Tester
ASR-FPC1
AISRY ASR-FPC1 FPC folding TesterSPEC
AISRY ASR-FPC1 FPC folding TesterDetails
AISRY ASR-FPC1 FPC folding TesterPacking list
- SKU
- NB039769
- test station
- 1
- test angle
- 10~180 degrees (touch screen digital setting)
- Test speed
- 10-200 times/minute (touch screen digital setting; stepper motor 60 times limit speed; servo motor up to 120 times limit speed)
- Test Travel
- 45~ 100Mm (manually adjustable)
- Maximum width and opening width of test fixture
- 100mm
- number of trials Counter
- 0~999999 times (the touch screen number can be preset, and the number of times reached and the product is automatically stopped when broken)
- Machine size
- 450×380×700mm
- Machine Weight
- About 45kg
- Power
- AC220V、50HZ
Introduction
This machine is mainly used for flexing test of circuit boards (commonly known as flexible circuit boards) with flexing resistance; such as mobile phones, PDAs, electronic dictionaries, laptops and other electronic products such as FPC soft boards for flexing resistance and flexing life testing tests.
Features
1. This machine is driven by a stepping motor, with high precision and accurate positioning, low noise, and can be used for a long time;
2. Program-controlled origin reset, no need to align the fixture to the original position by hand;
3. This machine uses a touch screen display controller for program input;
4. The test angle, speed, number of tests, and the return of the motor to the origin can be set and counted automatically. When the product is bent to a broken line and cannot be powered on, it can automatically stop the operation.
