ST9450A + infrared thermal imagery instrument
SEThis product is an infrared thermal imagery instrument combining surface temperature measurement and real-time thermal images. Temperature measurement range -20 ℃~ 550 ℃, temperature measurement resolution 0.1 ℃, field of view 56 ° x42.2 °, IFOV3.8mrad, free focus
$350.94/set
PromotionLoading...
Coupon
Model：
ST9450A+
SMART SENSOR ST9450A+ Infrared thermal imagery instrumentSPEC
SMART SENSOR ST9450A+ Infrared thermal imagery instrumentDetails

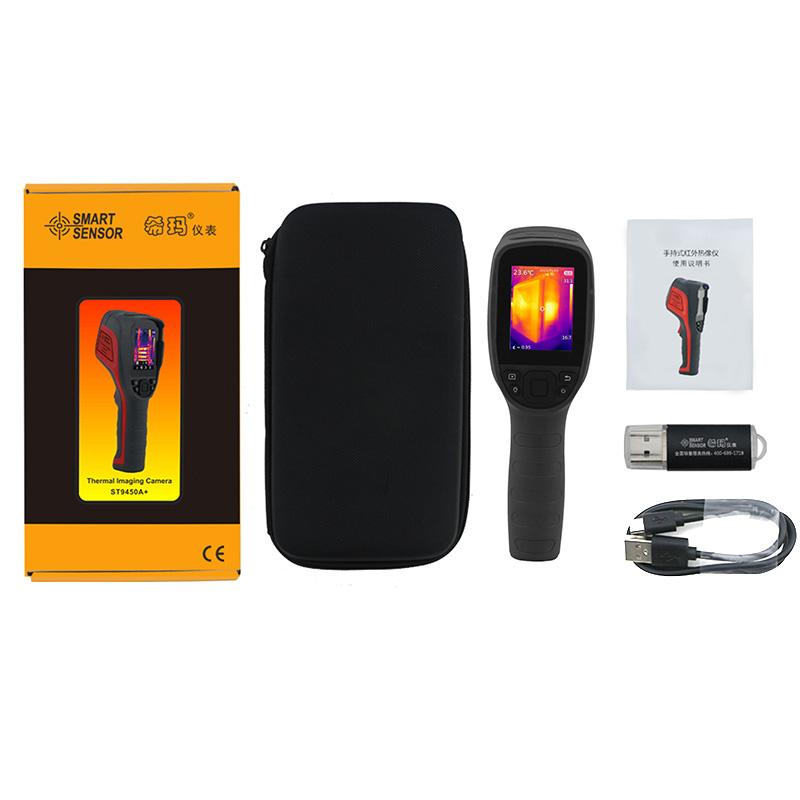

SMART SENSOR ST9450A+ Infrared thermal imagery instrumentPacking list
- SKU
- NB039784
- temperature measurement range
- -20~550℃
- temperature measurement resolution
- 0.1℃
- Detector type
- Vanadium oxidation uncooled infrared focal plane detector
- Corresponding band
- 8~14um
- Pixel size
- 12um
- NETD
- <50mK
- Field of view
- 56°×42.2°
- spatial resolution
- 3.8mrad
- Focusing method
- Focus free
- Accuracy
- ±2℃/±2%
- detector resolution
- 256x192
- Temperature measurement tool
- Center point temperature measurement/cold point hot spot tracking
- Image display mode
- Thermal imagery dual light fusion PIP IMIX visible light
- pseudo-color
- 7 kinds
- Temperature alarm
- Full frame high temperature/low temperature alarm
- Photo function
- Support, with temperature data
- quadratic analysis
- Equipped with PC analysis software for secondary analysis of data
- Display
- 2.8"，240*320
- lighting
- LED fill light
- storage device
- Standard 16GB SD card, support expansion
- Temperature unit conversion
- Celsius/Fahrenheit/Kelvin
- Working hours
- 11H@25 ℃ indoor
- Drop protection
- 3m
- Power battery
- Built-in rechargeable lithium battery
- Product net weight
- 522g
- Dimensions
- 222.3*74.7*84.3mm
ST9450A+
Infrared thermal imagery instrument
This product is an infrared thermal imagery instrument combining surface temperature measurement and real-time thermal images. Temperature measurement range -20 ℃~ 550 ℃, temperature measurement resolution 0.1 ℃, field of view 56 ° x42.2 °, IFOV3.8mrad, free focus
product description
This product is an infrared thermal imager that combines surface temperature measurement and real-time thermal images. While traditional infrared thermometers need to measure each component individually, thermal imaging cameras save time by not needing to do so. Potential problems can be clearly displayed on the color display, and the center point measurement cursor can quickly and accurately locate and measure the temperature of the target object.
This product is widely used in medical treatment, fire protection, archaeology, transportation, agriculture, geology, energy, refining, electronic manufacturing and other fields. It is the trusted choice for electricians and maintenance technicians, and can be used to quickly find problem areas.
FAQ
QInfrared Thermometer commonly used for 10KV cables is required at the construction site. Is there any recommendation?
A
Thermal Imaging Camera ST9450A is recommended.
