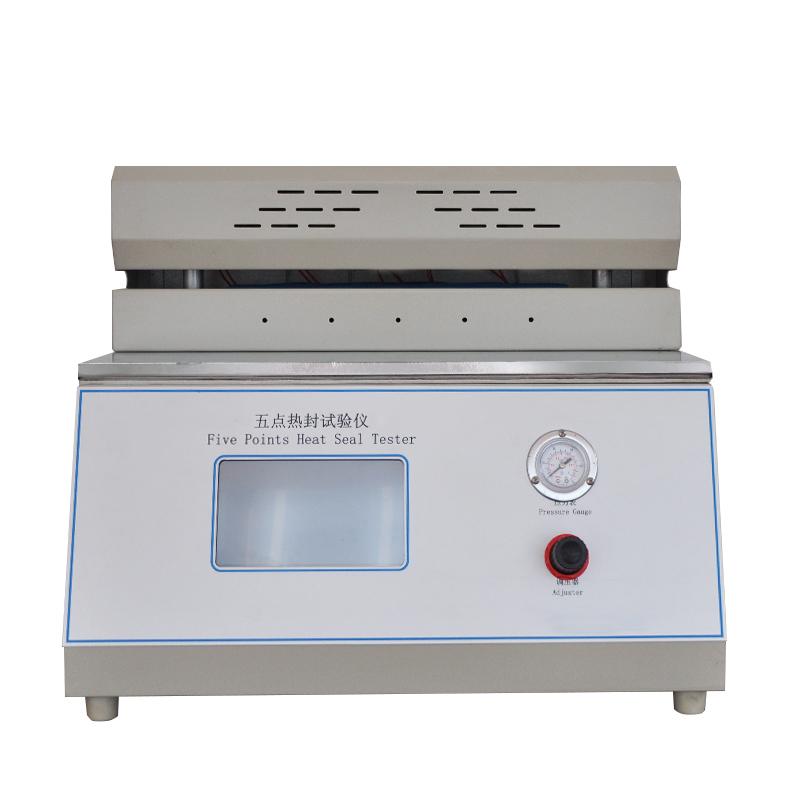

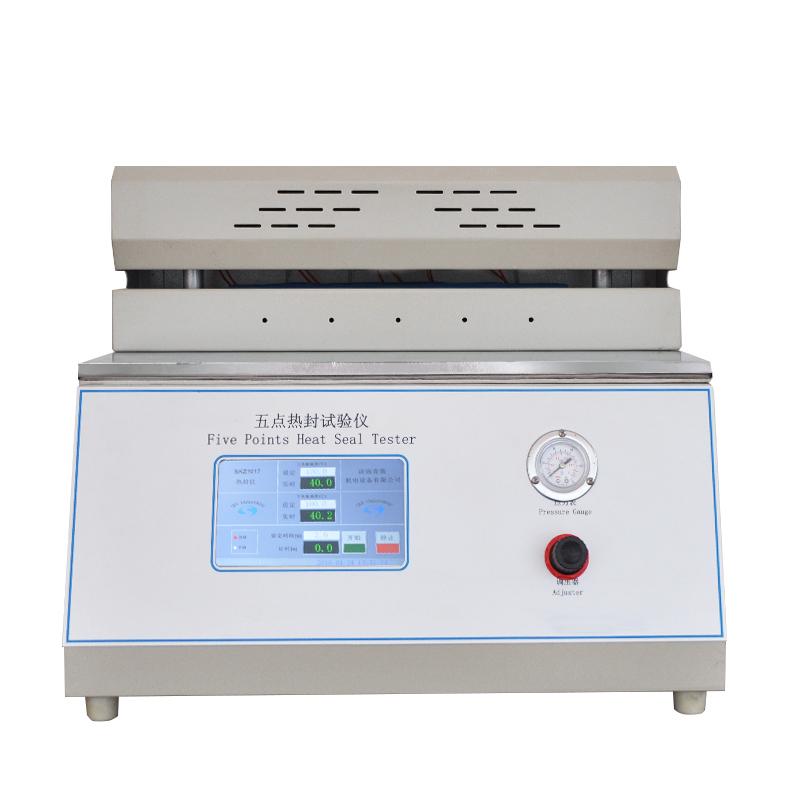

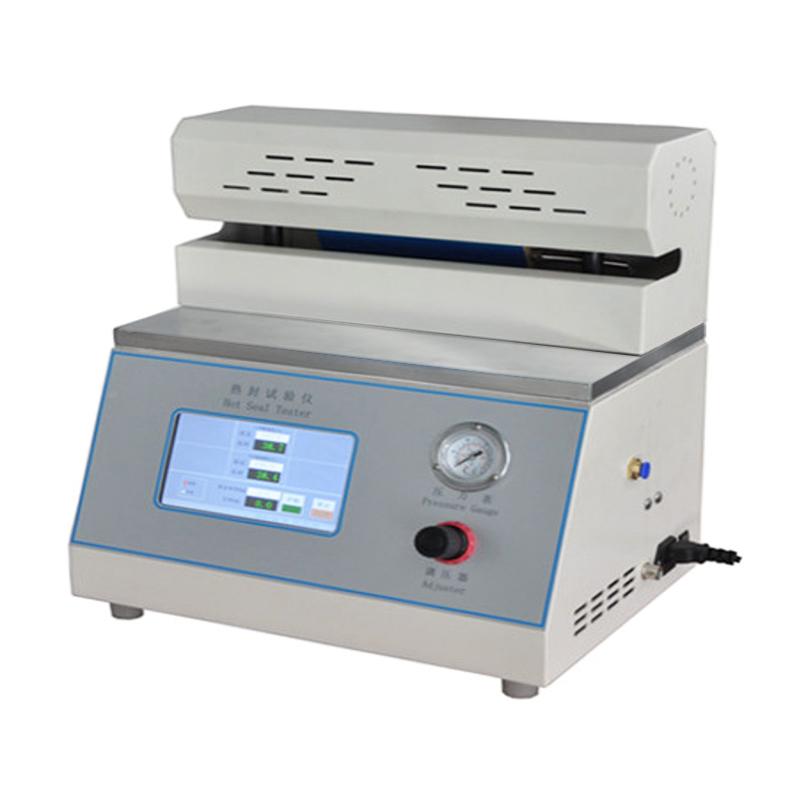

Heat sealing Tester ZY-RF-S1 five-point heat sealing Tester, touch screen model

ZY-RF-S1

Five point heat sealing instrument

Hot sealing method, double heating, heat sealing temperature RT +~ 250 ℃, temperature control accuracy +/- 0.2 ℃, heat sealing time 0.1~ 999.9s, heat sealing pressure 0.05~ 0.7MPa, heat cover 180 * 10mm (can be customized).

Introduction

The ZY-RF-S1 Heat Sealing Tester uses a hot press sealing method to test the heat sealing temperature, time, pressure, and other parameters of plastic films, flexible packaging composite films, coated paper, and other heat-sealed composite films. Due to differences in melting point, thermal stability, flowability, and thickness of heat sealing materials, their sealing performance can vary significantly, and the sealing process parameters may differ greatly. The ZY-RF-S1, with its standardized design and regulated operation, ensures precise heat sealing test data, providing guidance for large-scale industrial production.

Features

Microcomputer control, color LCD touchscreen display

Menu-style interface, PVC operation panel, digital PID temperature control

Manual and foot pedal test start options

Independent temperature control for upper and lower heat sealing heads, customizable sealing surface options

Burn protection safety design ensures safe and convenient use for operators

Applications

Suitable for heat sealing tests on various film materials, such as plastic films, composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foils, and aluminum foil composite films. The sealing surface is a smooth plane, and the sealing width can be customized as required. It can also be used for sealing plastic tubing.

Standards

The instrument uses a hot press sealing method, where the sample is placed between the upper and lower heat sealing heads and sealed under preset temperature, pressure, and time. The device complies with multiple national and international standards, such as: QB/T 2358, ASTM F2029, YBB 00122003.

Packing list：host (foot switch) X1, manual X1, certificate X1, warranty card X1 (the air source interface of this machine is a 8mm polyurethane tube; the air source is provided by the user)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
