BOSEAN K-G60 (O2) Industrial Oxygen Gas Alarm Detector

SE
Fixed type, measuring combustible gas (O2), range 0-30%, multi-parameter LCD digital display, full software calibrating, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.
$207.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con

Bosean K-G60（O2） Stationary Gas DetectorSPEC

Bosean K-G60（O2） Stationary Gas DetectorDetails

Bosean K-G60（O2） Stationary Gas DetectorPacking list

SKU
NB039797
Detection gas
Oxygen O2
range
0 ~ 30% VOL
Optional range
0 ~ 30% VOL
resolution
0.1% VOL
alarm point
Low: 19.5% VOL High: 23.5% VOL
Sensors
Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors
Installation method
Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional
Transmission method
Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage
DC24V±15%
Detection Accuracy
≤±3%F.S
linearity error
≤±1%F.S
Response time
≤20s
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Explosion-proof sign
Exd II T6 GB
Explosion-proof Certificate number
CNEx16.0449
Protection class
IP65
Connectivity
M20x1.5、G1/2
Connection Cable
3X1.5mm2 Shielding Cable
Operating Pressure
86 ~ 106Kpa
relay
Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature
-20~50℃
Operating Humidity
≤ 95% RH, no condensation
K-G60（O2）
Stationary Gas Detector

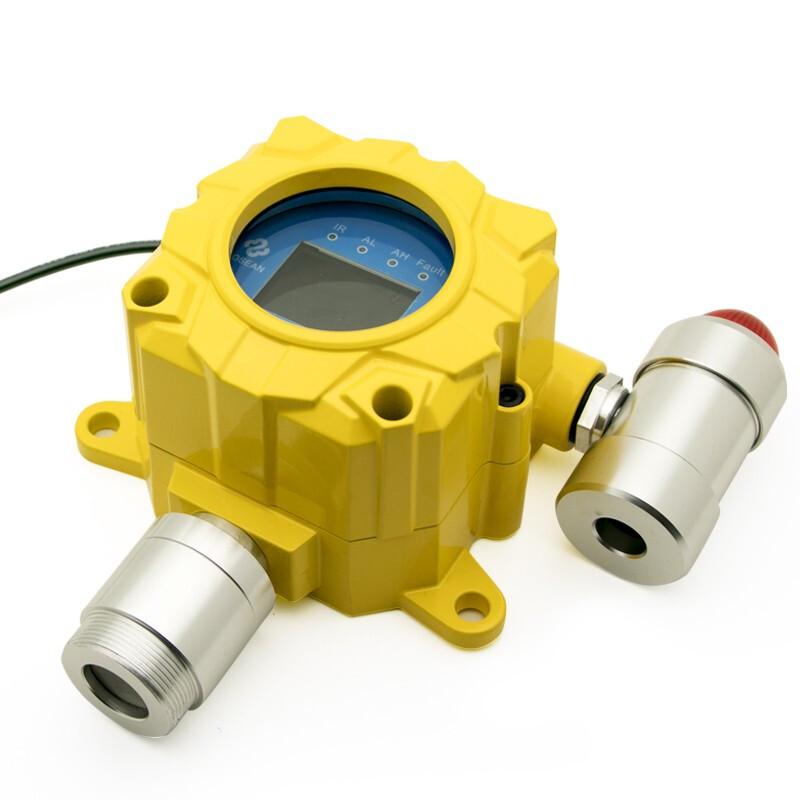

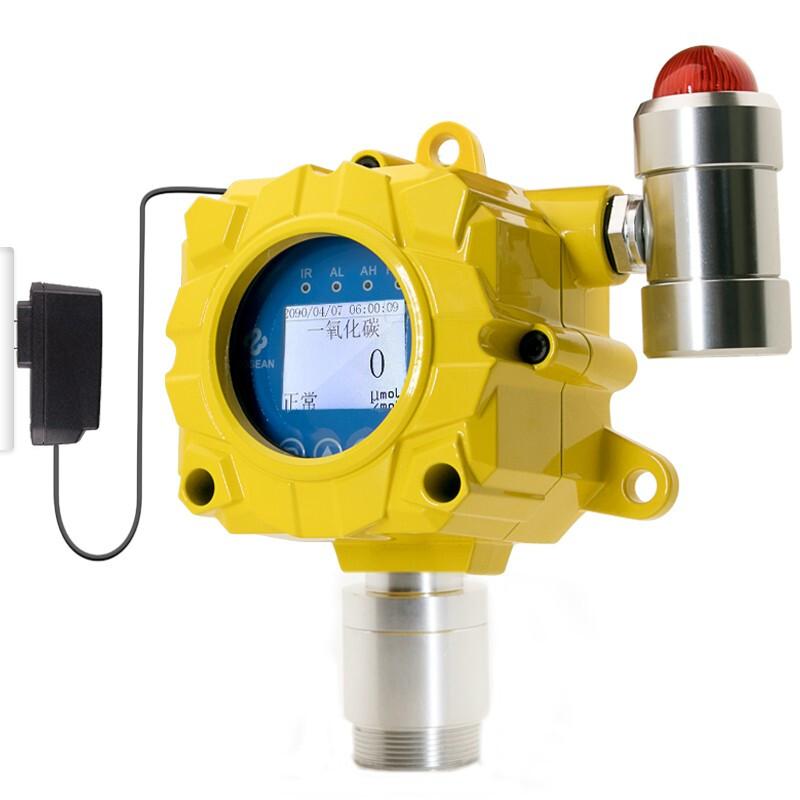

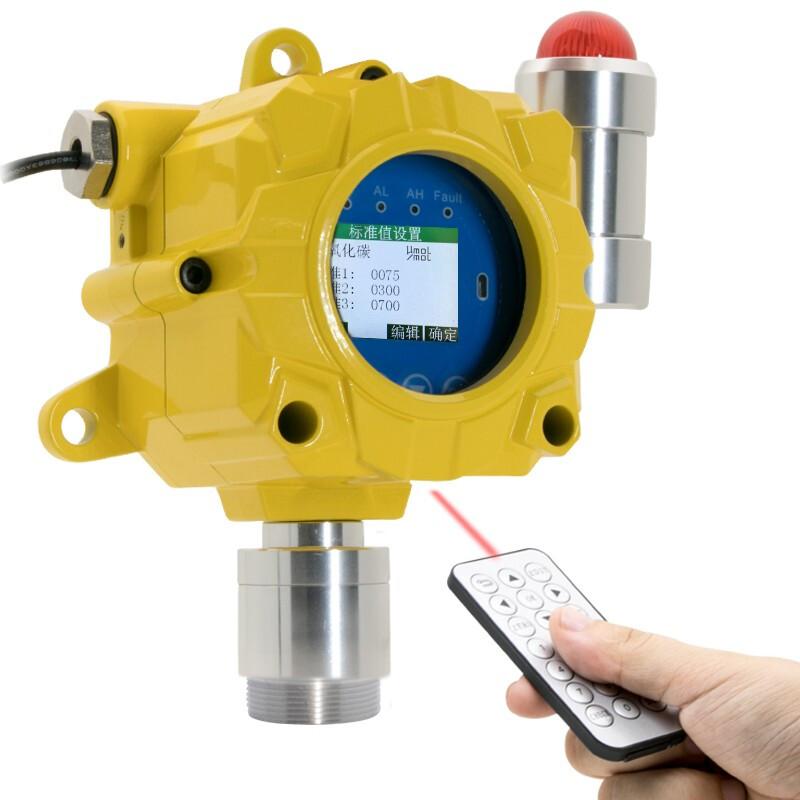

BOSEAN K-G60 (O2) Industrial Oxygen Gas Alarm Detector Picture


FAQ
QCan this instrument be used in chemical plant pipelines? How to install it?
A Yes, the K-G60 supports tubular installation, thread size M35X1.5mm, can be directly fixed to the pipeline to monitor oxygen. It Protection Rating IP65, explosion-proof, suitable for the harsh conditions of chemical plants, to ensure safe operation.
