Linshang LS223 Large Range Coating Thickness Gauge Measurement range 0~5000μm

Measuring 5mm thick material, magnetic/eddy current dual-purpose, digital probe technology, automatic temperature compensation, over-Measurement, no need to calibrate, wear-resistant ruby probe.
Model：
Certificate
Contact
Details SPEC
Similar products

LinShang LS223 Coating Thickness GaugeSPEC

LinShang LS223 Coating Thickness GaugeDetails

LinShang LS223 Coating Thickness GaugePacking list

SKU
NB039812
Measurement principle
Magnetic induction + eddy current
Measuring range
0 ~ 5000μ m
margin of error
±3~5%
resolution
0.1μ m | 1μ m | 0.01mm
Minimum measurement surface
f = 25mm
Minimum radius of curvature
Convex: 5mm; Concave: 25mm
thinnest matrix
0.2mm(F)；0.05mm(N)
probe
Belt type
Probe size
22*26*55mm
Probe material
ruby
Unit display
μm / mil
Power
2 1.5V AAA alkalinity batteries
Standards
GB/T4956-2003
Display screen
128X64 dot matrix LCD
Operating Conditions
Temperature 0~50 ℃
Total Weight
160g
Complete-built unit size
126*66*35mm
Measurement interval
0.5s
Storage temperature
-20℃~60℃
LS223
Coating Thickness Gauge
Measuring 5mm thick material, magnetic/eddy current dual-purpose, digital probe technology, automatic temperature compensation, over-Measurement, no need to calibrate, wear-resistant ruby probe.

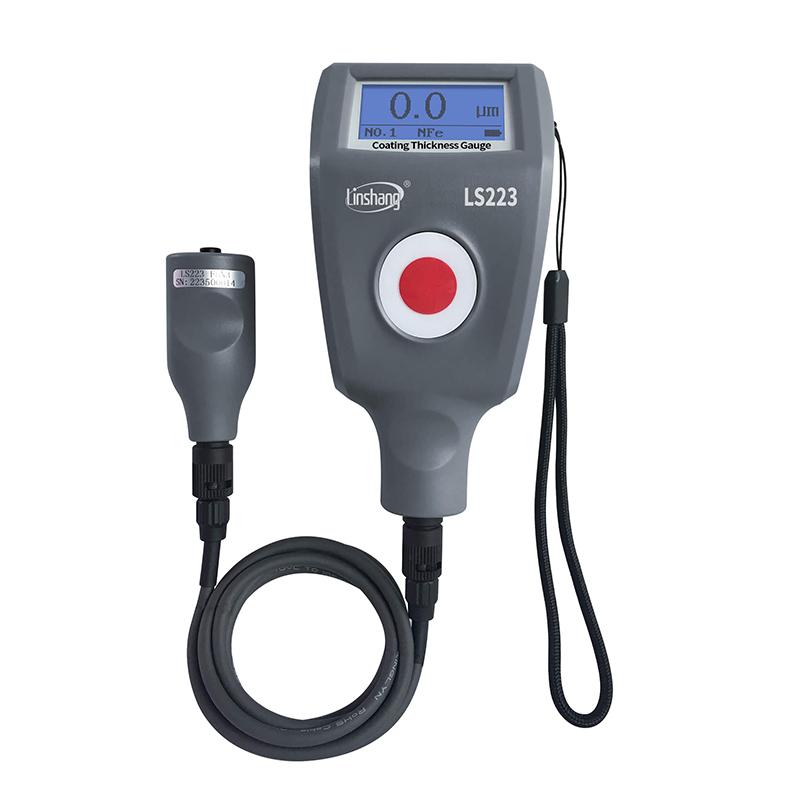

Linshang LS223 Large Range Coating Thickness Gauge Measurement range 0~5000μm Picture

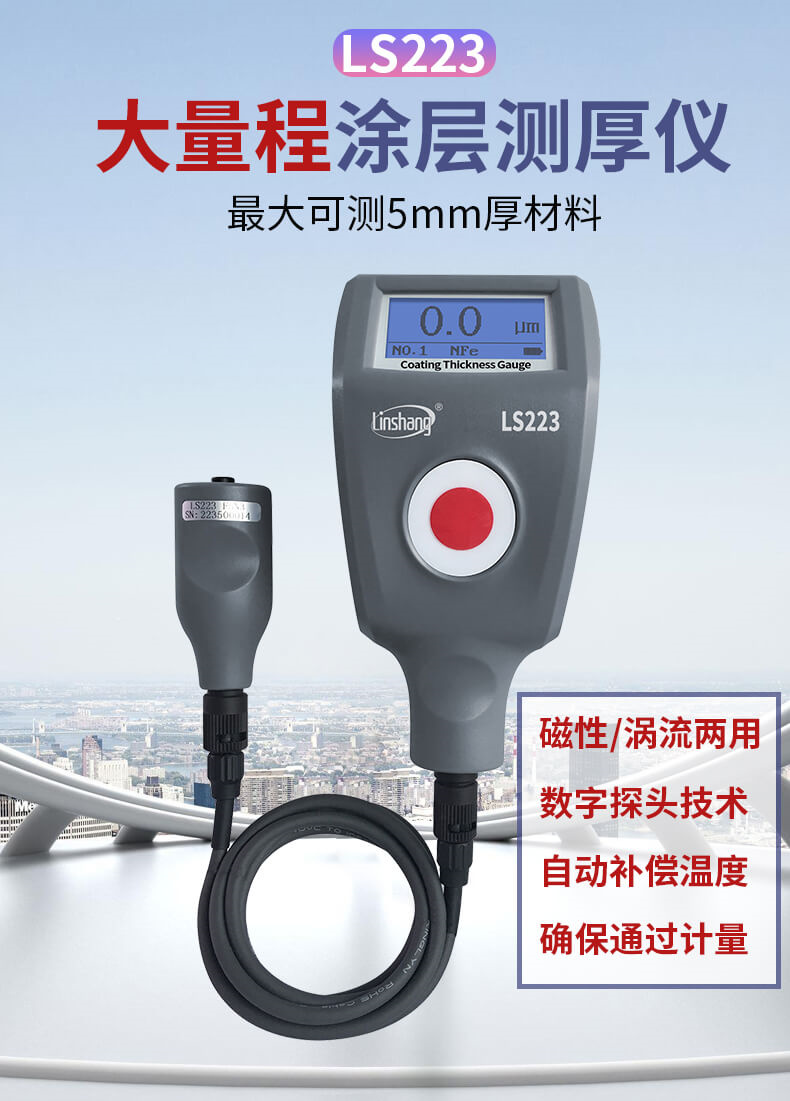

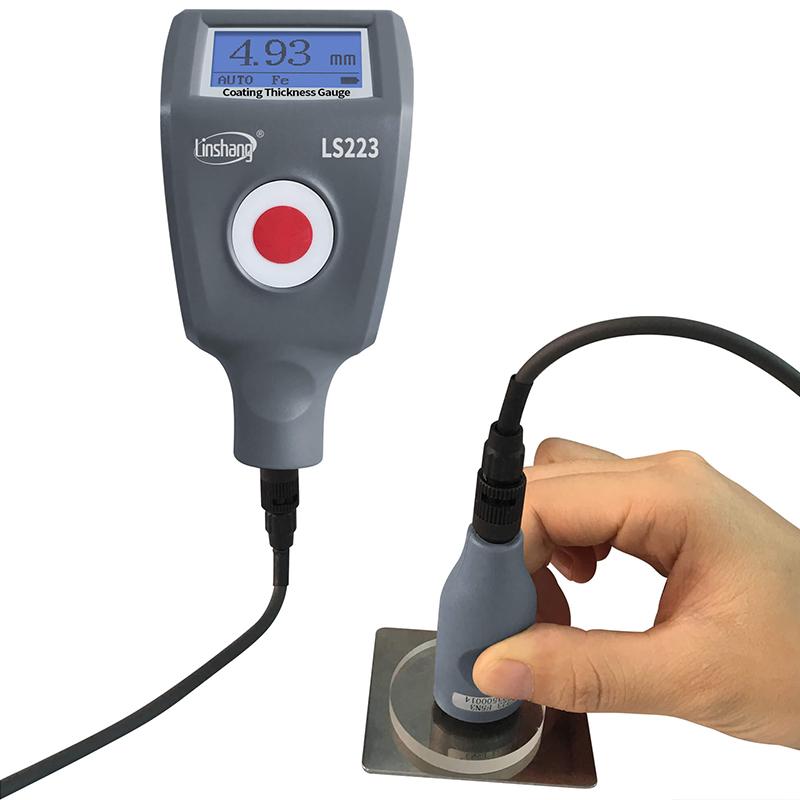

Linshang LS223 Coating Thickness Gauge Details Figure 1

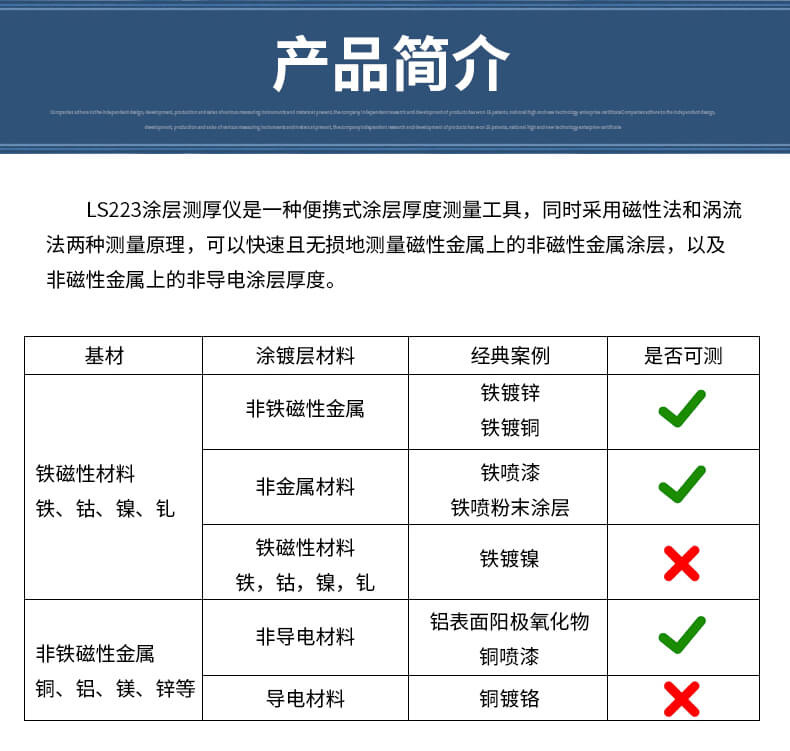

Linshang LS223 Coating Thickness Gauge Details Figure 2

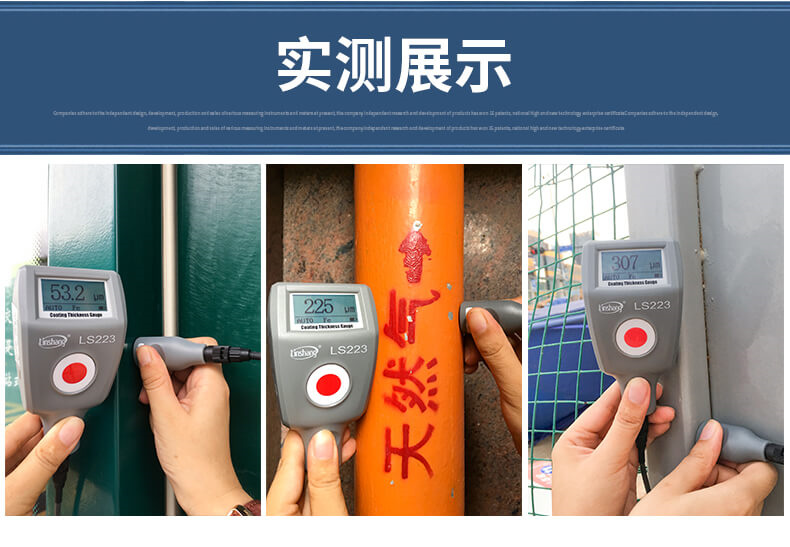

Linshang LS223 Coating Thickness Gauge Details Figure 3

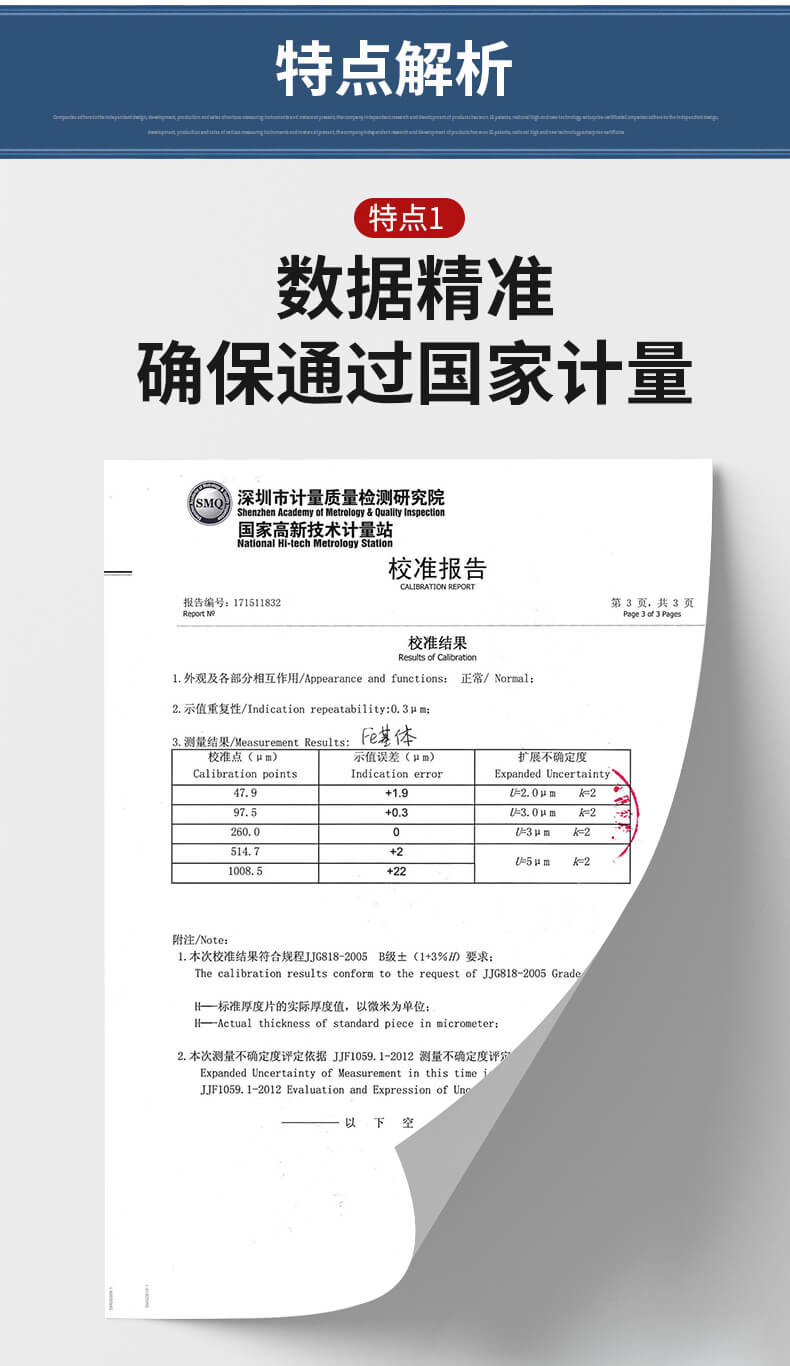

Linshang LS223 Coating Thickness Gauge Details Figure 4

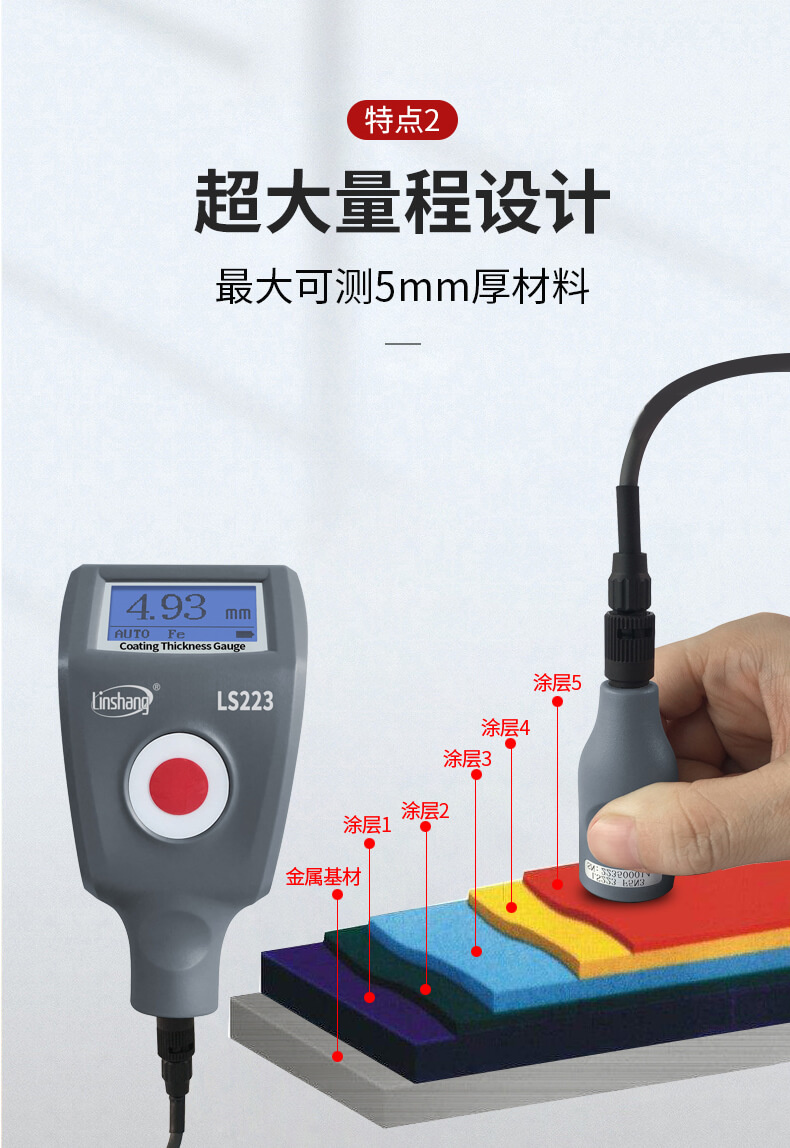

Linshang LS223 Coating Thickness Gauge Details Figure 5

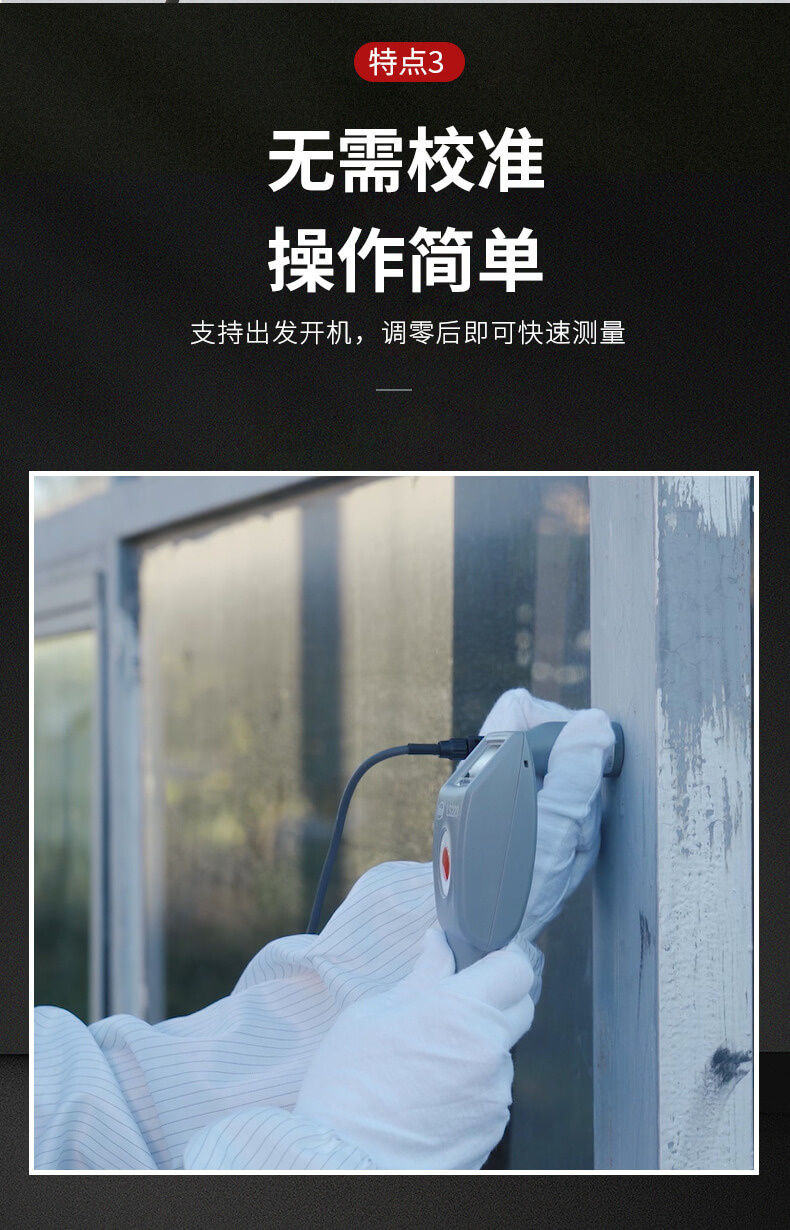

Linshang LS223 Coating Thickness Gauge Details Figure 6

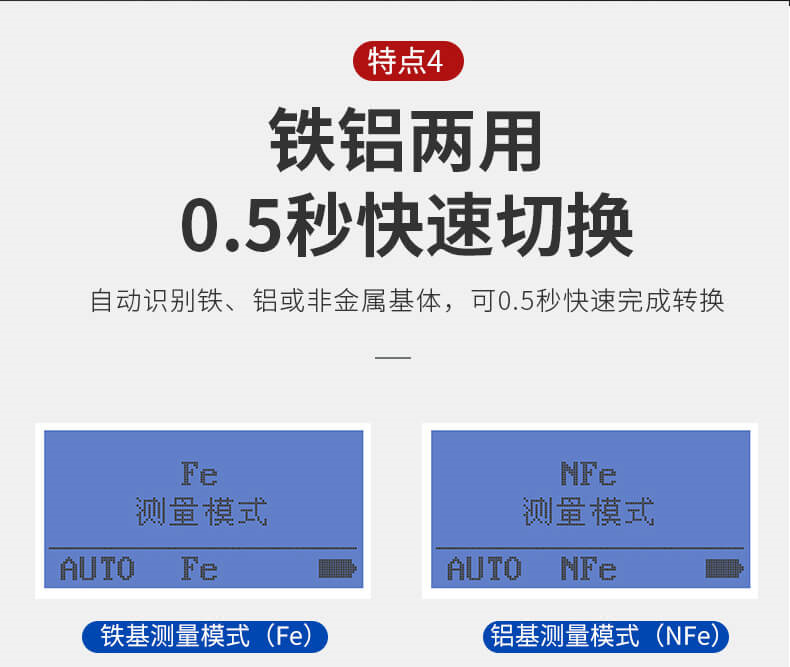

Linshang LS223 Coating Thickness Gauge Details Figure 7

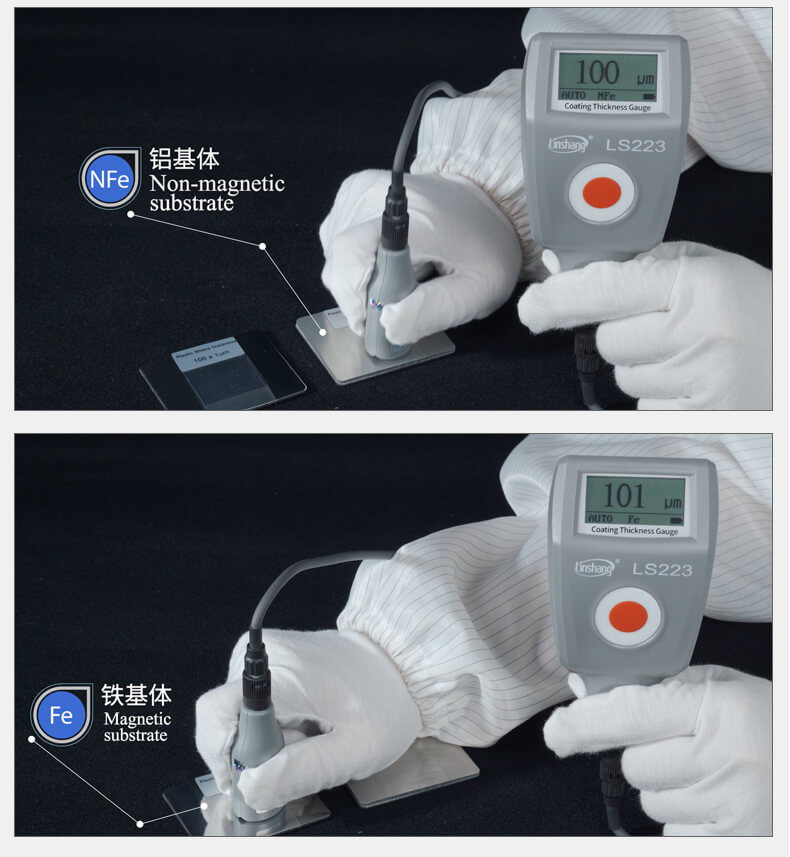

Linshang LS223 Coating Thickness Gauge Details Figure 8

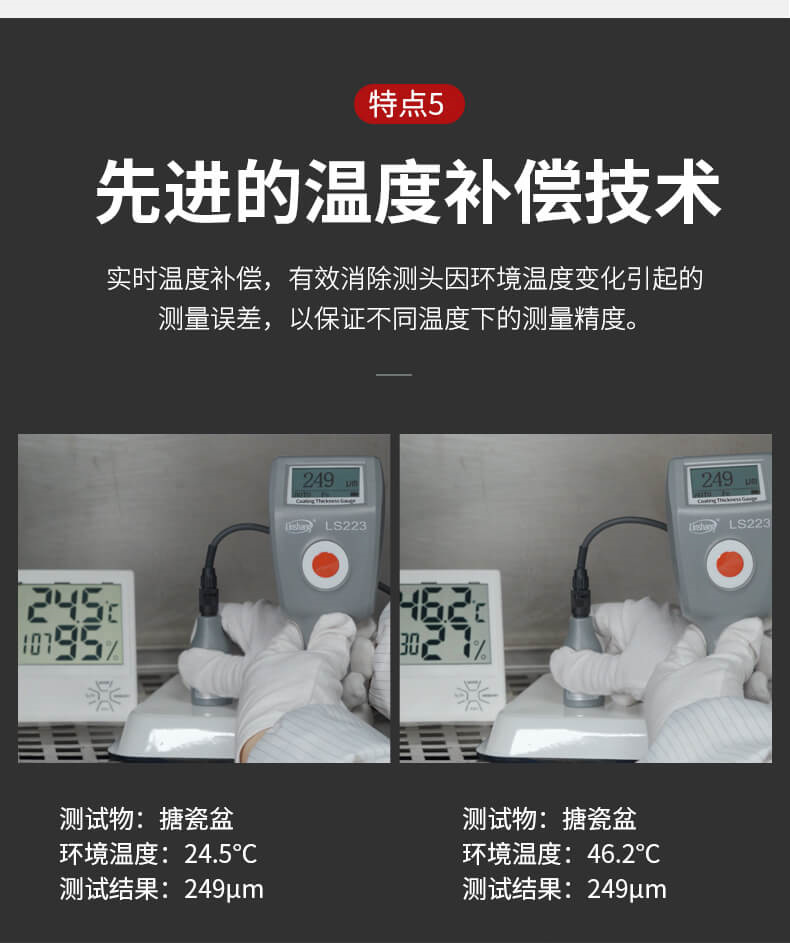

Linshang LS223 Coating Thickness Gauge Details Figure 9

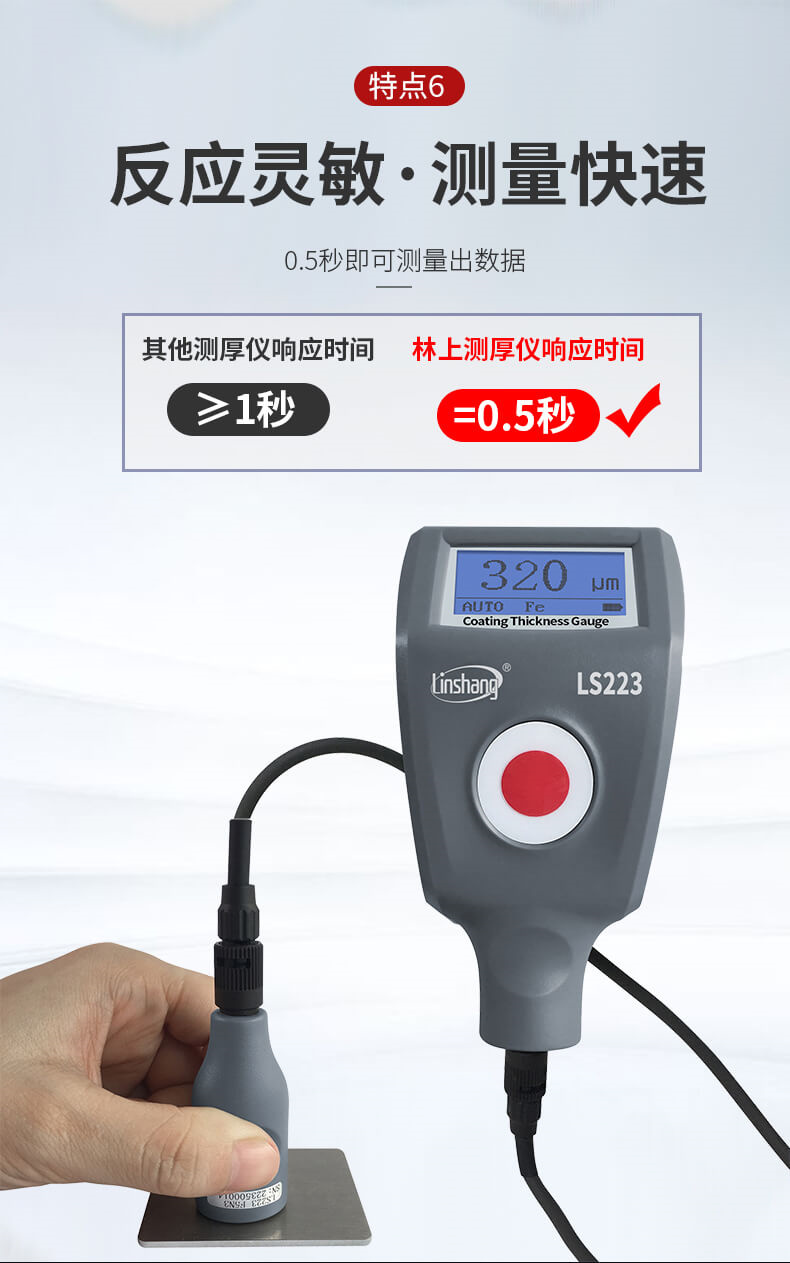

Linshang LS223 Coating Thickness Gauge Details Figure 10

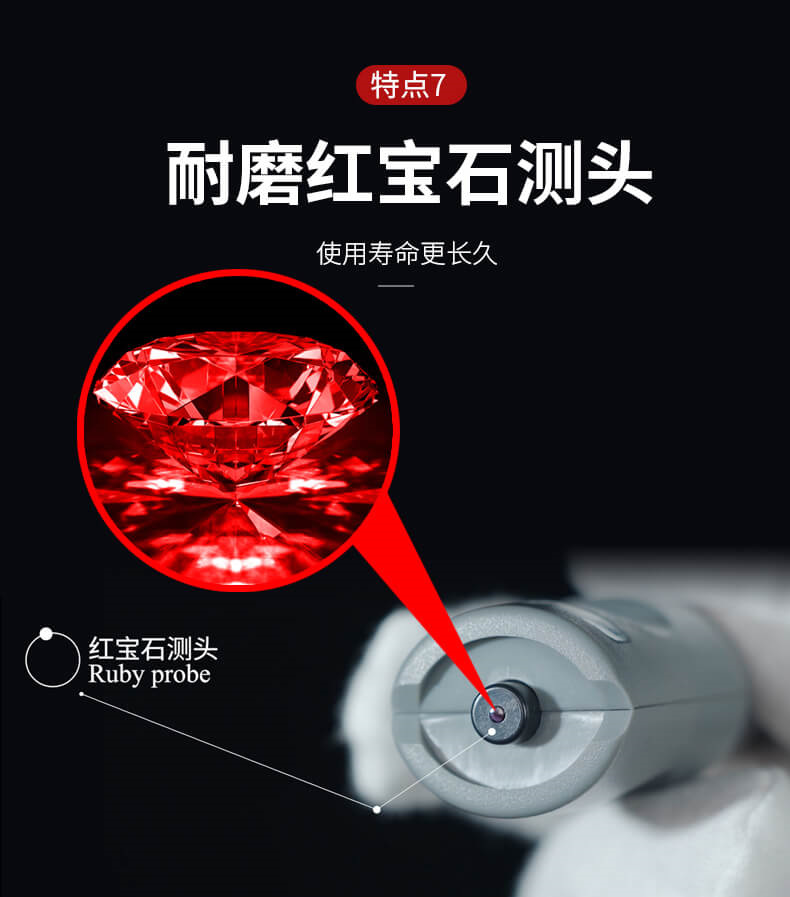

Linshang LS223 Coating Thickness Gauge Details Figure 11

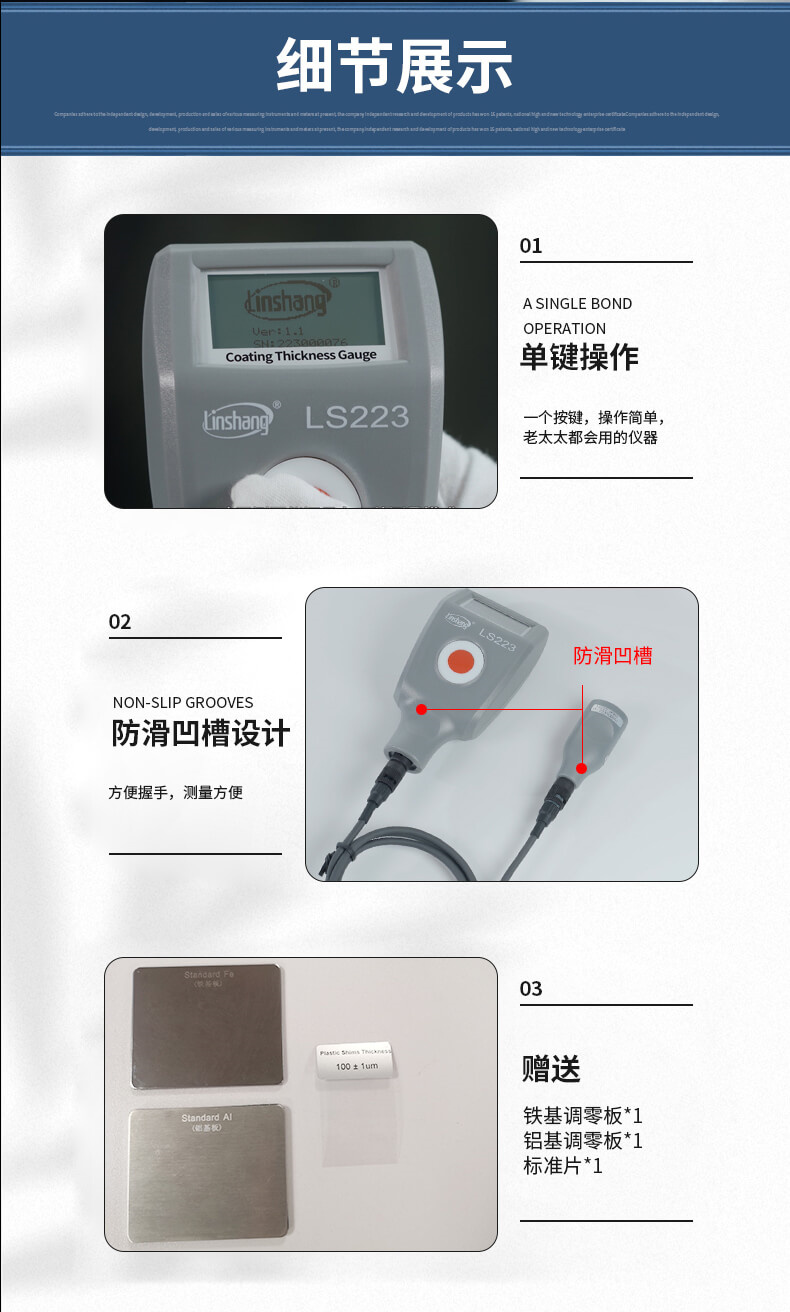

Linshang LS223 Coating Thickness Gauge Details Figure 12

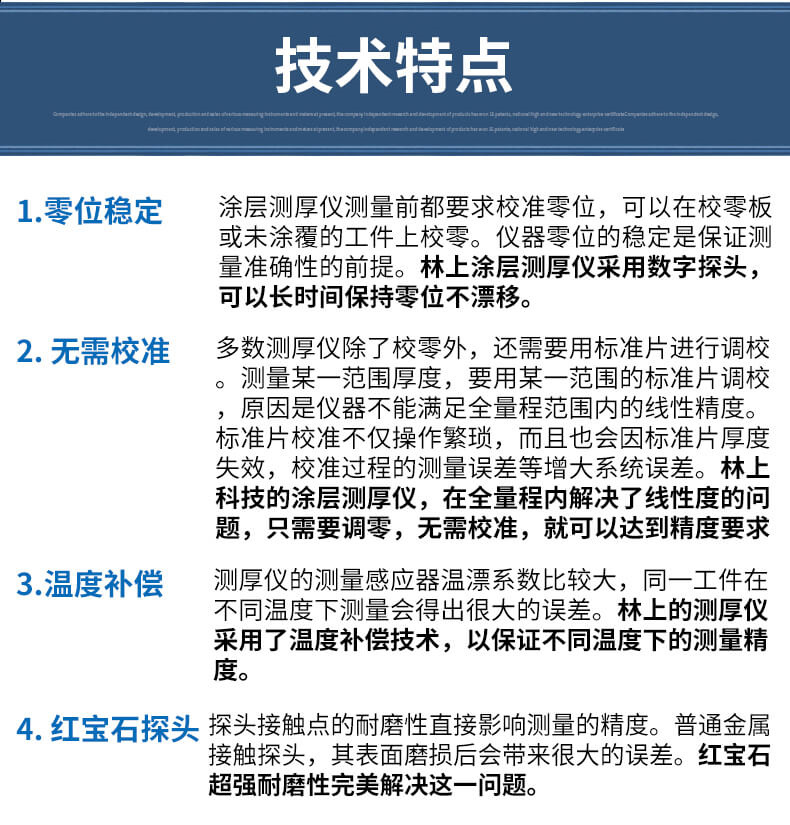

Linshang LS223 Coating Thickness Gauge Details Figure 13

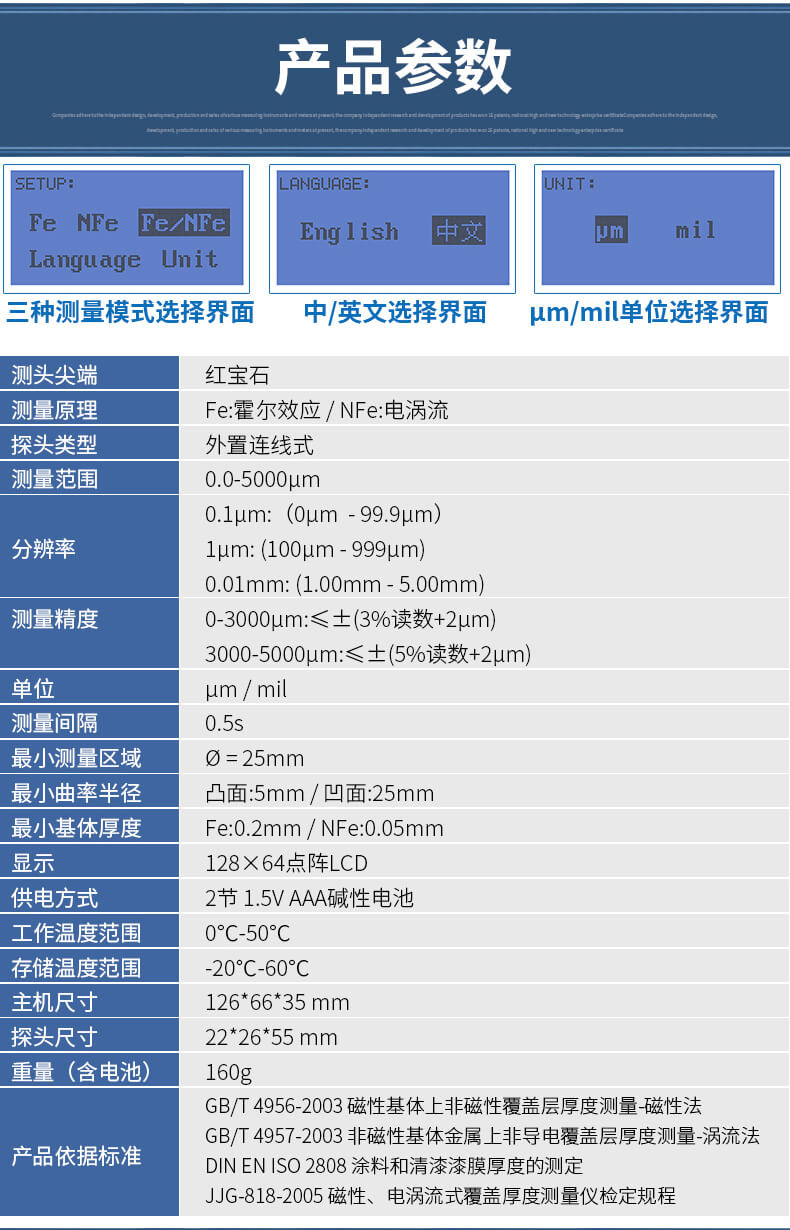

Linshang LS223 Coating Thickness Gauge Details Figure 14

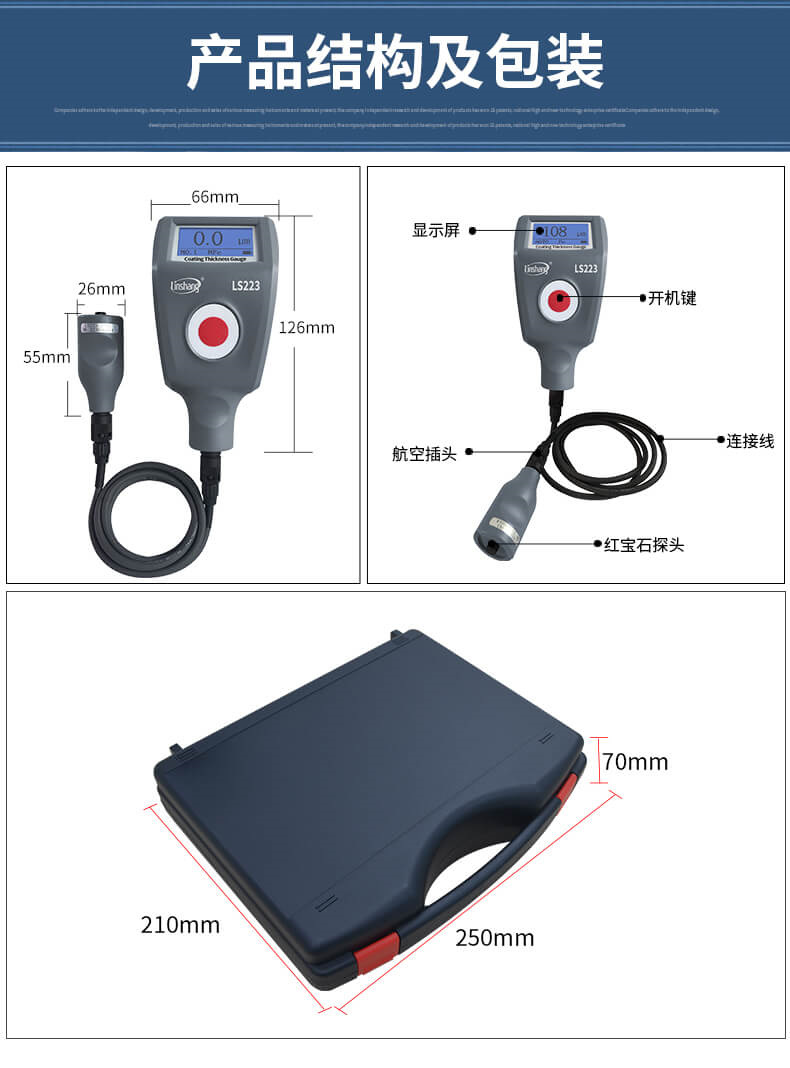

Linshang LS223 Coating Thickness Gauge Details Figure 15
