TQC VF2050 desktop Viscosity Cup ISO Flow Cup No. 6 with VF2061 bracket
SEISO cup, No. 6, with VF2061 bracket, Applicable standard ISO 2431, viscosity range 188~ 684cSt, flow hole diameter 6mm, Coating paints are suitable.
$800.00/set
PromotionLoading...
Coupon
Model：
VF2050+VF2061
Similar products
-
MODERNER ISO-6 ISO Flow Cup Viscosity Cup -
Rhopoint RL-A-FC-ISO6 ISO flow cup (6mm) BS EN ISO 2431, ASTM D5125$ 385.00SE -
TRUIT TR 1008/6 ISO Viscosity Cup φ6.0mm$ 125.00SE -
IPRE SR600 anchor pattern instrument shot peening sand blasting Roughness Gauge 0~2000a large range$ 273.00SE -
YONGLIDA QNB-ISO-6 ISO Flow Cup (including bracket) viscosity range: 188~ 684cst$ 164.00SE
TQC sheen VF2050+VF2061 Viscosity cupSPEC
TQC sheen VF2050+VF2061 Viscosity cupDetails
TQC sheen VF2050+VF2061 Viscosity cupPacking list
- SKU
- NB039816
- Viscosity range
- 188~684cSt
- flow hole diameter
- 6mm
- Cup height
- 85mm
- Maximum width
- 92mm
- Total height
- 92mm
- Cup body material
- Titanium anodic oxidation aluminum
- Filter material
- stainless steel
- Applicable standards
- ISO 2431
- bracket
- VF2061 viscosity cup holder
- Certificate
- without
- Weight
- 337g
VF2050+VF2061
Viscosity cup
ISO cup, No. 6, with VF2061 bracket, Applicable standard ISO 2431, viscosity range 188~ 684cSt, flow hole diameter 6mm, Coating paints are suitable.

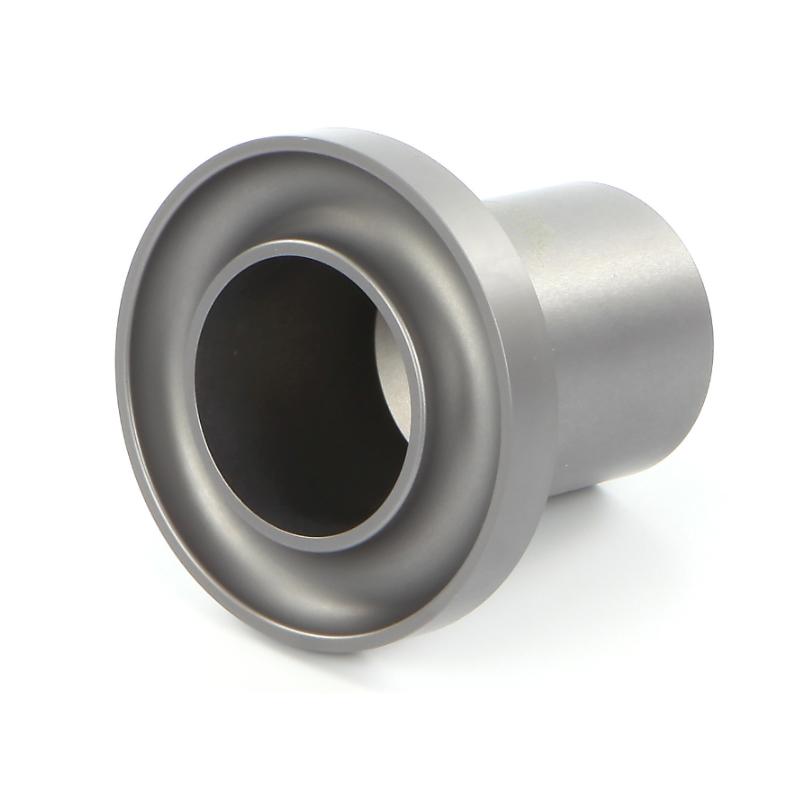

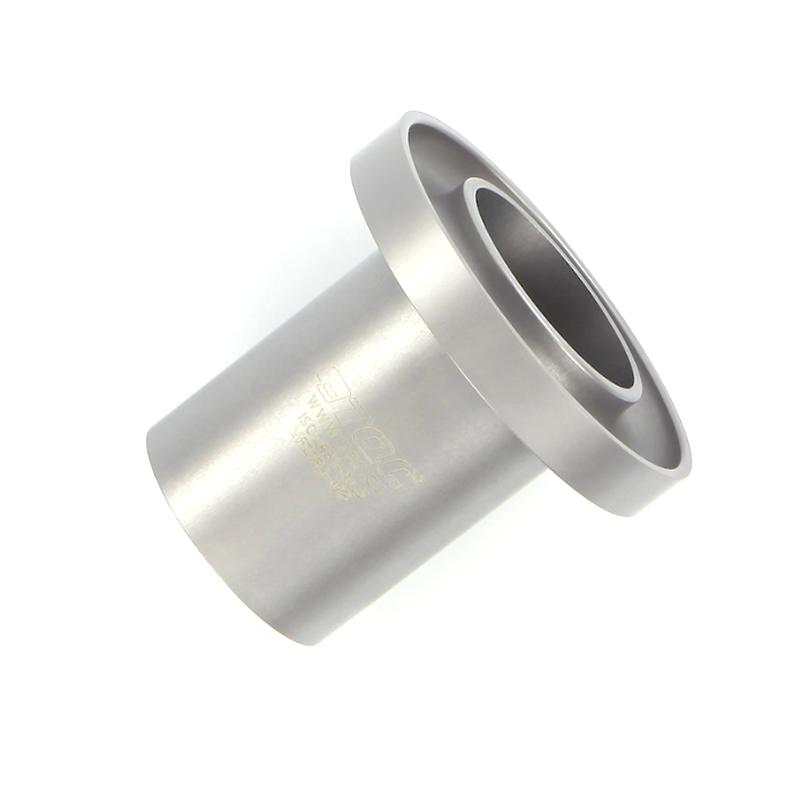

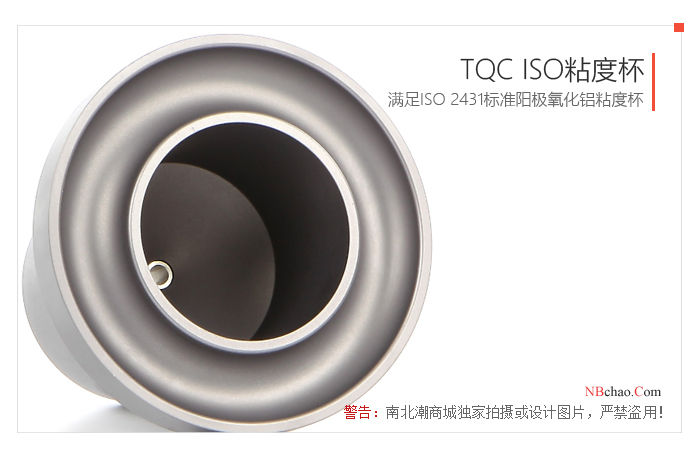

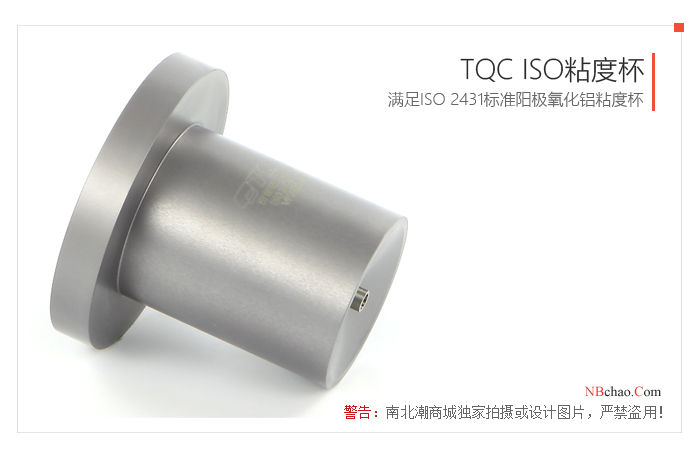

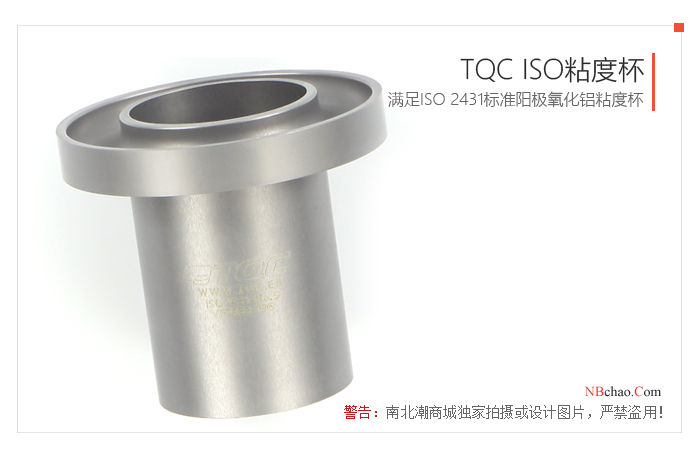

Viscosity cups ISO 2431 are a series of titanium anodized aluminum Viscosity Cups with fixed stainless steel nozzles (inner cavities). Laboratory type, used with a stand, to measure the viscosity of lacquers, paints, and other liquids. According to DIN, EN, ISO 2431.

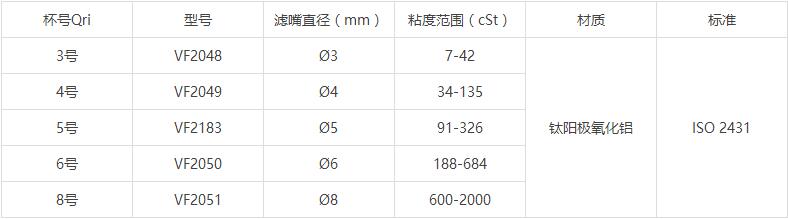

Series selection
Live shot
FAQ
QWhat are the main functions of choosing a viscosity cup? How about the VF2050 model?
A
The choice of viscosity cup mainly depends on the Measurement range, flow hole size, material and supporting bracket. VF2050 is very good. Its Measurement range is 188~ 684cSt, and the flow hole diameter is 6mm. It is suitable for measuring common liquids such as paints and varnish. The cup is titanium anodic oxidation aluminum, and the Nozzle is stainless steel, which are very durable and anti-corrosion. The most important thing is that it is equipped with a special VF2061 bracket, so that the cup can be fixed when measuring, and the results are more accurate. It is also convenient to use, and can fully meet the viscosity testing needs of daily laboratories.
