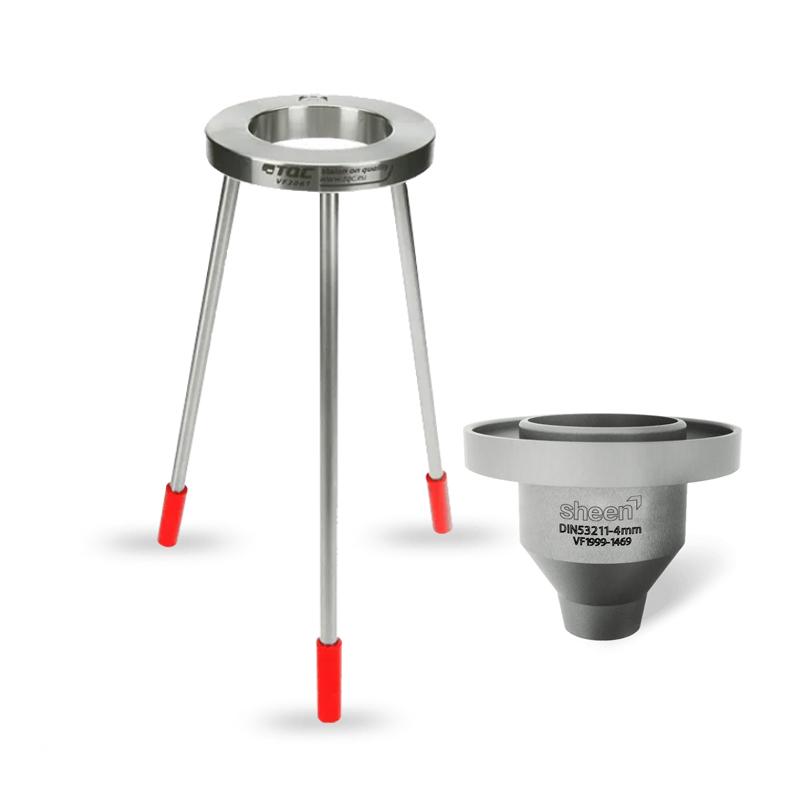

TQC VF1999 Coating Viscosity Cup DIN cup No. 4, with VF2061 bracket
VF1999+VF2061
-
Rhopoint RL-A-FC-DIN4 DIN Flow Cup (4mm) - DIN 53211$ 385.00SE -
TRUIT TR 1005/4 DIN Viscosity Cup outflow aperture 4mm$ 125.00SE -
TQC VF2073 immersion Viscosity Cup 4mm filter$ 343.00SE -
TQC VF2020 Viscosity Cup standard DIN 53211 for measurement of viscosity of paints, varnishes and other liquids (filter to be purchased separately)$ 397.00SE -
TQC VF1999 DIN cup, aluminum alloy, filter diameter 4mm$ 368.00SE
TQC sheen VF1999+VF2061 Viscosity cupSPEC
TQC sheen VF1999+VF2061 Viscosity cupDetails
TQC sheen VF1999+VF2061 Viscosity cupPacking list
- SKU
- NB039819
- Viscosity range
- 96~683cSt
- outflow time
- 25~150s
- flow hole diameter
- 4mm
- Maximum width
- 91mm
- Total height
- 74mm
- Cup body material
- Titanium anodic oxidation aluminum
- Filter material
- stainless steel
- Applicable standards
- Approximate DIN 53211
- Environmental temperature
- 25±0.2℃
- Weight
- 212~214g
- Bracket material
- The bracket is made of stainless steel and the bottom anklet is made of polyvinyl chloride (PVC).
Introduction to Viscosity Cups

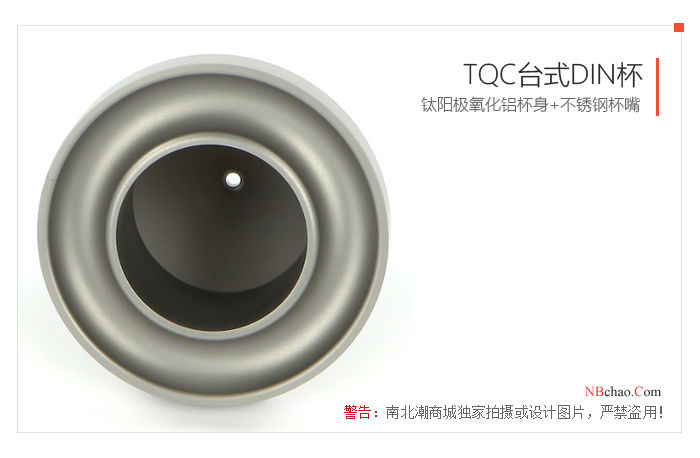

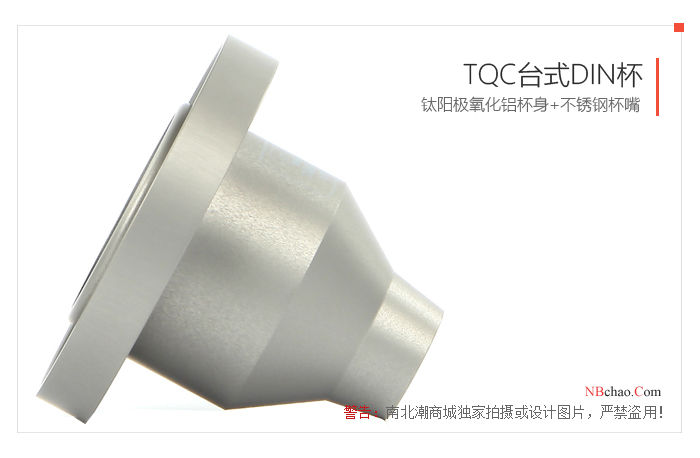

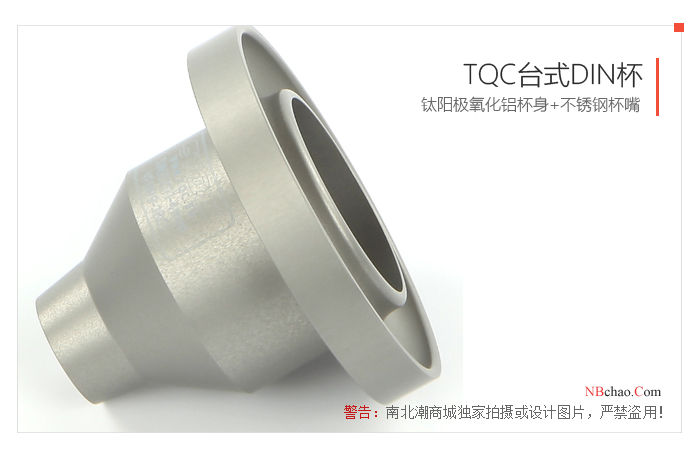

The Dutch TQC DIN cup is a DIN benchtop flow Viscosity Cup with a replaceable filter that can be purchased with a different diameterMeet the test of different viscosity ranges, save costs.DIN cups are suitable for testing the viscosity values of paints, varnishes and other liquids.The body of the DIN cup is made of titanium anodized aluminum, and the spout holder and spout are made of stainless steel to meet DIN53211 standards.
Special aluminium DIN tabletop Flow Cup with stainless steel filter positioner for stainless steel filter with 1mm-8mm bore diameter. Stainless steel filters are sold to order separately. The internal dimensions of the interchangeable filter Viscosity Cup are similar to those specified in the DIN53211 standard.
Introduction to the stent

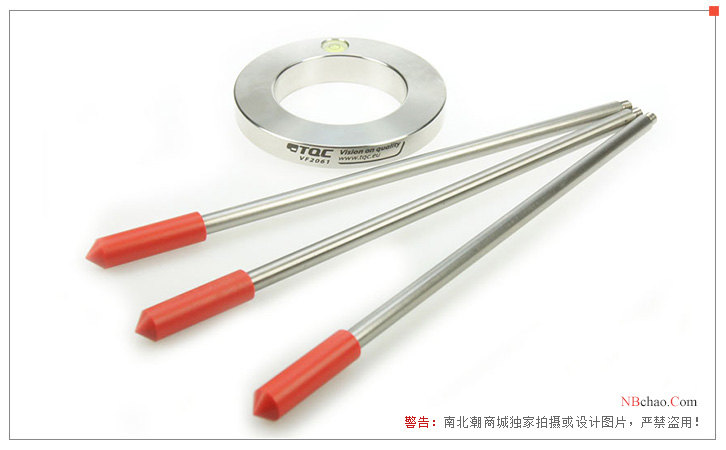

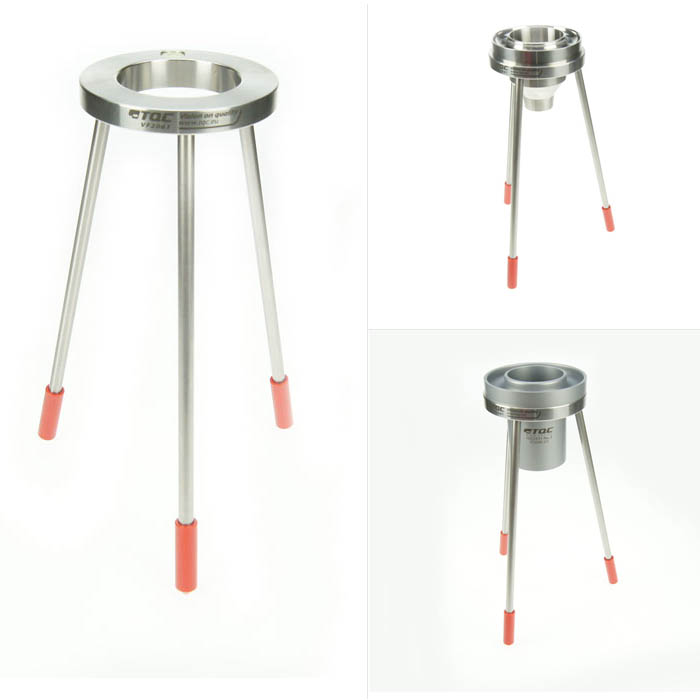

The tripod of the TQC VF2061 viscometer holder has a built-in level, and the balance can be adjusted freely through the level, and the size can be adjusted by using a telescopic stand. The VF2061 viscometer holder is made of stainless steel and the bottom foot ring is made of polyvinyl chloride.
The VF2061 viscometer fits all DIN, ISO and ASTM viscometers.
Viscosity cup features
The cup mouth is designed with an annular groove to store spilled liquids.
The dimensions are designed so that they can be used with TQC viscous cup holders.
Easy to clean. There are no depressions in the structure of the cup walls and outflow holes that are difficult to clean.

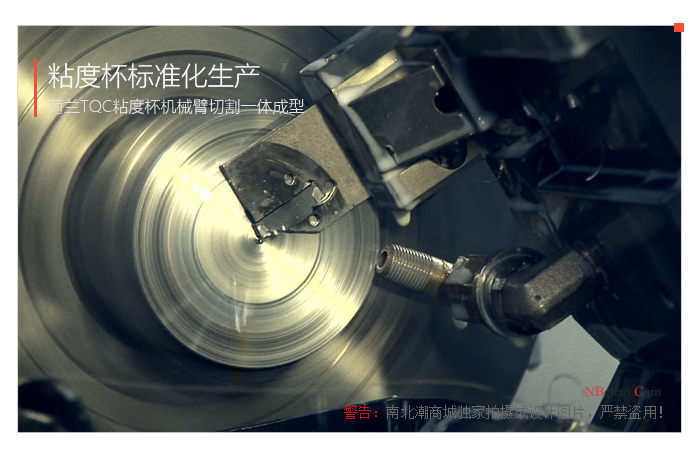

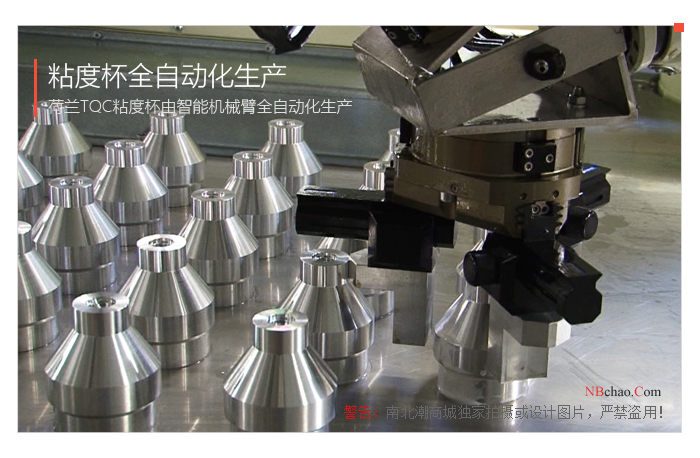

The production of TQC Viscosity Cups is subject to consistent quality control.

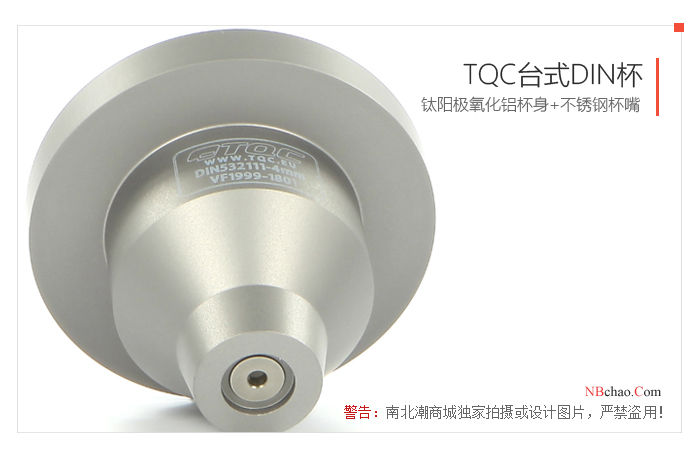

Each Viscosity Cup is engraved with a unique serial number.
Actual picture of the product
