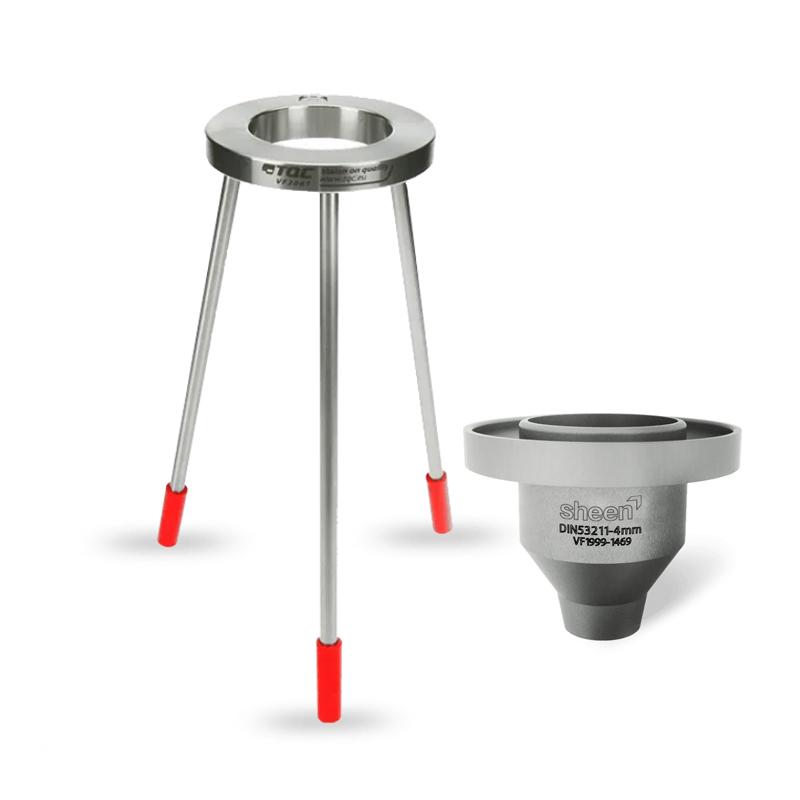

TQC VF2015 Coating Viscosity Cup No. 4 din cup with VF2061 bracket

VF2015+VF2061

Viscosity cup

In line with DIN 53211 standard, aperture 4mm, with VF2061 bracket, stainless steel material, viscosity range can be measured 96~ 683cSt.

Introduction to Viscosity Cups

The Dutch TQC DIN cup is a DIN benchtop flow Viscosity Cup with a replaceable filter that can be purchased with a different diameterMeet the test of different viscosity ranges, save costs.DIN cups are suitable for testing the viscosity values of paints, varnishes and other liquids.The DIN cup is made of pure stainless steel and meets DIN53211 standards.

Special aluminium DIN tabletop Flow Cup with stainless steel filter positioner for stainless steel filter with 1mm-8mm bore diameter. Stainless steel filters are sold to order separately. The internal dimensions of the interchangeable filter Viscosity Cup are similar to those specified in the DIN53211 standard.

Introduction to the stent

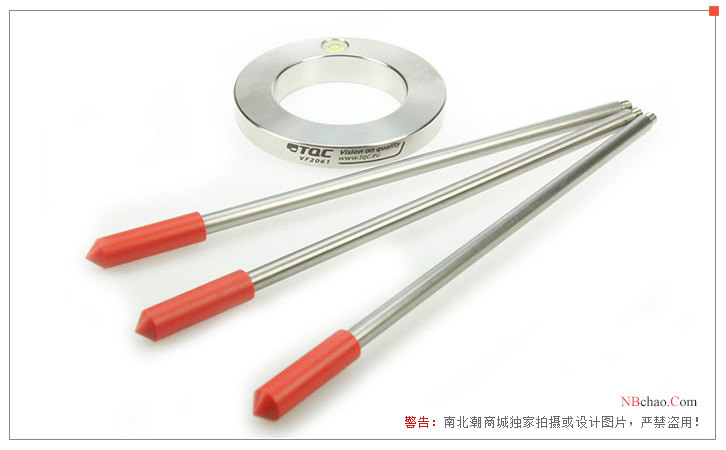

The tripod of the TQC VF2061 viscometer holder has a built-in level, and the balance can be adjusted freely through the level, and the size can be adjusted by using a telescopic stand. The VF2061 viscometer holder is made of stainless steel and the bottom foot ring is made of polyvinyl chloride.

The VF2061 viscometer fits all DIN, ISO and ASTM viscometers.

Viscosity cup features

• The cup mouth is designed with an annular groove to store spilled liquids.

• The dimensions are designed so that they can be used with TQC viscous cup holders.

• Easy to clean. There are no depressions in the structure of the cup walls and outflow holes that are difficult to clean.

• The production of TQC Viscosity Cups is subject to consistent quality control.

• Each Viscosity Cup is engraved with a unique serial number.

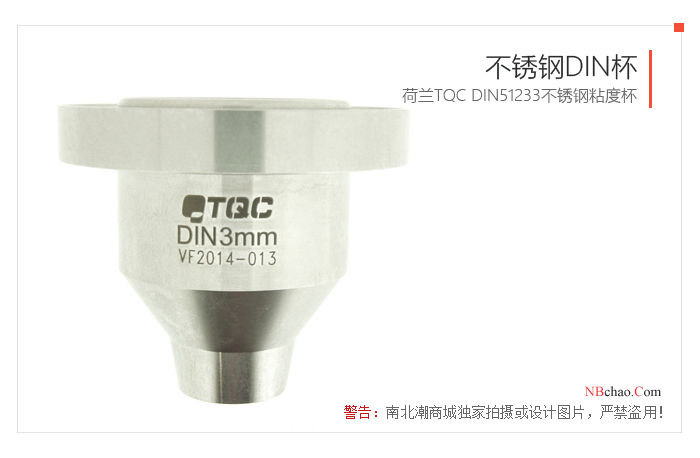

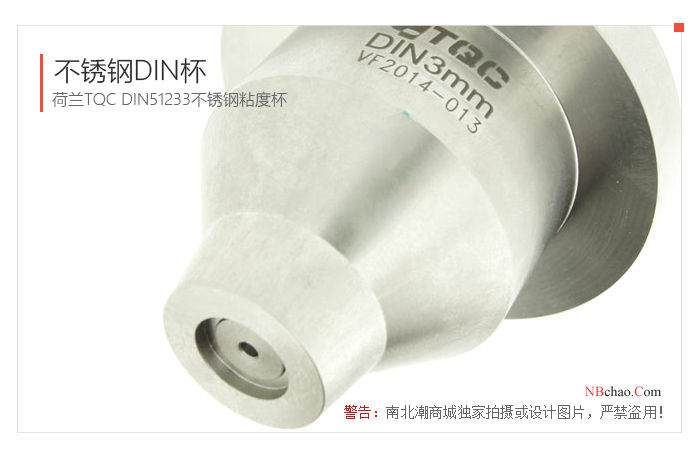

Actual picture of the product

Packing list：Viscosity cup x1, bracket X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
