TQC VF2032 desktop Viscosity Cup No. 4 Ford Viscosity Cup with VF2061 bracket
VF2032+VF2061
-
MODERNER FORD-4 No. 4 Ford Viscosity Cup viscosity range 49~ 220cst -
TRUIT TR 1002/4 Ford Viscosity Cup outflow aperture φ4.12mm$ 125.00SE -
TQC No. 4 Ford Ford Viscosity Cup ASTM4 Viscosity Cup 4.1mm$ 452.00SE -
YONGLIDA FORD-4 Ford Viscosity Cup paints viscosity measurement$ 161.00SE -
TQC VF2087 No. 4 Ford Viscosity Cup filter aperture 4.1mm$ 452.00SE
TQC sheen VF2032+VF2061 Viscosity cupSPEC
TQC sheen VF2032+VF2061 Viscosity cupDetails
TQC sheen VF2032+VF2061 Viscosity cupPacking list
- SKU
- NB039825
- Viscosity range
- 70-370cSt
- outflow time
- 30~100s
- flow hole diameter
- 4.1mm
- Cup height
- 74mm
- Maximum width
- 92mm
- Cup body material
- Titanium anodic oxidation aluminum
- Filter material
- stainless steel
- Applicable standards
- ASTM D1200‘FORD
- Certificate
- without
- Weight
- 196g
- Bracket material
- The bracket is made of stainless steel and the bottom anklet is made of polyvinyl chloride (PVC).
Introduction to Viscosity Cups
The TQC Ford Cup is the most widely used measurement tool in the field of viscosity testing coatings for rapid viscosity testing of fluids that conform to or close to Newtonian mechanical properties, and the outFlow Cup method is also recognized worldwide as a fast and effective method for measuring viscosity.
Today's paint Ford cups are produced according to a number of international standards that have been around for many years and specify not only the precise dimensional tolerances required in the process, but also their use and the data records obtained.
Each TQC brand paint Ford cup is produced under an ongoing quality control program and is engraved with a unique serial number. Most Ford cups are made of aluminum-titanium alloy and stainless steel. All filters embedded in the bottom of the Ford cup are made of stainless steel.
FORD Viscosity Cups are used to test the concentration of paints, paints and other similar products. The viscosity of the liquid is calculated and classified by the process of the liquid flowing out of the hole under the Ford cup.
Ford Cup series parameters
| FORD number | Model | Filter pore size (mm) | Viscosity Range (cst) | Flow Time(s) | Material | standard |
| Number 1 | VF2029 | 1.9 | 10-35 | 55-100 | Titanium anodized aluminum | ASTM D1200‘FORD’ |
| No. 2 | VF2030 | 2.53 | 25-120 | 40-100 | ||
| Number 3 | VF2031 | 3.4 | 49-220 | 30-100 | ||
| Number 4 | VF2032 | 4.1 | 70-370 | 30-100 | ||
| Number 5 | VF2033 | 5.2 | 200-1200 | 30-100 |
Introduction to the stent
The tripod of the TQC VF2061 viscometer holder has a built-in level, and the balance can be adjusted freely through the level, and the size can be adjusted by using a telescopic stand. The VF2061 viscometer holder is made of stainless steel and the bottom foot ring is made of polyvinyl chloride.
The VF2061 viscometer fits all DIN, ISO and ASTM viscometers.
Viscosity cup features
1. Paint Ford Viscosity Cup design, there is a deep groove on the cup mouth to prevent the measured liquid from overflowing
2. All kinds of special paint Ford cup holders
3. TQC coating Ford Cup is made through strict quality monitoring procedures
4. Each cup is engraved with a unique number code
5. Each paint Ford cup is packed in a thick plastic box with a soft material stuffed inside to protect the cup.

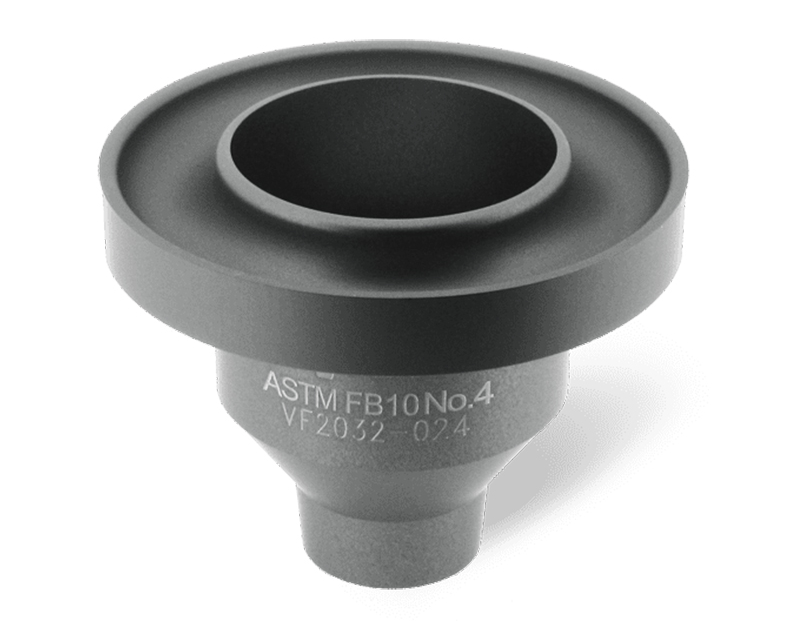

Actual picture of the product
