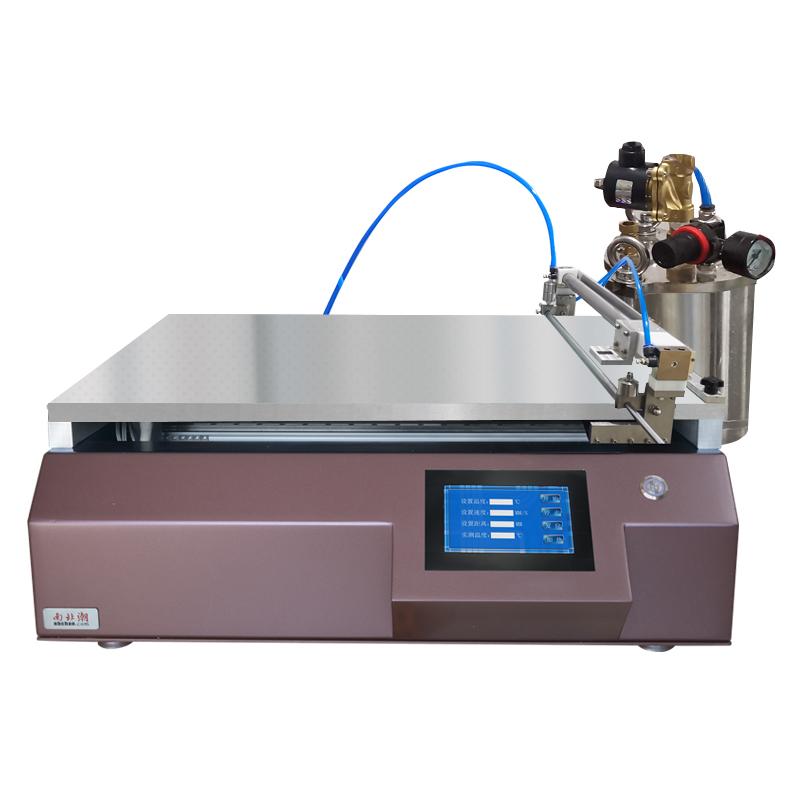

China TBJ-X4-DJ3 Laboratory Film Applicator bar + Heating + Vacuum chuck + Automatic feeding, Multifunctional coater
SE BoutiqueBar + heating + Vacuum chuck + automatic feeding, Coating size 300 * 400mm, Heating temperature up to 200 ℃, a variety of bar film thickness optional.
$6289.00/set
PromotionLoading...
Coupon
Model：
TBJ-X4-DJ3
zy
Manufacturer authorization
Similar products
zy TBJ-X4-DJ3 Automatic Film ApplicatorSPEC
zy TBJ-X4-DJ3 Automatic Film ApplicatorDetails
zy TBJ-X4-DJ3 Automatic Film ApplicatorPacking list
- SKU
- NB039827
- Coating method
- Bar + automatic feeding system
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 400Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Vacuum Area
- 300 * 400Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- speed control
- Infinitely variable speed
- Substrate clamping method
- Vacuum adsorption
- Control mode
- Touch screen control
- Bottom plate material
- aluminum alloy
- Heating Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Heating mode
- Baseplate heating
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Dimension
- 630*410*520mm
- customizable function
- Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
TBJ-X4-DJ3
Automatic Film Applicator
Bar + heating + Vacuum chuck + automatic feeding, Coating size 300 * 400mm, Heating temperature up to 200 ℃, a variety of bar film thickness optional.
TBJ-X experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted manually are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
Optional
|
|
|
FAQ
QCan this be used for fuel cell membrane electrode prepative?
Substrate: smart paper livering film
Thickness: 5~ 10 microns
Want sheet
To automatic feeding system
Heating vacuum adsorption
A
Wire rod heating vacuum adsorption + automatic feeding
QVacuum 0.2-0. 3mm copper strip adsorption?
Can the viscosity of 100cps be used?
Can the automatic feeding system be painted on the full screen?
A
Film, copper foil, aluminum foil and other thin substrate vacuum adsorption can be fixed adsorption;
The wire rod needle can be used for samples with a viscosity within 1000cp. If the viscosity is relatively high and leveling is good, the wire rod can also be used;
The automatic feeding system can control the width of the left and right stroke of the sample, and can set the full screen range operation.
QIs it used to make battery devices? If you want to scrape flexible solar cells, the substrate is PET or Glass. Can you scrape the nano level? Do you need to add materials manually?
A
Use TBJ-X4-DJ3 vacuum adsorption wire rod heating integrated Lab Film Applicator, coupled with automatic addition function to realize automatic feeding,
QCan small laboratory coaters be equipped with waste chutes?
A
Sure.
