CHINA NBC-216-xP34 Rain Test Chamber, waterproof Test Chamber

SE
Working size 600 * 600 * 600, SUS304 stainless steel material, low and full, single door, touch screen 880 controller, with large area visual Glass door.
Contact
Details SPEC VIDEO CAT

HuiTai NBC-216-xP34 Rain Test ChamberSPEC

HuiTai NBC-216-xP34 Rain Test ChamberDetails

HuiTai NBC-216-xP34 Rain Test ChamberPacking list

SKU
NB039833
Working size
600*600*600mm
Outer box size
1350*1450*1600mm
Water spray ring diameter
350mm
Water pipe diameter
f16mm
Nozzle diameter
f0.8mm
Aperture spacing
50mm
Swing tube swing
1-220 ° (60 ° 90 ° 130 ° adjustable) stepper motor control
Rain water pressure
50~300KPa (adjustable)
Test bench size
Diameter 400mm
Pendulum tube material
SUS304 stainless steel plate
Protection device
Leakage protection
Power
220V
power
3KW
Controller
Touch screen 880 Controller
Shell material in the box
High quality stainless steel plate SUS304
Power
Single-phase three-wire system 220V ± 10%; 50 Hz
Environment temperature
5~ 28 ℃; (up to 35 ℃, but will affect some performance)
Environment humidity
< 85%R.H（25℃）
atmospheric pressure
86106Kpa
Environmental conditions
No strong vibration around the equipment site, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight or Miscellaneous heat source direct radiation
NBC-216-xP34
Rain Test Chamber
Working size 600 * 600 * 600, SUS304 stainless steel material, low and full, single door, touch screen 880 controller, with large area visual Glass door.

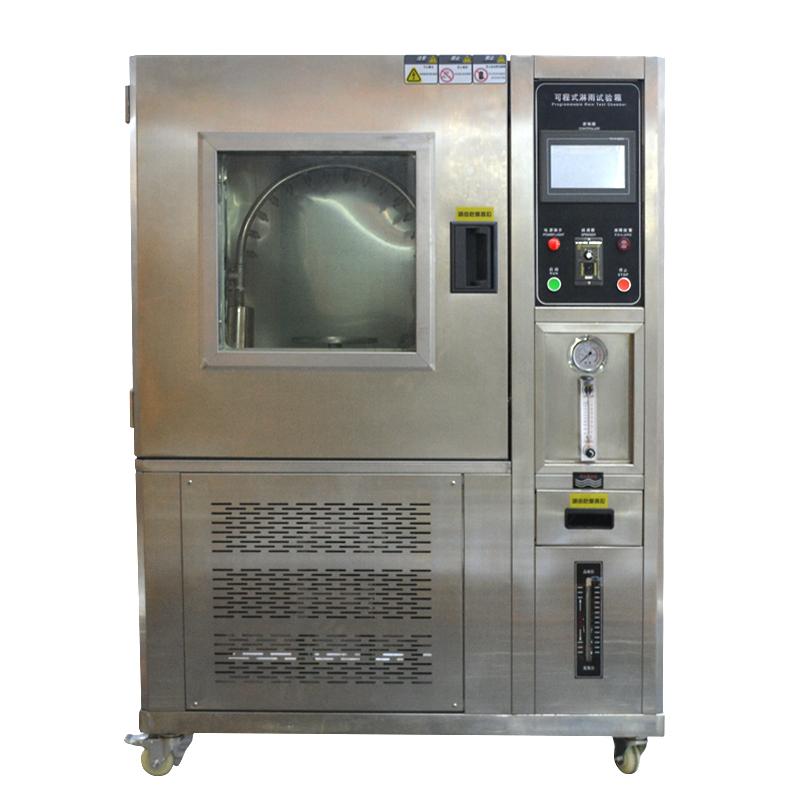

CHINA NBC-216-xP34 Rain Test Chamber, waterproof Test Chamber Picture

Equipment use

It is mainly suitable for waterproof performance testing of communication products, auto parts (such as car rearview mirrors, car audio, automotive electronics, automotive lighting, automotive lamps, motorcycle lamps, motorcycle rearview mirrors), outdoor lighting and signal devices, etc. And IP waterproof level test.

product structure

The inner box of the waterproof test box is made of SUS304 stainless steel plate, the Water Tank is made of SUS304 stainless steel plate, with low position and full water indication, the water spray pipe is made of seamless stainless steel pipe, the turntable is made of stainless steel, the nozzle is removable and equipped with a plug The nozzle is convenient for customers to replace at any time according to the number of nozzle holes required by the standard.

The door of the Test Chamber is a single door, left-handed, with a large observation window and equipped with a wiper .

Standards

GB4208, IEC60529, GJB150, GB10485 IPX4 IPX3


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
