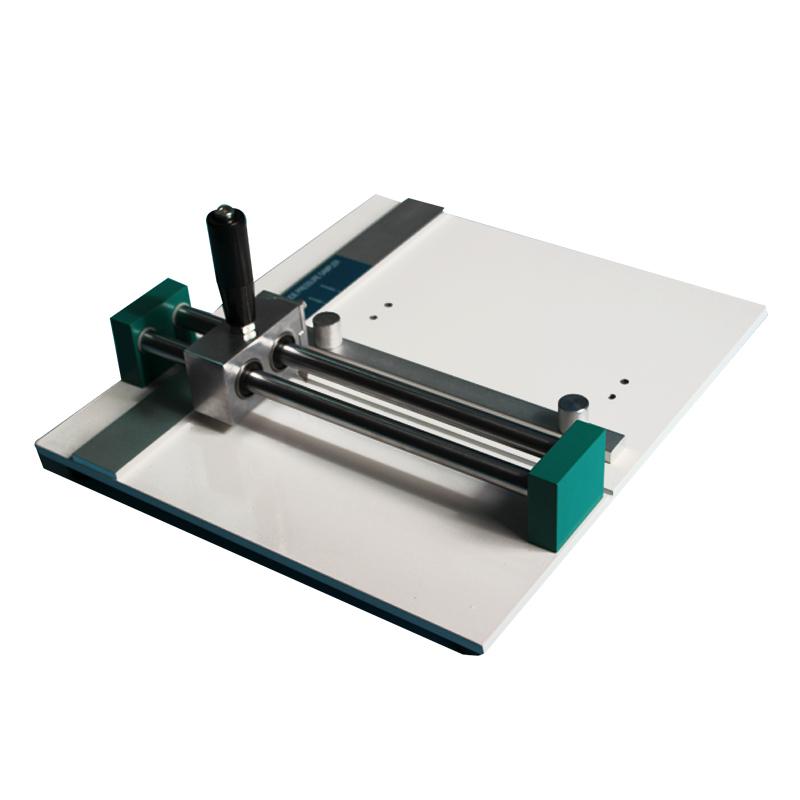

CHINA Sampler NBC-BY sampling size 25 * 100mm

NBC-BY

Side Pressure Sampler

Side pressure sample 25 * 100mm/gluing sample 25 * 80mm, imported sliding track, laser engraving scale, strong magnet is easy to install.

Introduction

It is a special sampling device required for corrugated cardboard edge compression strength test and adhesive strength test. It can quickly and accurately cut out the standard test size. It is a professional auxiliary test device for departments such as corrugated cardboard and carton production, scientific research and quality supervision and inspection.

Features

• Capable of cutting samples with precise parallelism, with markings on them, and the parallel distance can be set;

• Imported sliding rails are used to closely cooperate with imported Japanese blades to easily cut out multi-layer cardboard samples;

• The scale is laser engraved, the scale is clear, durable and easy to clean;

• With strong magnet, the blade is more convenient to install.

Precautions

1. The incision direction needs to be parallel or perpendicular to the corrugated direction, and the test sample must not be loose during the sample cutting process;

2. After each cut, pull the handle back to the position to be cut;

3. It is strictly forbidden to put your hands on the sample cutting position to prevent injury;

4. If the incision of the cut sample is seriously curled or skewed, the blade should be replaced. The blade used can be any commercially available blade of the same type (replacement method: loosen the screw on the knife holder assembly, remove the old blade, replace with a new blade, adjust the position and angle of the blade, and tighten the screw);

5. When not in use for a long time, the blade, guide post, etc. should be coated with anti-rust oil, and covered with dust;

6. A small amount of lubricating oil should always be added to the guide sleeve assembly and guide post.

Packing list：complete-built unit X1, plate X2, damp cloth X3, silicone plug X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
