SAFETAK GC60S-4 Intelligent 4 in 1 Gas Detector

Soft SAFETAK GC60S-4 intelligent four-in-one Gas Detector can detect four gases: gas, O2, CO, and H2S. The GC60S-4 composite Gas Detector has passed explosion-proof certification and CE certification. GC60-4 is widely used in petroleum, chemical industry, metallurgy, electric power, city gas, fire rescue, plastics industry and other fields.
Model：
Certificate
Contact
Details SPEC CAT OI

SAFETAK GC60S-4 Intelligent 4 in 1 Gas DetectorSPEC

SAFETAK GC60S-4 Intelligent 4 in 1 Gas DetectorDetails

SAFETAK GC60S-4 Intelligent 4 in 1 Gas DetectorPacking list

SKU
NB039841
Operating Mode
Continuous detection, non-disposable (both batteries and Sensors can be replaced, and the battery storage life can be up to ten years)
Sensors principle
Combustible gas - catalytic combustion or anti-poisoning infrared principle, oxygen and toxic gases - Electrochemistry principle, carbon dioxide and hydrocarbons - infrared principle, organic compounds - semiconductor principle
Display
Dot matrix liquid crystal
Alarm method
Sound alarm is greater than 90dB; wide-angle red LED flashing alarm, clearly visible from a long distance
Operating Temperature
-20~55℃
Environment humidity
< 95% RH (non-condensing)
Detection Accuracy
±5%F.S
Protection class
IP6
Explosion-proof sign
Ex ia Ⅱ C T4 Ga
Power
Rechargeable lithium-ion battery or alkalinity battery (normal working time up to 24h; lithium battery Charging time does not exceed 3h)
Shell material
TPE/ABS double layer one-time molding shell
Dimensions
152*82*14mm
Weight
400g
Detection gas
CO、H2S、O2、EX
EX-range
EX: 1000% LEL; Resolution: 1% LEL
O2-range
0 ~ 30% VoL
CO-range
CO: 0~1000ppm; Resolution: 1ppm
H2S-range
0~100ppm
H2S-Resolution
1ppm
O2-Resolution
0.1% vol
GC60S-4
Intelligent 4 in 1 Gas Detector

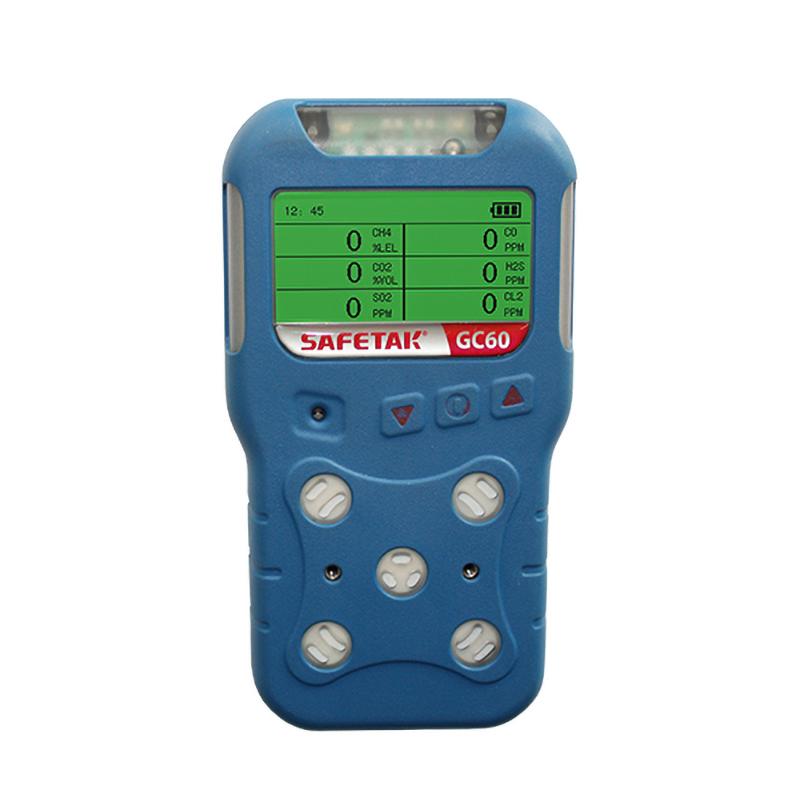

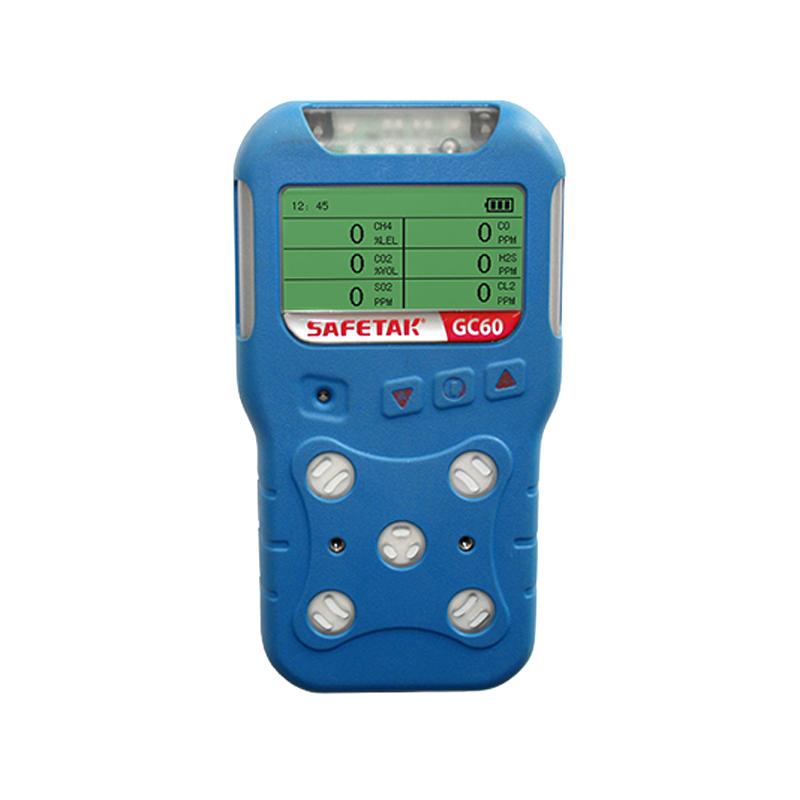

SAFETAK GC60S-4 Intelligent 4 in 1 Gas Detector Picture

Softel GC60S-4 Intelligent 4-in-1 Gas Detector Details Figure 1

Features

Operation interface

Full Chinese menu interface (built-in multiple languages, English menu is optional), can display all sensor values ​​at the same time, with automatic induction to adjust the display direction function

SOFT unique technology

Intrinsically Safe Combustible Gas Detector - This product is equipped with Soft's unique intrinsically safe catalytic combustion sensor

Super Intelligent Recognition Technology

Super intelligent sensor identification technology, five sensor installation positions for users to replace any gas type sensor module at will

Fall alarm function

With a fall alarm function, it can send an alarm after the carrier accidentally falls to the ground

Super high protection level

Protection grade IP67, shell adopts TPE/ABS double-layer one-time molding technology, good waterproof, dustproof, anti-electromagnetic interference, anti-drop performance

high quality sensor

The sensor selects the international famous brand to ensure the high quality of the product

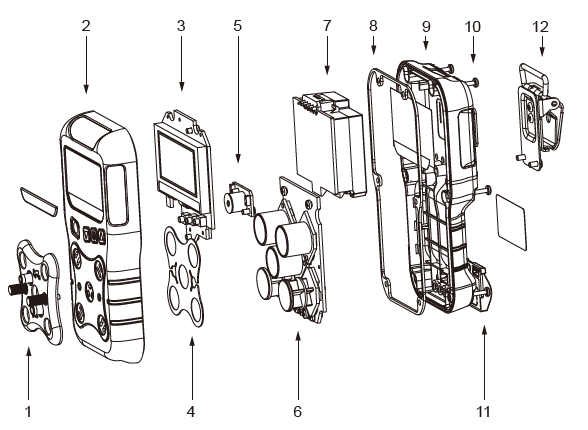

product structure

Details of Soford GC60S-4 Intelligent Four-in-one Gas Detector 2

1. Calibration cap

2. Front cover of Detector

3. Display board

4. Waterproof and breathable membrane

5. Buzzer

6. Motherboard

7. Battery box

8. Gasket

9. The back cover of the Detector

10. Fixing screws for the back cover of the Tester

11. Charging plug

12. Alligator Clips

Specifications and certifications met

It complies with the national standard GB3836-2010 "Electrical Equipment for Explosive Gas Atmospheres" and has obtained the explosion-proof certificate.

It meets the national standard of GB12358-2006 "General Technical Requirements for Gas Detection and Alarm Instruments in Working Environment", and has obtained the type approval certificate for measuring instruments.

Application

GC60-4 is widely used in petroleum, chemical industry, metallurgy, electric power, city gas, fire rescue, plastic industry, shipbuilding, pharmaceuticals, hazardous chemical treatment, limited space operation, municipal construction and other industries
