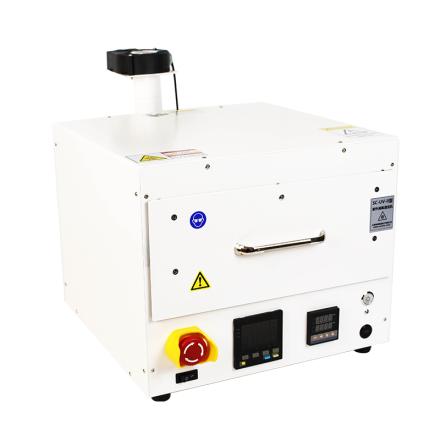

Setcas SC-UV-II Ultraviolet ozone cleaning machine (with heating function) Specifications
Search
Brand：Setcas
Model：SC-UV-II
Name：Ultraviolet ozone cleaning machine (with heating function)
Specifications
| material | The Interior is made of stainless steel, which is resistant to acid and alkali and corrosion |
| structure | Drawer type sample table, simple and convenient to take and put the substrate |
| gas path | Reserve the air inlet interface to enrich the cleaning types of equipment |
| protect | Drawer opening and closing work interlock with UV lamp to avoid UV damage |
| Timer | Button timer, digital countdown, intuitive |
| operation | The cleaning process can be terminated manually at any time |
| Accessories | Optional ozone neutralizer to avoid ozone damage |
| Cleaning band | 185Nm and 254nm |
| Average light intensity of 3-5mm from UV lamp | 28~32mW/cm² |
| lamp | Double wave low pressure mercury lamp X2 |
| Lamp power | 300W |
| Irradiated area | 300mm × 300mm (abutment size 305 × 315mm) |
| Adjustable irradiation distance | 5~60mm |
| Timer working interval | 0~99min99s with automatic countdown function |
| Inlet and outlet | Air inlet: φ8mm, air outlet: φ25mm |
| Equipment appearance size | 430mm× 380mm×320mm |
| Dimensions of ozone neutralizers | 580mm×380mm×420mm |
| Product Weight | 26KG |
| Temperature range | Room temperature -450 ℃ |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
