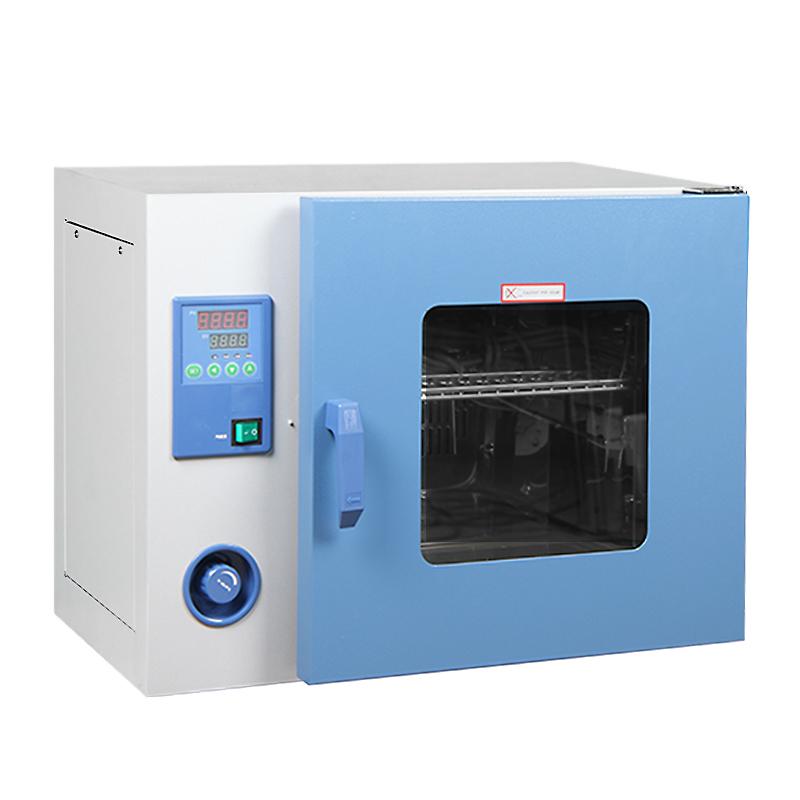

YIHENG DHG-9023A Small Forced Air Drying Oven input power is 850W

DHG-9023A

Drying Oven

With moderate input power (850W), reliable temperature control (RT + 10~200 ℃， +/- 1 ℃ Temperature fluctuation, 0.1 ℃ temperature resolution) and Temperature uniformity （ +/- 3%), Interior size is 340 * 325 * 320mm, equipped with 2 shelves. With flexible Timer Range (1~ 5999 minutes), net weight 27kg, gross weight 30Kg, dimensions are 620 * 540 * 490mm, packing size is 780 * 650 * 580mm.

Introduction of DHG-9023A small Forced Air Drying Oven

Yiheng DHG-9023A small Forced Air Drying Oven is a laboratory Forced Air Drying Oven with an input power of 850W. It adopts a microcomputer PID temperature controller and has a timing function to ensure the accuracy and reliability of operation. The control temperature range of DHG-9023A small Forced Air Drying Oven is RT+10~220℃, and the input power is 850W.

Applications

DHG-9023A small Forced Air Drying Oven is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.

Features and advantages

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.

2. Adopt microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control.

3. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room.

4. DHG-9023A small Forced Air Drying Oven adopts a new type of synthetic silicon sealing strip, which can run at high temperature for a long time, has a long service life and is easy to replace.

5. The air intake and exhaust volume in the box can be adjusted from the temperature control panel.

6. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

7. It can be equipped with a printer or RS485 interface for connecting to a printer or a computer, and can record changes . (optional)

Optional

1. Multi-segment programmable temperature controller

2. Independent temperature limit controller

3. RS485 interface and communication software

4. Embedded printer

5. Diameter Ф25mm test hole

6. U disk data storage

7. Wireless alarm system (SMS alarm system)

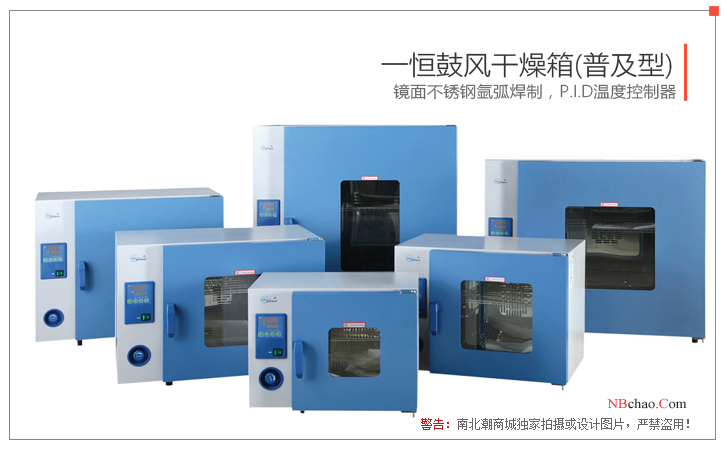

Pictures

Packing list： host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
