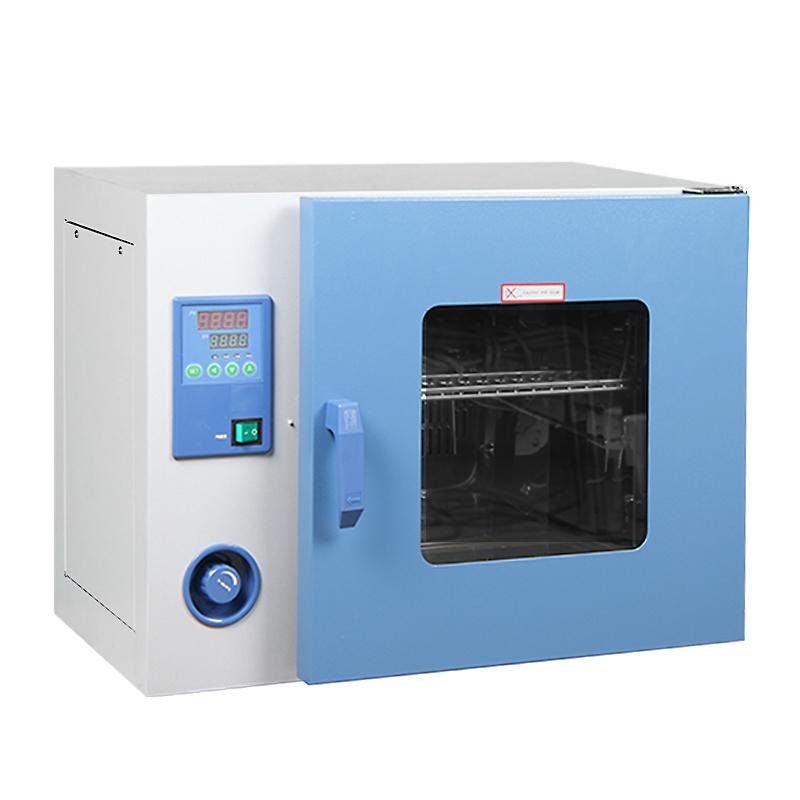

YIHENG DHG-9015A Forced Air Drying Oven power 650W

DHG-9015A

Drying Oven

With reliable temperature control (RT + 10~300 ℃， +/- 1.0 ℃ Temperature fluctuation, 0.1 ℃ temperature resolution) and Temperature uniformity （ +/- 3%), moderate volume (16L) and Interior size (250 * 260 * 250mm), input power is 650W, equipped with 2 shelves. Suitable for Operating Environment temperature of 5~ 40 ℃, dimensions are 530 * 480 * 420mm, with flexible Timer Range (1~ 5999 minutes).

Introduction of DHG-9015A Forced Air Drying Oven

Yiheng DHG-9015A Forced Air Drying Oven is a popular Forced Air Drying Oven made of mirror stainless steel argon arc welding. The input power of DHG-9015A Forced Air Drying Oven is 650W, the volume is 16L, and it is equipped with 2 object rack. DHG-9015A Forced Air Drying Oven can be purchased separately with multi-segment programmable LCD temperature controller to achieve more stable and accurate temperature control.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.

2. Adopt a microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

3. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room.

4. Using a new type of synthetic silicon sealing strip, it can run at high temperature for a long time, has a long service life and is easy to replace.

5. DHG-9015A Forced Air Drying Oven can adjust the air intake and exhaust volume in the oven from the temperature control panel.

6. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

7. It can be equipped with a printer or RS485 interface, used to connect a printer or computer, and can record the change of temperature parameters. (optional)

Optional

1. Multi-segment programmable temperature controller

2. Independent temperature limit controller

3. RS485 interface and communication software

4. Embedded printer

5. Diameter Ф25mm test hole

6. U disk data storage

7. Wireless alarm system (SMS alarm system)

Pictures

Packing list： host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
