RDS #49 Applicator rod WFT 112.0 μm Length 400mm

SE
0.1 μm high accuracy quantitative coating film, coating, film thickness control is 112.0 microns, formed process cleaning is simple and not easy to block pigment.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 49# 1/4“ Applicator rod 1/4 "SPEC

RDS 49# 1/4“ Applicator rod 1/4 "Details

RDS 49# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB000040
Production process
formed
WFT
112.0μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
49# 1/4“
Applicator rod 1/4 "
0.1 μm high accuracy quantitative coating film, coating, film thickness control is 112.0 microns, formed process cleaning is simple and not easy to block pigment.

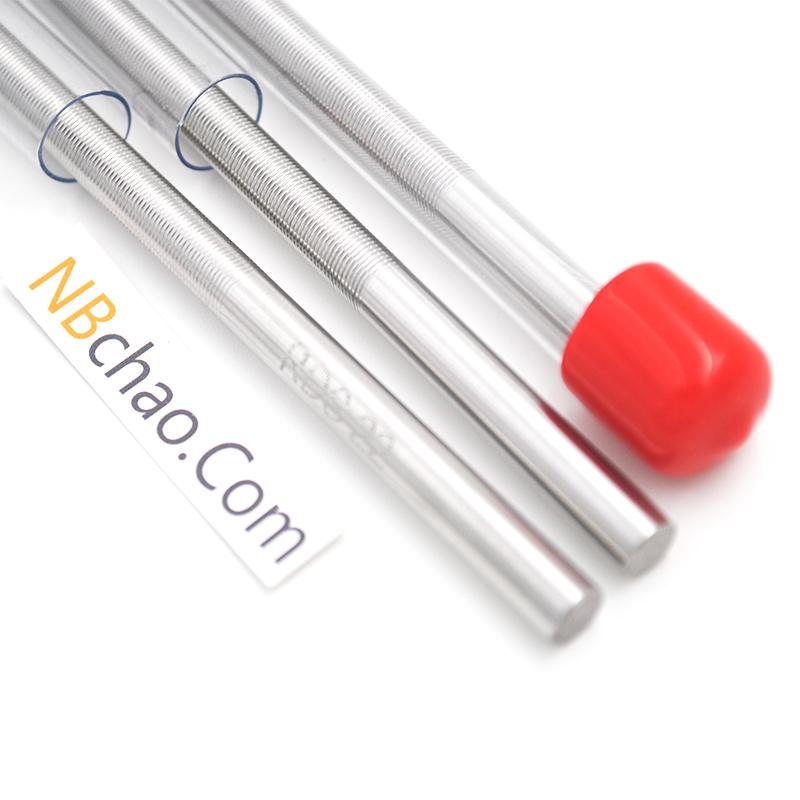

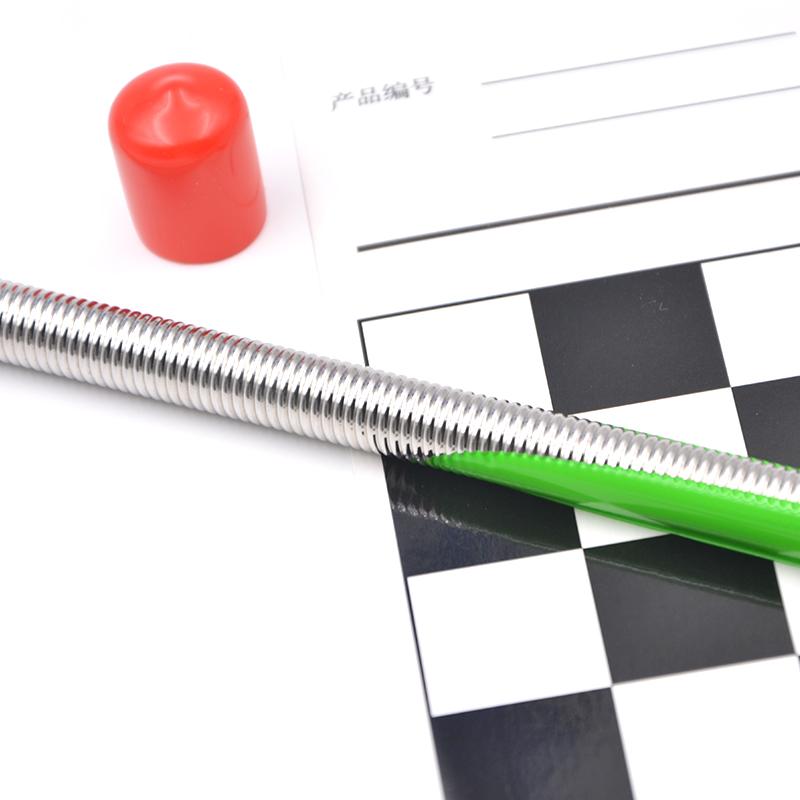

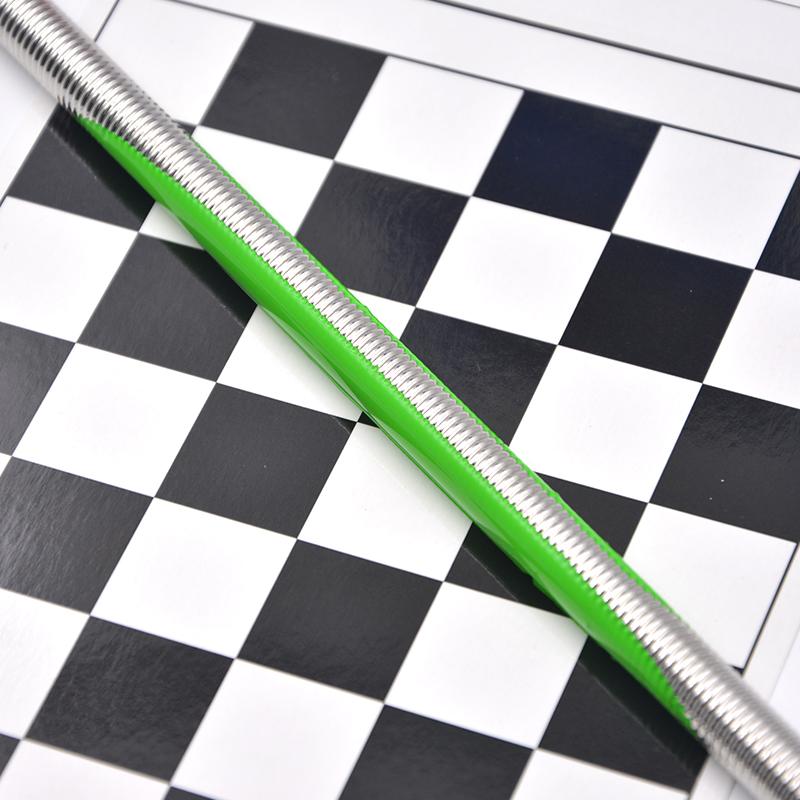

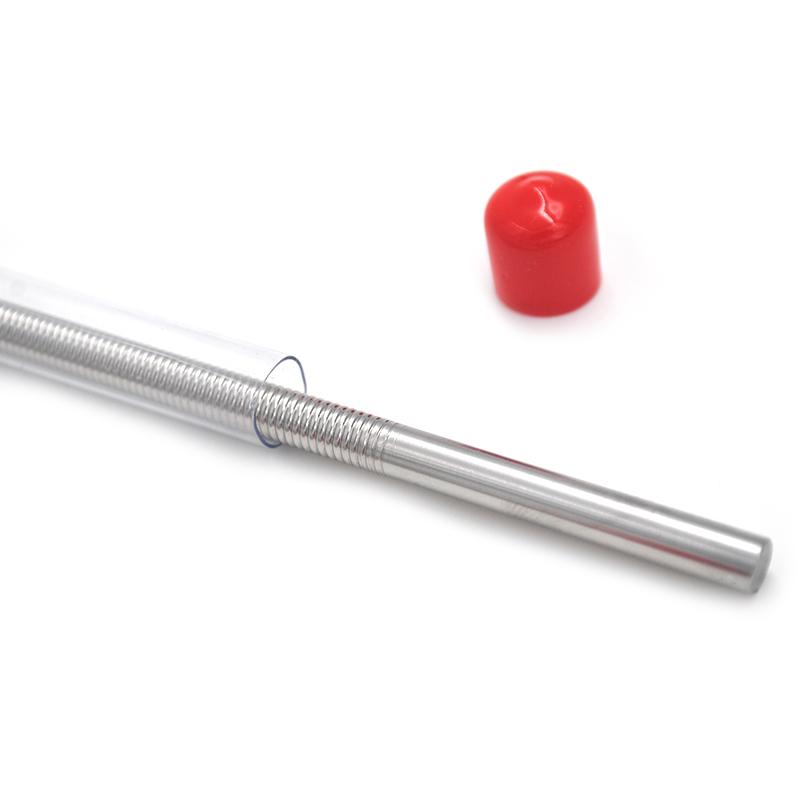

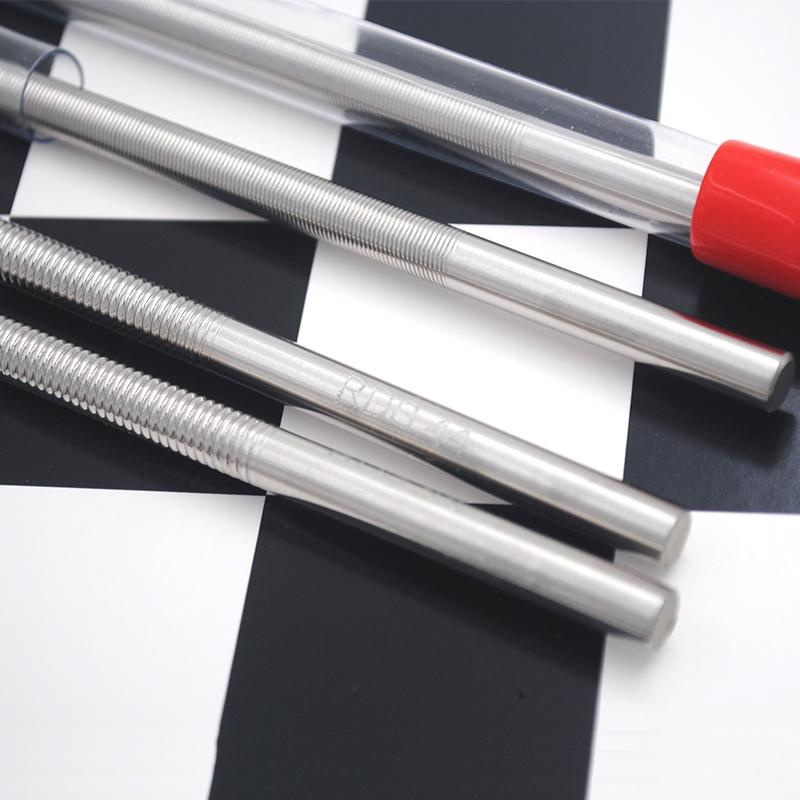

RDS #49 Applicator rod WFT 112.0 μm Length 400mm Picture

Product description

RDS#49 wire rod coater is a forming coating rod (also known as extrusion coating rod), the thickness of the coating film is 112.0μm, and the extrusion coating rod of other brands knows the coating film The accuracy of the coating is basically 1 micron, and some users like the advantages of easy cleaning and no clogging of the forming coating rod, but the requirements for coating precision are indeed relatively high, so it is more tangled. The RDS forming coating rod inherits the advantages of the wire-wound coating rod with a coating film accuracy of 0.1 micron, which makes it able to solve the problems of users, and is also more suitable for high viscosity experiments.

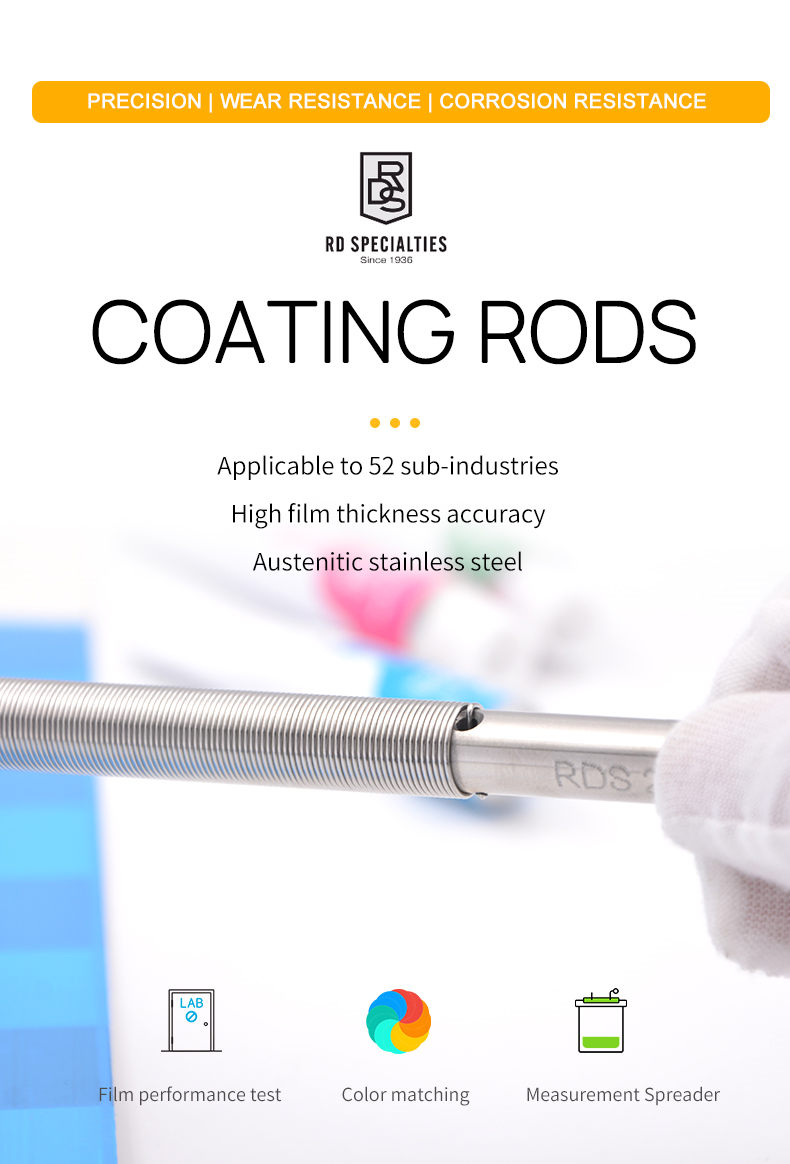

RDS coating Rods Figure 1

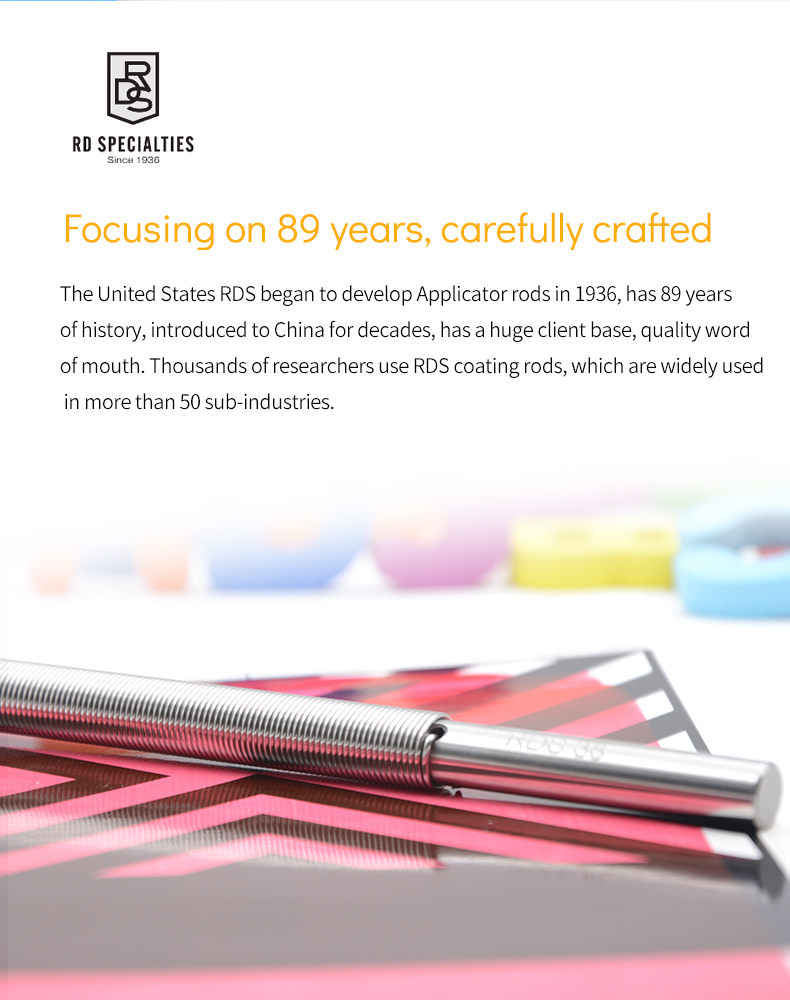

RDS coating Rods Figure 2

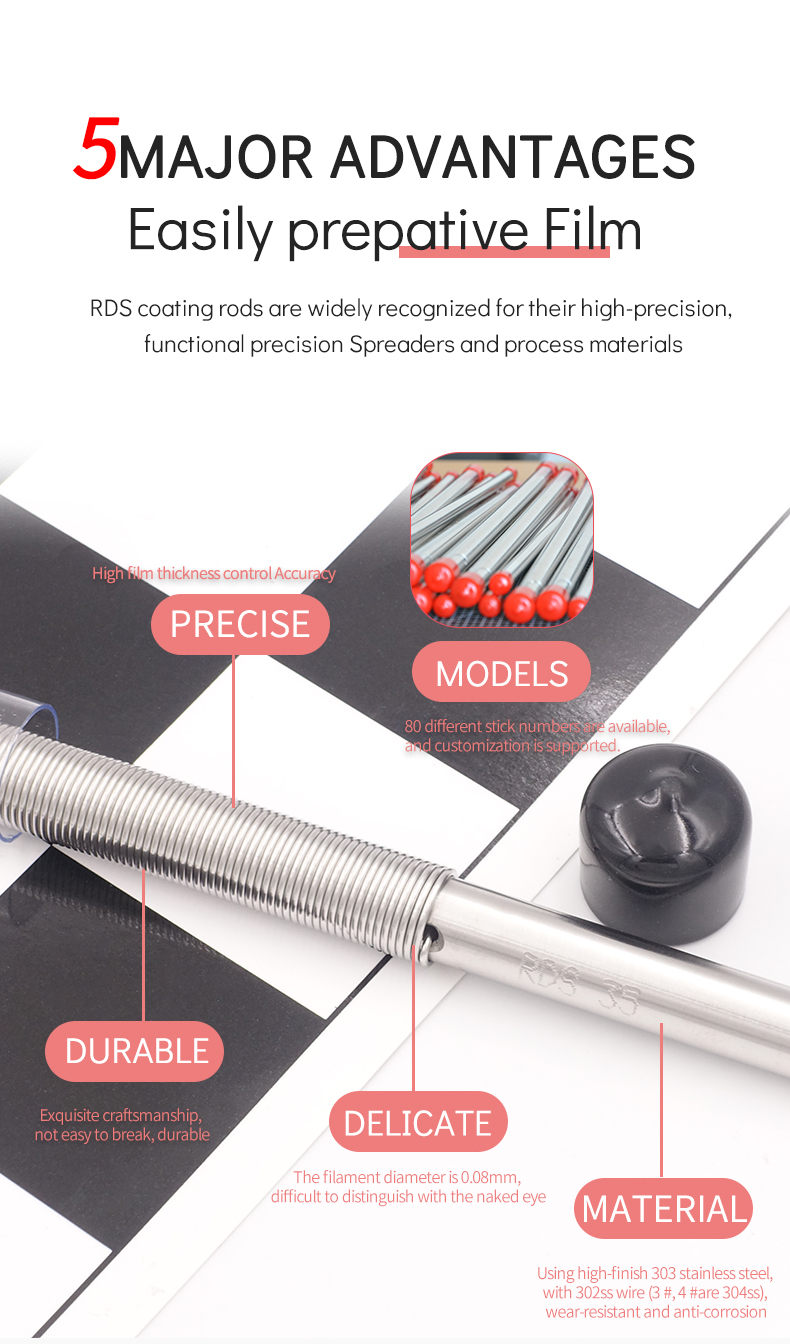

RDS coating Rods Figure 3

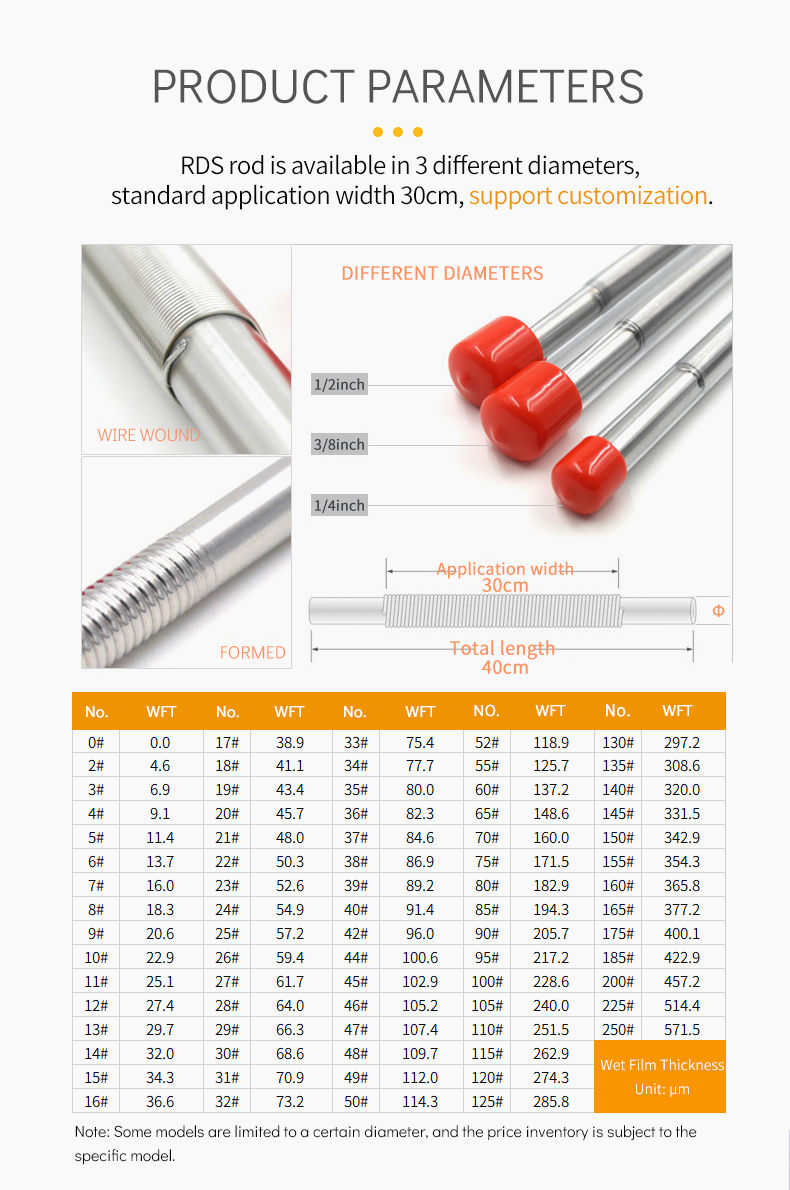

RDS coating Rods Figure 4

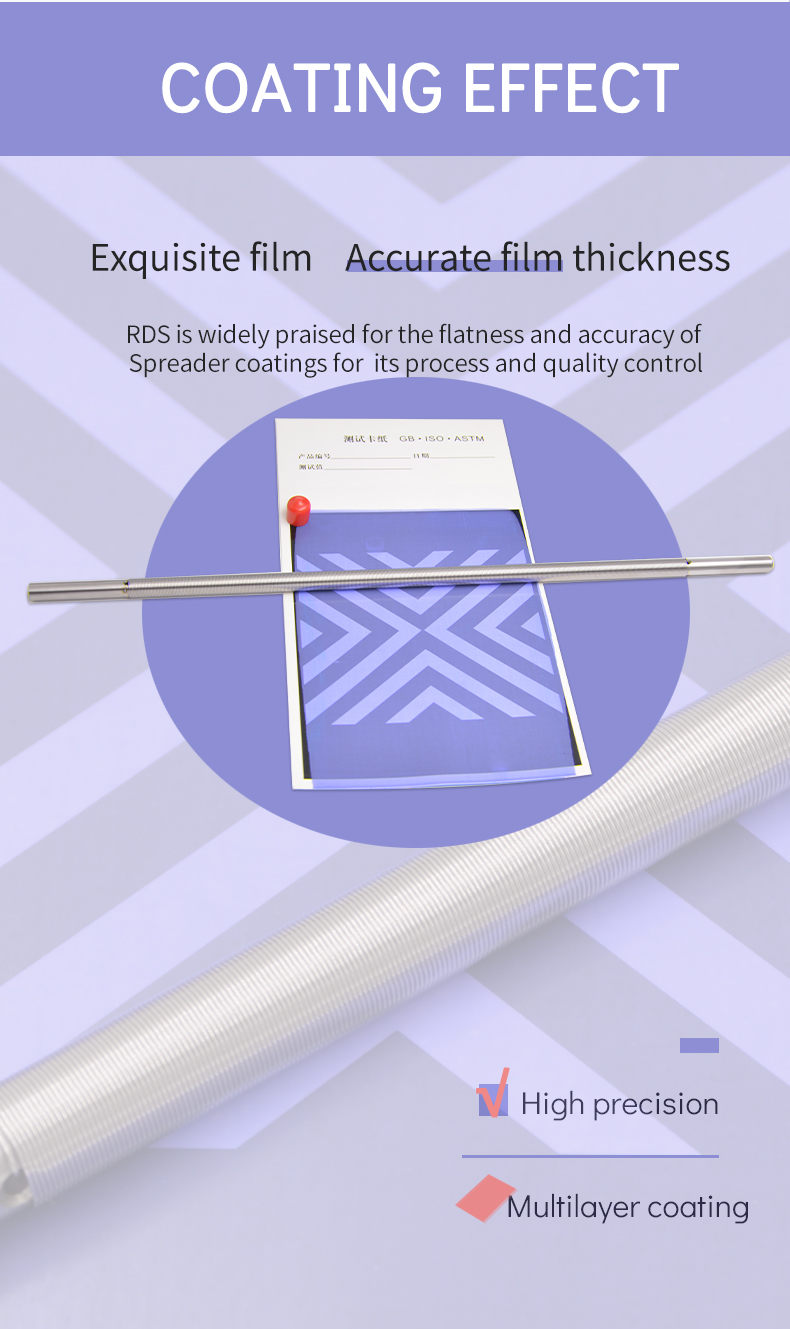

RDS coating Rods Figure 5

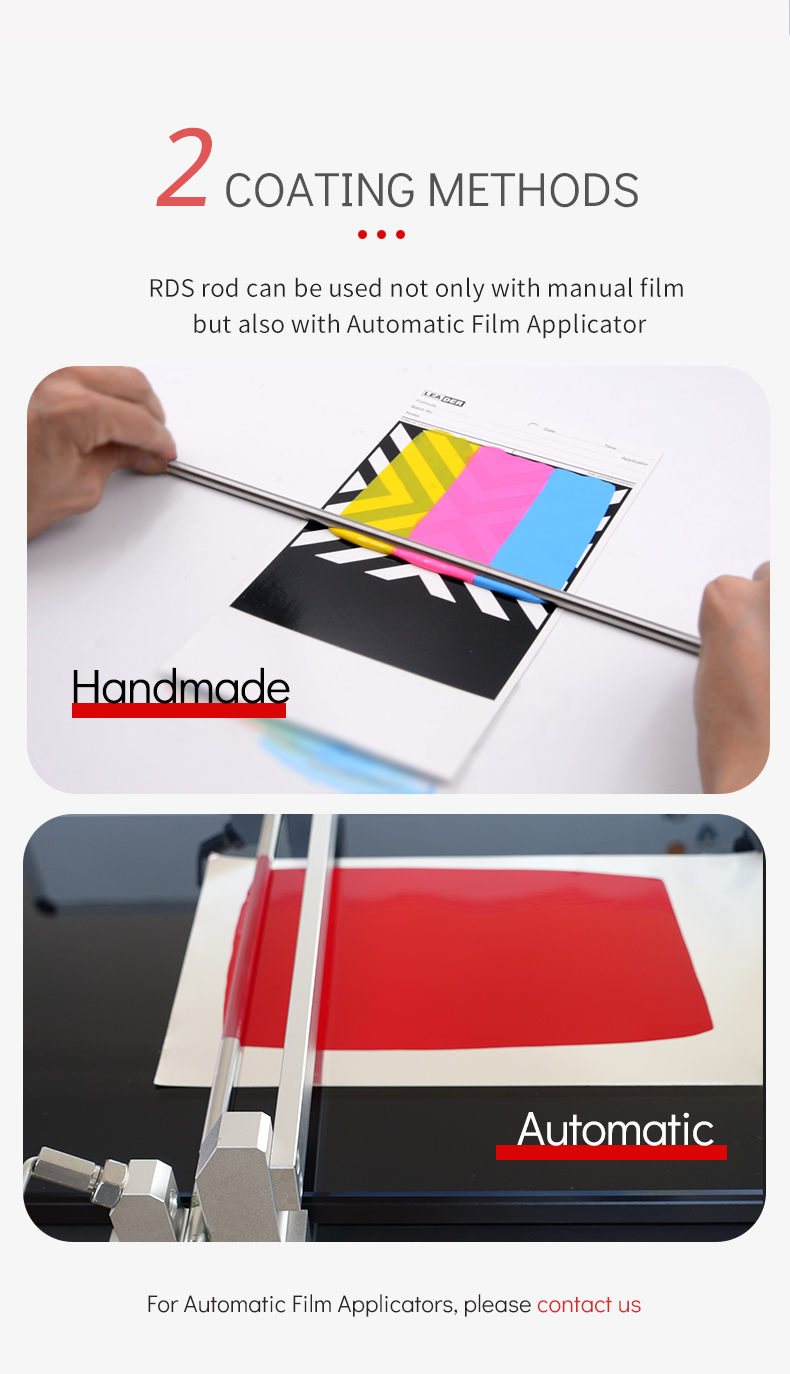

RDS coating Rods Figure 6

RDS coating Rods Figure 7

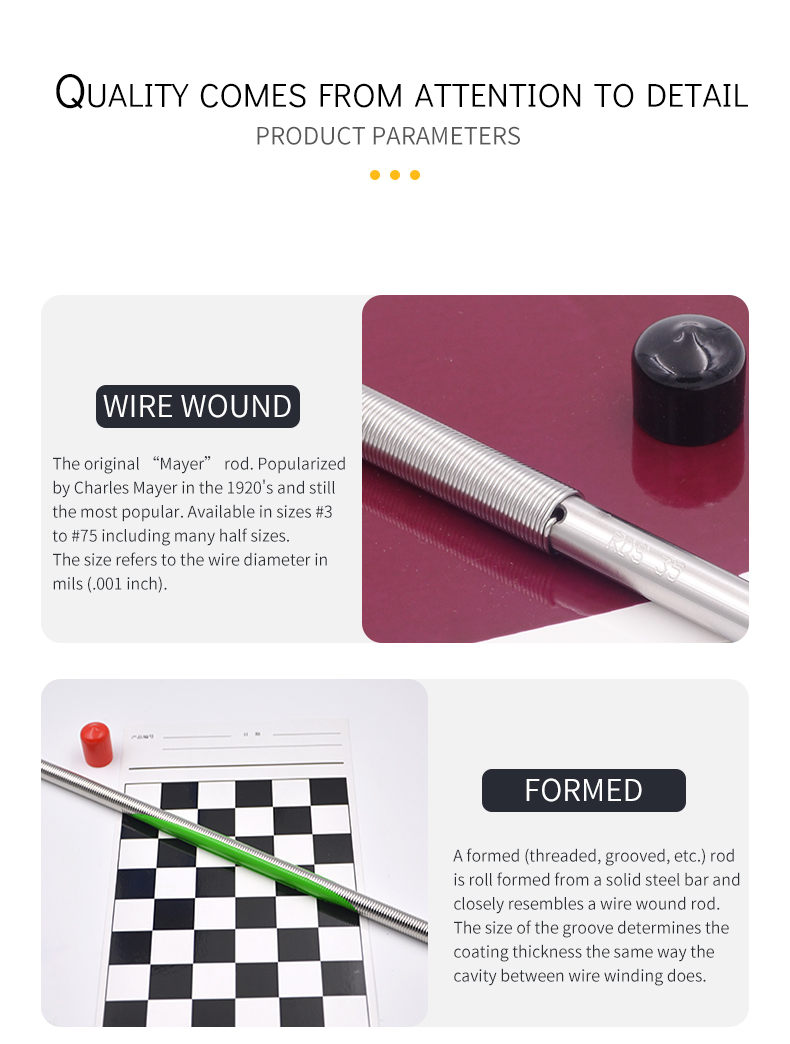

RDS coating Rods Figure 8

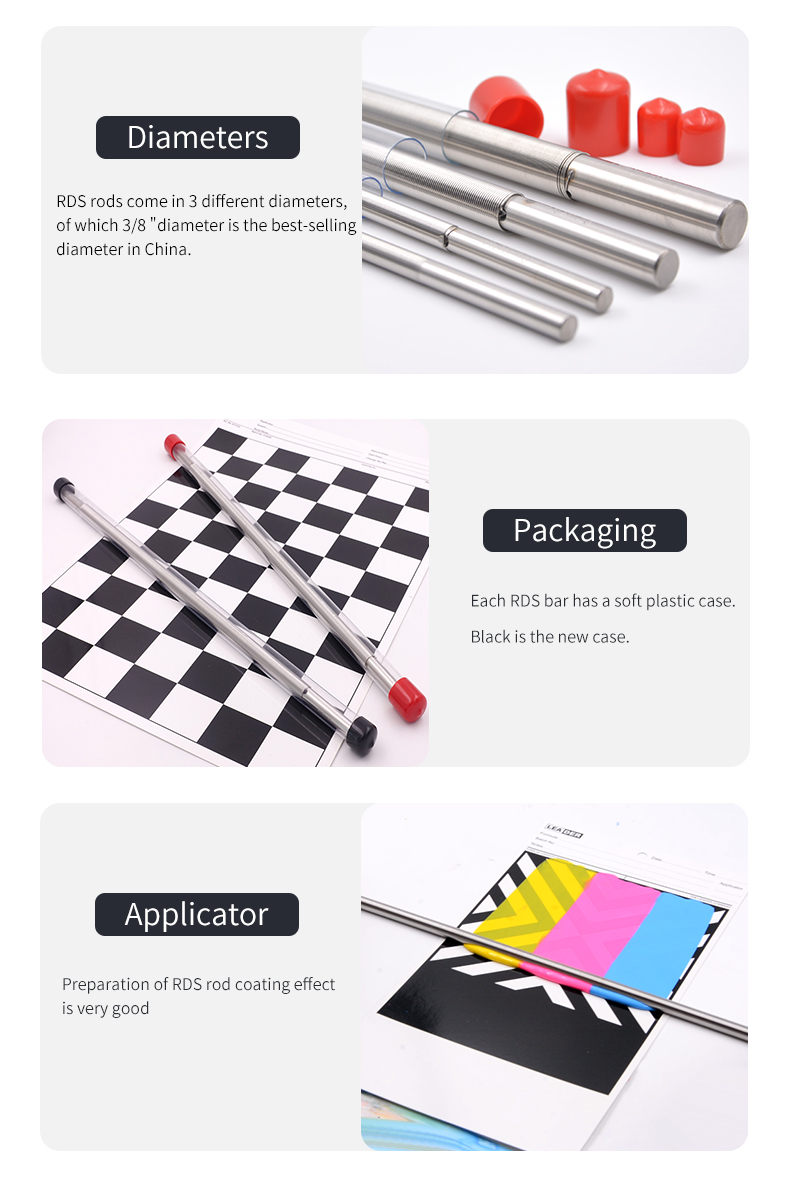

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QWhat is the difference between this Spreader stick and a wire stick?
A You should be talking about the difference between extrusion and winding, right? The film effect is the same. For detailed differences, please refer to the NBchao knowledge article.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan all extruded wire rods be used for inspection in the ASTMD823 standard?
A Not necessarily, but this 49 #1/4 "extrusion rod can be considered.
