CHINA Programmable Temperature Cycling Test Chamber NBC-CDW-150M -40 ℃/150L

SE
Temperature control -40 ℃~ 150 ℃, volume 150L, USU #304 mirror stainless steel inner box, LCD touch screen, programmable, display settings and actual operation Linear dispersion, French compressor refrigeration system.
Contact
Details SPEC VIDEO OI
Similar products

HuiTai NBC-CDW-150M Temperature Cycling Test ChamberSPEC

HuiTai NBC-CDW-150M Temperature Cycling Test ChamberDetails

HuiTai NBC-CDW-150M Temperature Cycling Test ChamberPacking list

SKU
NB040012
Temperature range
-40~150℃
Temperature fluctuation
±0.5℃
Temperature Uniformity
±1.5℃
Power
3f 380V
Interior size
500*500*600mm
Dimensions
1030*1130*1550mm
Interior Volume
150L
Cooling rate
Average 1 ℃/min, nonlinear no-load, non-standard specifications can be customized as required
Heating rate
3℃/min
Inner chamber material
SUS #304 Mirror Stainless Steel (1MM thick)
Enclosure Material
Cold rolled steel spray treatment or gauze surface stainless steel (thickness 1.2MM)
Refrigeration system
Using original French Taikang compressor, environmentally friendly refrigerants R404A and R23A, fin type condenser with heat dissipation evaporator, evaporator: fin type multi-stage automatic load Capacity adjustment
Controller system
Using original TEM series Control system such as TEMI880 color Chinese and English touch condenser or TEMI300 English button Controller
Safety Devices
No fuse switch, compressor high pressure, overheating, overcurrent protection, over temperature protection, fan overload protection, fuse, dry burn protector, water shortage alarm protection
display
LCD touch panel
NBC-CDW-150M
Temperature Cycling Test Chamber
Temperature control -40 ℃~ 150 ℃, volume 150L, USU #304 mirror stainless steel inner box, LCD touch screen, programmable, display settings and actual operation Linear dispersion, French compressor refrigeration system.

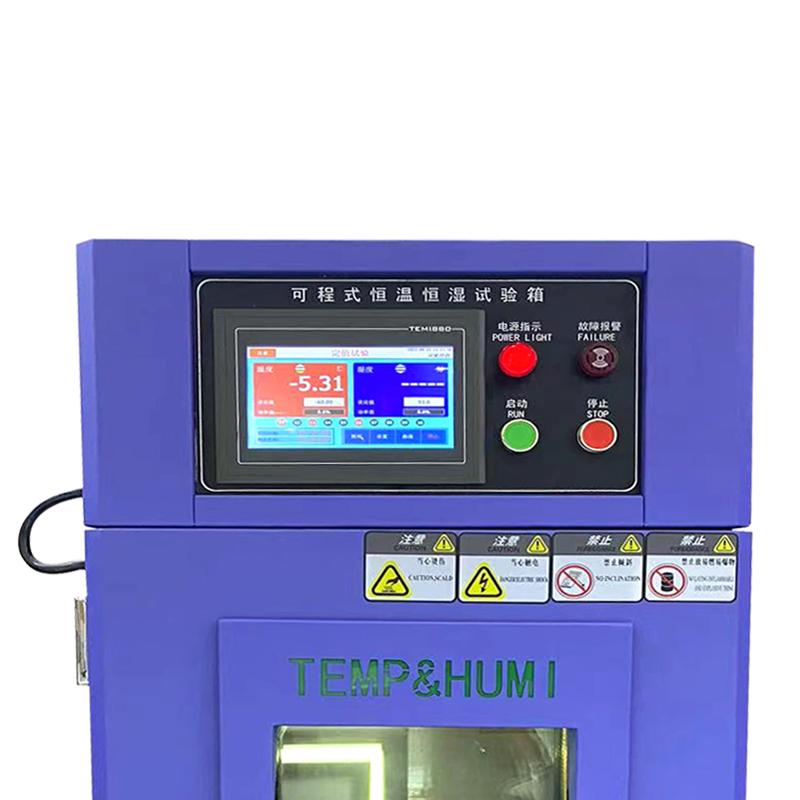

CHINA Programmable Temperature Cycling Test Chamber NBC-CDW-150M -40 ℃/150L Picture

Applications

High-low Temperature Test Chamber, also known as environmental testing machine, can accurately simulate complex natural environments such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity, etc. It is suitable for electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, Chemical, building materials, research institutes, inspection and quarantine bureaus, universities and other industry units for quality control testing.

meet the standard

GB/T 10589-2008 technical conditions for low Temperature Test Chambers GB/T10592-2008 technical conditions for high-low Temperature Test Chambers

GB/T 2423.1-2001 (IEC68-2-1) low temperature test Aa, Ab GB/T 2423.2-2001 (IEC68-2-2) high temperature test B

GB/T 2423.34-2005, MIL-SID883C method 1004.2

Touch Controller Instructions

1. LCD touch panel, screen conversation input data, temperature and humidity can be programmed at the same time.

2. It can display the curve, display the set value curve and the actual operation curve .

3. Programmable, the program group can reach 120 groups .

4. Chinese and English interface can be switched .

5. It has date and time adjustment, scheduled start, shutdown function and screen lock (LOCK) function.


FAQ
QExcuse me 150L -40-150 °, high and low temperature, for lamp testing, it needs to be powered on for testing, can it be used?
A Yes, there is a power-on port on the left side of the machine, which can be turned on when needed. If the power is turned on outside, you can test it while powering on.
QDoes the low/high temperature test chamber meet the GB/T10589 standard?
A In line with.
