China

YIHENG DHG-9070 Laboratory Forced Air Drying Oven Power is 1550W

SE
With reliable temperature control (RT + 1 0 2 0 ℃， +/- 1.0 ℃ Temperature Fluctuation, 0.1 ℃ Temperature resolution) and Temperature uniformity （ +/- 3%), moderate volume (80L), input Power is 1550W, equipped with 2 shelves, with flexible Timer Range (15999 minutes). Suitable for working Environmental temperature from 5 to 40 ℃, Net weight 49kg, gross weight 60Kg.
$489.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

YiHeng DHG-9070 Drying OvenSPEC

YiHeng DHG-9070 Drying OvenDetails

YiHeng DHG-9070 Drying OvenPacking list

SKU
NB004004
Power
AC 220V 50Hz
Temperature range
RT+10~200°C
Temperature fluctuation
±1.0℃
Temperature Resolution
0.1℃
Temperature Uniformity
±3%
Environment temperature
5~40℃
Input power
1550W
Volume
80L
Interior size
450*400*450mm
Dimensions
740*618*630mm
Shelf (std.)
2pcs
Timer
1~5999min
Net Weight
49kg
Gross Weight
60Kg
Packing size
830*690*780mm
DHG-9070
Drying Oven
With reliable temperature control (RT + 1 0 2 0 ℃， +/- 1.0 ℃ Temperature Fluctuation, 0.1 ℃ Temperature resolution) and Temperature uniformity （ +/- 3%), moderate volume (80L), input Power is 1550W, equipped with 2 shelves, with flexible Timer Range (15999 minutes). Suitable for working Environmental temperature from 5 to 40 ℃, Net weight 49kg, gross weight 60Kg.

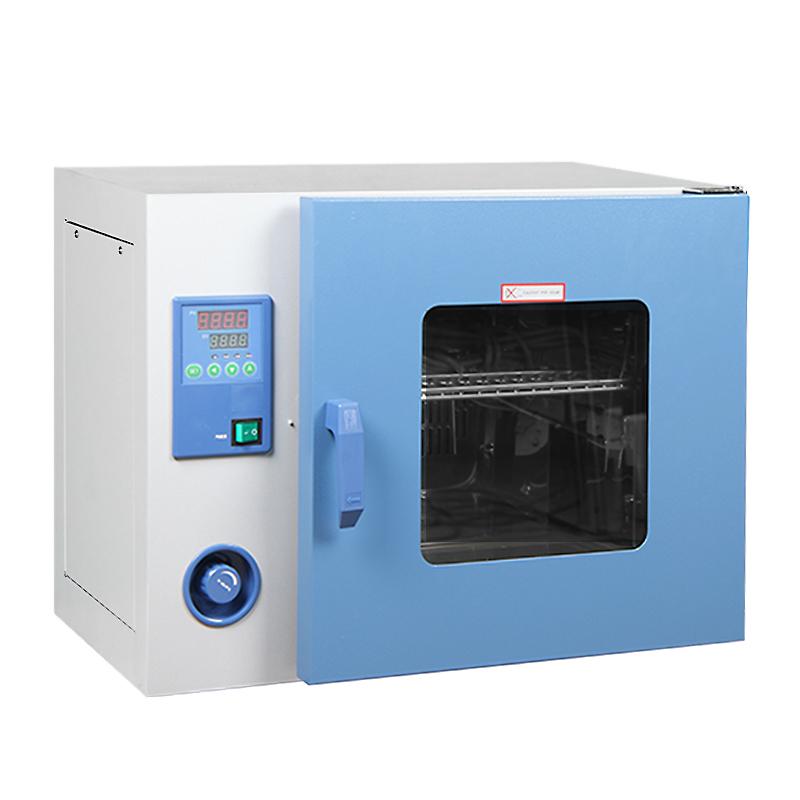

YIHENG DHG-9070 Laboratory Forced Air Drying Oven Power is 1550W Picture

Introduction of DHG-9070 laboratory Forced Air Drying Oven

Yiheng DHG-9070 laboratory Forced Air Drying Oven is a desktop Forced Air Drying Oven dedicated to industrial and mining enterprises, laboratories, and scientific research units. The input power of DHG-9070 laboratory Forced Air Drying Oven is 1550W, and the volume is 80L. It has two Load rack. DHG-9070 can realize temperature control from 10 to 200°C.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.

2. Adopt a microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

3. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room.

4. The DHG9070 laboratory Forced Air Drying Oven adopts a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life and is easy to replace.

5. The air intake and exhaust volume in the box can be adjusted from the temperature control panel.

6. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

7. It can be equipped with a printer or RS485 interface, used to connect a printer or computer, and can record the change of temperature parameters. (optional)

Optional

1. Multi-segment programmable temperature controller

2. Independent temperature limit controller

3. RS485 interface and communication software

4. Embedded printer

5. Diameter Ф25mm test hole

6. U disk data storage

7. Wireless alarm system (SMS alarm system)

Pictures

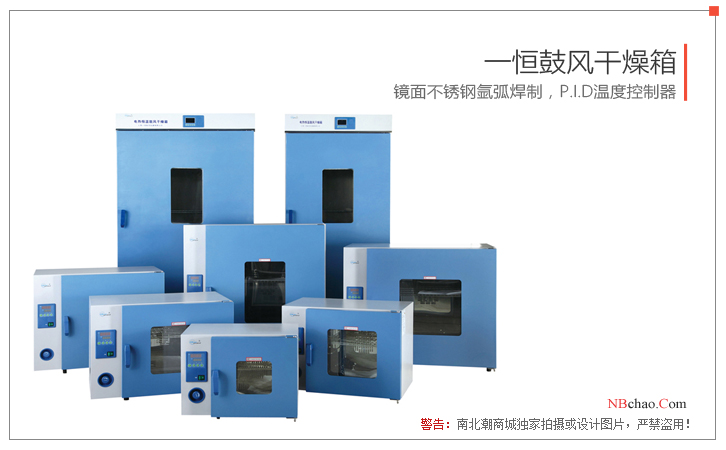

Real shot of Yiheng DHG9070 laboratory Forced Air Drying Oven

FAQ
QHello, I would like to ask if this oven needs a special socket? Then confirm again. This is an ordinary socket, right? Don't need a high-power special socket?
A With 10A
QTemperature control at 120 ℃, size 80L up and down drying oven is recommended
A Can meet, DHG-9070 drying oven Temperature range 10~ 200 ℃, volume 80L.
QHello, can this oven temperature range be made, room temperature + 10-250 ℃?
A Hello, the models without A are room temperature + 10-200 ° C; and the models with A are room temperature + 10-250 ° C. Because the belt A is 304 stainless steel, the temperature of the 9000 series is 250 degrees, the 9005 series is 300 degrees, and the galvanized sheet without A is up to 200 degrees.
QWhat is the uniformity of this drying oven DHG-9070?
A Hello, the uniformity of DHG-9070 is ± 3%, Temperature fluctuation is ± 1 ℃.
QWhat are the main differences between a blast drying oven and a precision blast drying oven?
A Hello, the main difference between the blast drying oven and the precision blast drying oven is that the uniformity of the blast drying oven is 3.5%, which is customized for special requirements. The uniformity of the precision blast drying oven is 2.5% (the national standard is 2.5%).
QThe difference between blast drying oven and aging test chamber
A Hello, the main difference is that 1. There is a turntable in the aging test box, but not the blast drying box. 2. The aging test box has ventilation, but the blast drying box does not.
QIs there a JB/T5520 standard drying oven?
A This YIHENG drying oven is fine!
QWhat is the difference between Shanghai Yiheng oven DHG9070 and DHG9070A?
A Hello, the one with A is a stainless steel liner; the one without A is a galvanized liner.
